Configuring a Basic Animation’s Interpolation Values

The fromValue, byValue and toValue properties of the CABasicAnimation class define the values being interpolated between. All are optional, and no more than two should be non-nil. The object type that the property is set to should match the type of the property being animated.

The interpolation values are used as follows:

• Both fromValue and toValue are non-nil. Interpolates between fromValue and toValue.

• fromValue and byValue are non-nil. Interpolates between fromValue and (fromValue + byValue).

• byValue and toValue are non-nil. Interpolates between (toValue - byValue) and toValue.

• fromValue is non-nil. Interpolates between fromValue and the current presentation value of the property.

• toValue is non-nil. Interpolates between the current value of keyPath in the target layer’s presentation layer and toValue.

• byValue is non-nil. Interpolates between the current value of keyPath in the target layer’s presentation layer and that value plus byValue.

• All properties are nil. Interpolates between the previous value of keyPath in the target layer’s presentation layer and the current value of keyPath in the target layer’s presentation layer.

An Example Basic Animation

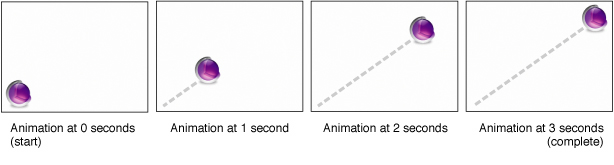

Listing 1 shows a code fragment that implements an explicit animation equivalent to the animation in Figure 1.

Listing 1  CABasicAnimation code fragment

CABasicAnimation *theAnimation;

// create the animation object, specifying the position property as the key path

// the key path is relative to the target animation object (in this case a CALayer)

theAnimation=[CABasicAnimation animationWithKeyPath:@"position"];

// set the fromValue and toValue to the appropriate points

theAnimation.fromValue=[NSValue valueWithPoint:NSMakePoint(74.0,74.0)];

theAnimation.toValue=[NSValue valueWithPoint:NSMakePoint(566.0,406.0)];

// set the duration to 3.0 seconds

theAnimation.duration=3.0;

// set a custom timing function

theAnimation.timingFunction=[CAMediaTimingFunction functionWithControlPoints:0.25f :0.1f :0.25f :1.0f];

Providing Keyframe Values

Keyframe values are specified using one of two properties: a Core Graphics path (the path property) or an array of objects (the values property).

A Core Graphics path is suitable for animating a layer’s anchorPoint or position properties, that is, properties that are CGPoints. Each point in the path, except for moveto points, defines a single keyframe segment for the purpose of timing and interpolation. If the path property is specified, the values property is ignored.

By default, as a layer is animated along a CGPath it maintains the rotation to which it has been set. Setting the rotationMode property to kCAAnimationRotateAuto or kCAAnimationRotateAutoReverse causes the layer to rotate to match the path tangent.

Providing an array of objects to the values property allows you to animate any type of layer property. For example:

• Provide an array of CGImage objects and set the animation key path to the content property of a layer. This causes the content of the layer to animate through the provided images.

• Provide an array of CGRects (wrapped as objects) and set the animation key path to the frame property of a layer. This causes the frame of the layer to iterate through the provided rectangles.

• Provide an array of CATransform3D matrices (again, wrapped as objects) and set the animation key path to the transform property. This causes each transform matrix to be applied to the layer’s transform property in turn.

Keyframe Timing and Pacing Extensions

Keyframe animation requires a more complex timing and pacing model than that of a basic animation.

The inherited timingFunction property is ignored. Instead you can pass an optional array of CAMediaTimingFunction instances in the timingFunctions property. Each timing function describes the pacing of one keyframe to keyframe segment.

While the inherited duration property is valid for CAKeyframeAnimation, you can attain more subtle control of timing by using the keyTimes property.

The keyTimes property specifies an array of NSNumber objects that define the duration of each keyframe segment. Each value in the array is a floating point number between 0.0 and 1.0 and corresponds to one element in the values array. Each element in the keyTimes array defines the duration of the corresponding keyframe value as a fraction of the total duration of the animation. Each element value must be greater than, or equal to, the previous value.

The appropriate values for the keyTimes array are dependent on the calculationMode property.

• If the calculationMode is set to kCAAnimationLinear, the first value in the array must be 0.0 and the last value must be 1.0. Values are interpolated between the specified keytimes.

• If the calculationMode is set to kCAAnimationDiscrete, the first value in the array must be 0.0.

• If the calculationMode is set to kCAAnimationPaced, the keyTimes array is ignored.

An Example Keyframe Animation

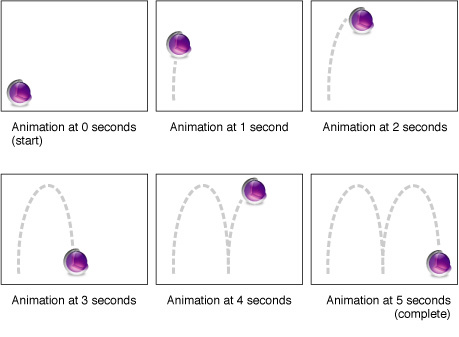

Listing 2 shows a code fragment that implements an explicit animation equivalent to the animation in Figure 2.

Listing 2  CAKeyframeAnimation code fragment

// create a CGPath that implements two arcs (a bounce)

CGMutablePathRef thePath = CGPathCreateMutable();

CGPathMoveToPoint(thePath,NULL,74.0,74.0);

CGPathAddCurveToPoint(thePath,NULL,74.0,500.0,

                                   320.0,500.0,

                                   320.0,74.0);

CGPathAddCurveToPoint(thePath,NULL,320.0,500.0,

                                   566.0,500.0,

                                   566.0,74.0);

CAKeyframeAnimation * theAnimation;

// create the animation object, specifying the position property as the key path

// the key path is relative to the target animation object (in this case a CALayer)

theAnimation=[CAKeyframeAnimation animationWithKeyPath:@"position"];

theAnimation.path=thePath;

// set the duration to 5.0 seconds

theAnimation.duration=5.0;

// release the path

CFRelease(thePath);
