Testing for Accessibility on OS X
Whether you’re designing a new application or access-enabling an existing one, you should plan to test the accessibility of your product. Testing for accessibility is a bit different than standard user-interface testing, and Apple provides a couple of tools that make the process easier. After you’ve discovered accessibility bugs with VoiceOver, inspect your app with these tools to resolve the problems.
Application developers should read this chapter to find out how to exercise the accessibility of their applications.
Using Accessibility Inspector
Apple provides the Accessibility Inspector testing tool that can be launched by selecting
Xcode > Open Developer Tool > Accessibility Inspector in the menu bar or Dock. You can download Xcode from the Mac App Store for free. Accessibility Inspector presents a utility window that displays the attributes (and values), actions, and position in the accessibility hierarchy of the object currently under the mouse pointer.
If you’re beginning to access-enable your application for assistive technologies like VoiceOver, try using Accessibility Inspector to view the accessibility information other applications provide. Although Accessibility Inspector is not an assistive application, it uses the same APIs assistive applications use to get information from the accessibility objects it encounters.
To use Accessibility Inspector, first ensure that “Enable access for assistive devices" is enabled in the Accessibility pane of System Preferences. Launch the Accessibility Inspector and move your mouse over the UI element you wish to inspect. If you're using VoiceOver to navigate, you can move the mouse to the VoiceOver cursor by pressing Command-Option-Control-F5. You can lock the Accessibility Inspector on the item under the mouse to examine its attributes, perform its actions, and access its parent and children (if any), by pressing Command-F7. When you do this, the Accessibility Inspector display pauses, allowing you to move the mouse without changing the object on which the tool is focused. In the main utility window, you can go to the object’s parent, children, or other related objects, such as the containing window or the top-level
AXApplication. You can also perform the actions supported by the accessibility object, allowing you to see how this affects the values of various attributes and the application itself. If you click the rectangular button in the bottom right corner of the Accessibility Inspector panel, you'll see light blue overlay over the locked UI element.
Accessibility Inspector also includes the ability to navigate the Accessibility tree hierarchy using visible buttons or keyboard commands. While holding the Control and Command keys, use the arrow keys to navigate. The Up and Down Arrows navigate to parents or children, while the Left and Right Arrows navigate to siblings of the current element.

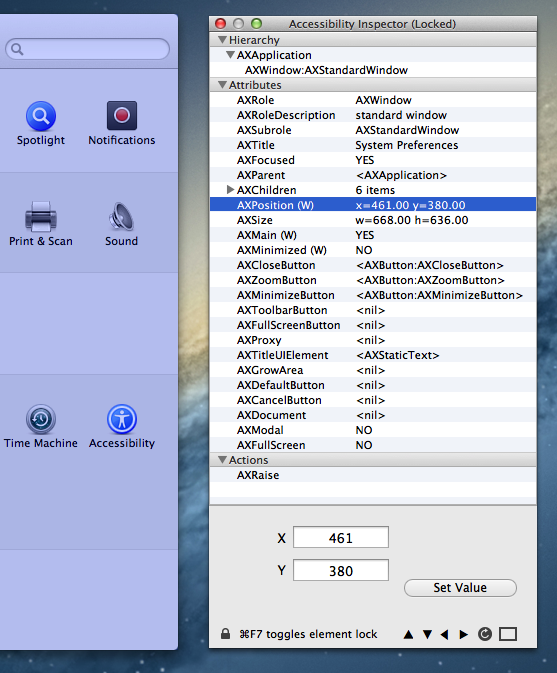

You can use Accessibility Inspector to modify any properties that are marked as writable, as denoted by a W in parentheses. For example, navigate up to the
AXWindow, and select its

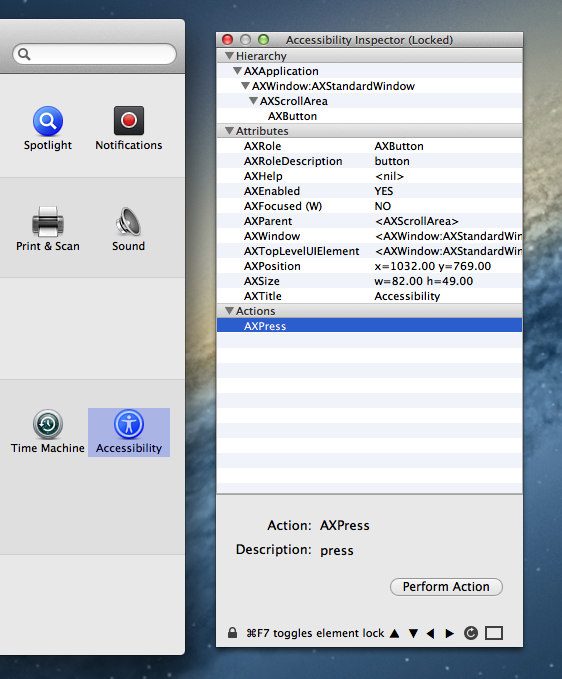

AXPosition property. Change the values of the X and Y text fields and click the Set Value button. The window will change its position on the screen. You can also perform certain actions such as
AXShowMenu by selecting the action and clicking the Perform Action button.
As you access-enable your application, use Accessibility Inspector to make sure your objects contain the appropriate information. If you find that a specific object is not accessible, you can focus Accessibility Inspector on that object and examine its attribute values and perform its actions to find the problem.
Using Accessibility Verifier
Apple provides the Accessibility Verifier tool that can be launched by selecting
Accessibility Inspector > Window > Accessibility Verifier. Accessibility Verifier displays the accessibility hierarchy comprising all currently instantiated objects in the selected application. To use Accessibility Verifier, be sure to enable assistive applications in the Accessibility pane of System Preferences.
Use Accessibility Verifier to perform any or all of the following tests (select the tests you want to run by clicking the Choose Tests... button):
Parent/Child. This test checks the integrity of the accessibility hierarchy by making sure each parent-child pair forms a closed loop. For example, if a child listed in a parent object’s children attribute does not refer to that object as its parent, this parent-child pair is invalid. Invalid parent-child pairs can prevent an assistive application from correctly traversing an application’s accessibility hierarchy.
Window. This test checks that all objects contained in a window include attributes that refer to the containing window. An object contained in a window is not necessarily the child of that window, but it should refer to its containing window as a convenience for assistive applications.
Missing AXDescription. This test checks for the presence of the description attribute in accessibility objects that require one. Recall from “The Description Attribute” that all accessibility objects must provide some context-specific descriptive information to assistive applications. If an object does not display a descriptive title, it should include the description attribute and an appropriate value.
Role Verification. This test verifies that an accessibility object’s attributes are appropriate for its role. See “Roles and Associated Attributes” for more information on the attributes that are associated with each role.
When you click Verify, Accessibility Verifier runs the tests you selected and displays the results for each. The problems are reported as warnings or errors, depending on their severity (you can filter the results by selecting a severity level in the Report Level pop-up menu).
It’s important to note that eliminating all errors and warnings Accessibility Verifier displays does not guarantee a perfectly accessible application. You should always test your application with various assistive technologies like VoiceOver to make sure there are no problems.
