Creating a Custom View Class

Cocoa always draws to objects known as views. The basic functionality of a view is implemented by the NSView class. This class defines the basic drawing, event handling, and printing architecture of an application. You typically don’t interact with NSView directly. Instead, you create a custom subclass that inherits from NSView and then override the methods you need. The AppKit framework automatically invokes these methods.

Right now, all you need to do is create a subclass of NSView. Later, you’ll write the code that performs drawing.

1. In the Groups & Files list of the Hello project window, select Classes.

2. Choose File > New File. The New File dialog appears.

   If you’re curious, browse through the list of templates to see the variety of files Xcode can create for you.

3. Click Cocoa Class under Mac OS X, select the Objective-C class template, choose NSView from the Subclass menu, and click Next.



4. Enter HelloView.m in the File Name field. Make sure the option “Also create HelloView.h” is selected.

5. Click Finish.

   The Xcode application creates the source files and places them inside the Classes group in your project. You’ll take a closer look at these later. Right now however, you’ll turn your attention to the user interface.

Using Interface Builder

Interface Builder is Apple’s graphical editor that you use to design user interfaces. It doesn’t generate source code; instead it allows you to manipulate objects directly and then save those objects in an archive called a nib file. At runtime, when a nib file is loaded the objects are unarchived and restored to the state they were in when you saved the file.

You need to add an instance of the HelloView class that you just created in Xcode to the application window.

1. Open Interface Builder by double-clicking the MainMenu.xib file, which you can find in the detail view for the project group.

2. Double-click the Window icon located in the MainMenu.xib window.

   When the user opens the Hello World application that you create, this is the window that appears.

3. Click inside the Window title bar and then choose Tools > Attributes Inspector.

   The inspector lets you look at and modify characteristics of the user interface elements you add to your application. Notice that your window already has default settings that dictate its behavior.

   Take a moment to click the buttons at the top of the inspector to see the other window characteristics—effects, size, bindings, connections, identity, and AppleScript. Later you’ll change some of these other characteristics.



   The window acts as a container for other user interface elements, like buttons, sliders, views, and text fields. For this application, you’ll need to add a view to the window. It’s the view that your application will draw to.

4. Choose Tools > Library to display the Interface Builder library.

   The library contains prebuilt user interface objects and media that you can add to your application. Take a moment to look through the variety of objects that are available. As you select groups, you see icons for the objects that you can choose from. When you select an object, you see its description.

   For the Hello World application, you need a custom view to draw to. You’ll add that to the window next.

5. In the Library pop-up menu, choose Layout Views and then locate the Custom View icon.

6. Drag the Custom View element from the library to the Hello window.



   A custom view is a subclass of NSView. Later, in your code, you’ll implement the drawing method (drawRect:) for the HelloView class that will draw to the custom view in the user interface.

7. Resize the Custom View element so that it occupies the entire content area of the Hello window.

8. Choose Tools > Identity Inspector. Then choose HelloView from the Class pop-up menu.

   Recall that HelloView is a class that you created in Xcode. Interface Builder and Xcode communicate with each other behind the scenes. Classes you create in Xcode are known to Interface Builder, which is why you can choose it from the Class pop-up menu. Notice that the label for the view in the window changes from Custom View to HelloView.



   You resized the view so it is the same size as the window, but what happens if the user resizes the window? In some cases you might want the view to stay the same size. But in this case, you want the view to expand and contract with the window. You’ll set that behavior next.

9. Select the view, and then choose Tools > Size Inspector.

   The inspector provides information about the object that’s currently selected. Now that you have two objects in your user interface—a window and a view, you want to make sure you have the appropriate one selected when using the inspector.

   The Size inspector lets you enter precise values for positioning and sizing objects. You can also set the layout simply by moving and resizing the objects onscreen. Autosizing lets you specify how (and whether) objects change size as the enclosing window changes size. You’ll set up autosizing next.



10. On the left side of the Autosizing area, click the vertical and horizontal lines in the inner square.

    Notice the dotted lines change to solid ones. Solid lines indicate the direction that the view should resize automatically. In this case, the view resizes automatically in both directions when the user changes the window size.

11. Save the Interface Builder file and quit Interface Builder.

There is much more to Interface Builder than you’ve seen here. When you write more advanced applications, you’ll use the inspector to set bindings and connections to associate the code you write with the user interface objects that trigger that code.

Using the Text Editor

To edit the source code for the Hello project:

1. Open the Hello project window and select the Classes group.

   Your two custom source files—HelloView.m and HelloView.h—should be listed in the detail view.

2. Open HelloView.m in a separate window by double-clicking it in the detail view.

   The file should look something like Listing 2-1.

   Notice that Xcode automatically created the initWithFrame: and drawRect: methods for you.





   Listing 2-1  Initial Implementation of the HelloView class

   #import "HelloView.h"

   @implementation HelloView

   - (id)initWithFrame:(NSRect)frame {

   self = [super initWithFrame:frame];

   if (self) {

   // Initialization code here.

   }

   return self;

   }

   - (void)drawRect:(NSRect)rect {

   // Drawing code here.

   }

   @end

   The method initWithFrame: is the designated initializer for the NSView class. It returns an initialized object. If your application needs to perform any other initializations related to the HelloView object, you’d add code to this method. Hello World is a simple application that doesn’t require any custom initialization.

   The drawRect: method is called automatically whenever the view needs to be drawn. The default implementation does nothing. You need to add whatever drawing code is appropriate for your application. You’ll do that next.

3. Insert these code lines as the body of the drawRect: method:

   NSString* hello = @"Hello, World!";

   NSPoint point = NSMake

   The first line creates the string that you’ll draw into the view.

   The second line is incomplete, but next you’ll see how to get help completing this line.

4. Position the cursor right after NSMake and press Esc. In the pop-up menu that appears, double-click NSMakePoint to choose it.

   The menu contains the symbols Xcode knows about whose name start with NSMake.



5. Enter 15 for the CGFloat x parameter and 75 for the CGFloat y parameter. Then add a semicolon (;) to the end of the code line.

   This call creates a point at the coordinates values that you specify. This point will be the starting point for drawing the Hello, World text.

6. Complete the implementation of the drawRect: method so it looks like the one shown in Listing 2-2.

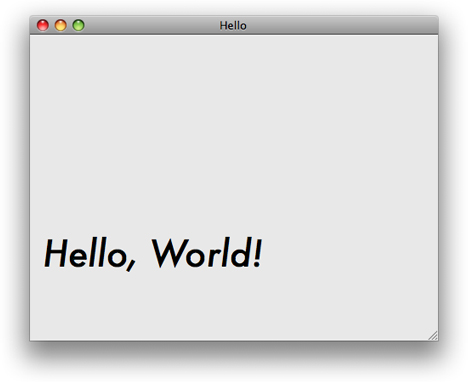

   This implementation draws the “Hello, World!” string starting at the view coordinates of (15, 75), using the Futura-Medium Italic font, size 42. The font name and size are added to a dictionary object, which is then passed to the drawAtPoint:withAttributes: method. This method does the actual drawing, using the attributes to added to the dictionary. After drawing the text, the drawRect: method releases the dictionary object to ensure proper memory management in Cocoa.





   Listing 2-2  Implementation of the drawRect: method

   - (void) drawRect:(NSRect) rect

   {

   NSString* hello = @"Hello, World!";

   NSPoint point = NSMakePoint(15, 75);

   NSMutableDictionary* font_attributes = [NSMutableDictionary new];

   NSFont* font = [NSFont fontWithName:@"Futura-MediumItalic" size:42];

   [font_attributes setObject:font forKey:NSFontAttributeName];

   [hello drawAtPoint:point withAttributes:font_attributes];

   [font_attributes release];

   }

7. Choose File > Save.

Compile-Time Errors

Projects are rarely flawless from the start. By introducing a mistake into the source code for the Hello project, you can discover the error-checking features in Xcode.

To see how error checking works:

1. Open the HelloView.m file.

2. Remove the semicolon from the point definition code line, creating a syntax error.

3. Choose File > Save to save the modified file.

4. Choose Build > Build. As expected, this time the build fails.

5. The error and warning messages are displayed inline in the editor window.



6. Fix the error in the source file, save, and build again. Notice that the error messages from the previous build are gone.

Runtime Debugging

Xcode provides a graphical user interface for GDB, the GNU source-level debugger. Debugging is an advanced programming topic that’s beyond the scope of this tutorial, but it’s useful to try out the debug command to see how it works. When you debug an application, you should make sure that Debug is the active build configuration.

To set a breakpoint and step through a block of code:

1. Open the HelloView.m file.

2. Find the line that defines the hello variable.

3. Set a breakpoint by clicking in the column to the left of the code line.



4. Choose Run > Debugger. Xcode opens the debugger.

5. Click Breakpoints and then click Build and Debug to have Xcode run the application in debug mode.

   Your application pauses at the breakpoint you set.



6. Using the Step Over button in the debugger toolbar, begin stepping through the code. As each line of code executes, you can examine the program’s state. The value of a variable is sometimes drawn in red to indicate that the value was modified in the last step.

   Notice that the debugger pauses before executing the indicated line. After each pause, you can add additional breakpoints or choose Debug > Restart to terminate the application and start a new debugging session.

Normally, Xcode just stops the execution of the program when it encounters a breakpoint. By specifying breakpoint actions, you make Xcode perform other actions, such as logging output to the console.

To add a breakpoint action to the breakpoint you added earlier:

1. Choose Run > Show > Breakpoints. Xcode displays the Breakpoints window.

2. In the detail view in the Breakpoints window, click the triangle to the left of the breakpoint you added earlier.

3. Click the add (+) button that appears below the breakpoint.

4. From the pop-up menu that appears in the line below the breakpoint, choose Sound.

5. From the second pop-up menu, choose the sound you want Xcode to play when it reaches that breakpoint.



   Now when execution reaches the breakpoint, Xcode plays a sound in addition to stopping the program.

For more information on breakpoints, see Managing Program Execution in Xcode Debugging Guide.
