Function

vDSP_vgenpD(_:_:_:_:_:_:_:_:)

Generates a double-precision vector by extrapolation and interpolation.

Declaration

func vDSP_vgenpD(_ __A: UnsafePointer<Double>, _ __IA: vDSP_Stride, _ __B: UnsafePointer<Double>, _ __IB: vDSP_Stride, _ __C: UnsafeMutablePointer<Double>, _ __IC: vDSP_Stride, _ __N: vDSP_Length, _ __M: vDSP_Length)

Parameters

__A

Double-precision real input vector.

__IA

Address stride for A.

__B

Double-precision real input vector.

__IB

Address stride for B.

__C

Double-precision real output vector.

__IC

Address stride for C.

__N

Element count for C.

__M

Element count for A and B.

Discussion

The vDSP_vgenp(_:_:_:_:_:_:_:_:) and vDSP_vgenpD(_:_:_:_:_:_:_:_:) functions populate a vector, by linearly interpolating between a series of index-value pairs. The following pseudocode describes the calculation:

for (n = 0; n < N; ++n)
    If n <= B[0],  then C[n] = A[0].
    If B[M-1] < n, then C[n] = A[M-1].
    Otherwise:
        Let m be such that B[m] < n <= B[m+1].
        C[n] = A[m] + (A[m+1]-A[m]) * (n-B[m]) / (B[m+1]-B[m]).

The input vector A provides a series of values, and the input vector B provides the indices in the output vector, C, for the corresponding value in A. The indices must increase monotonically.

For example, the following code defines five value-index pairs:

let a: [Float] = [0, 0.25, 1, 0.25, 0]
let b: [Float] = [0, 256, 512, 768, 1024]

Passing these arrays to vDSP_vgenp(_:_:_:_:_:_:_:_:) populates the output array, c, with the linearly interpolated values:

let n = vDSP_Length(1024)

var c = [Float](repeating: 0,
                count: Int(n))

let stride = vDSP_Stride(1)

vDSP_vgenp(a, stride,
           b, stride,
           &c, stride,
           n,
           vDSP_Length(a.count))

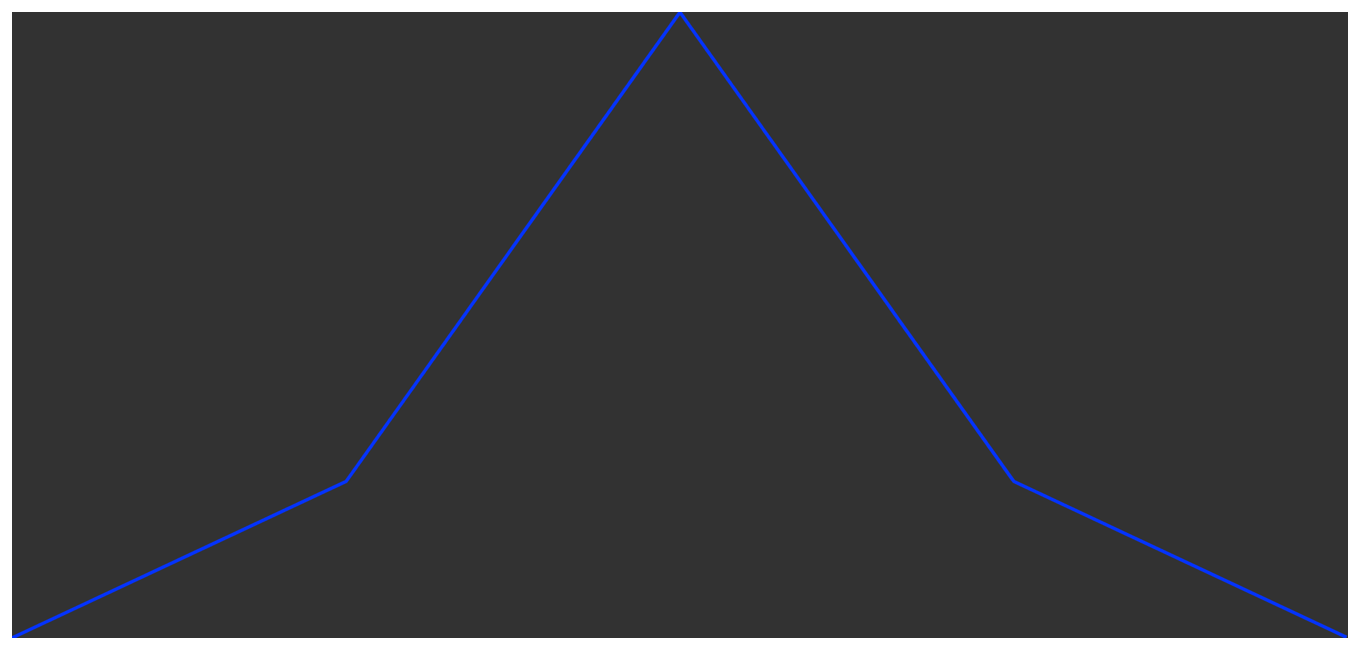

The following illustrates the values of c:

Visualization of generated vector.
