A view that adds translucency and vibrancy effects to the views in your interface.
SDK
- macOS 10.10+
Framework
- App
Kit
Declaration
@interface NSVisualEffectView : NSView
Overview
Use visual effect views primarily as background views for your app’s content. A visual effect view makes your foreground content more prominent by employing the following effects:
Translucency and the blurring of background content adds depth to your interface.
Vibrancy is a subtle blending of foreground and background colors to increase the contrast and make the foreground content stand out visually.
The material and blending mode you assign determines the exact appearance of the visual effect. Not all materials support transparency, and materials apply vibrancy in different ways. The appearance and behavior of materials can also change based on system settings, so always pick a material based on its intended use. For example, use the NSVisual
material when your view serves as the background of your window’s sidebar. Don't select materials based on the apparent colors they impart on your interface.
AppKit creates visual effect views automatically for window titlebars, popovers, and source list table views. You don't need to add visual effect views to those elements of your interface.
Choosing a Translucency Effect for Your View
For visual effect views you create yourself, use the blending
property to specify how and where you want the translucency applied.

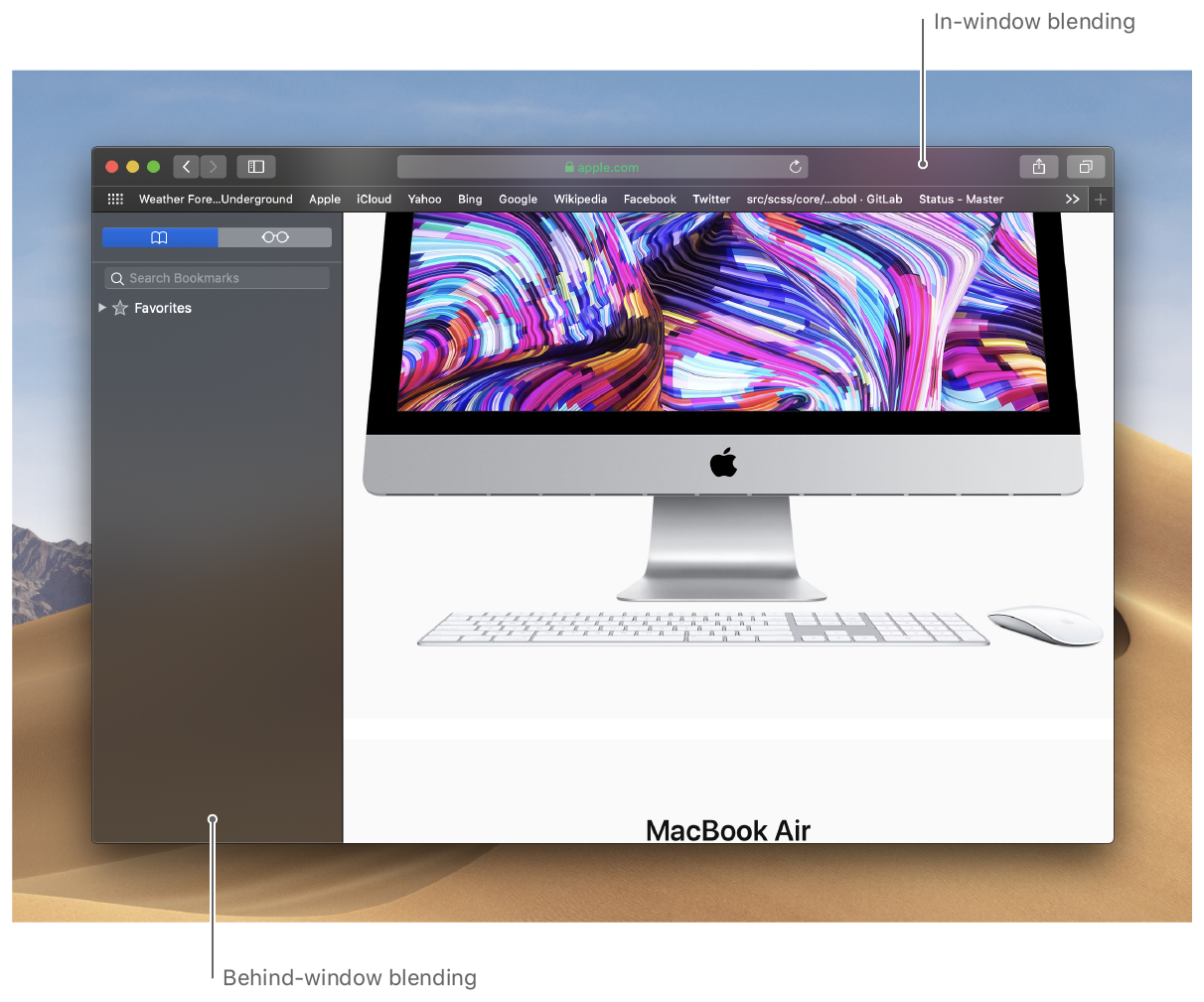

Behind-window blending uses the content behind the window as the background for your visual effect view. Behind-window blending makes your entire window stand out above other windows and apps on the desktop. Sheets and popovers use behind-window blending.
In-window blending uses the window’s content as the background for your visual effect view. Typically, you use in-window blending with scrolling content, so that the scrolled content remains partially visible under other parts of your window chrome. Toolbars always use in-window blending.

Enabling Vibrancy for Foreground Content
The presence of a visual effect view in your view hierarchy does not automatically add vibrancy to your content. For custom views, you must explicitly enable vibrancy by overriding the allows
property and returning YES
.
Note
AppKit views and controls automatically add vibrancy where appropriate. For example, NSText
enables vibrancy to increase the contrast between the text and background. Don't change the vibrancy settings of standard AppKit views and controls.
It is recommended that you enable vibrancy only in the leaf views of your view hierarchy. Subviews inherit the vibrancy of their parent. Once enabled in a parent view, a subview cannot turn off vibrancy. As a result, enabling vibrancy in a parent view can lead to subviews that look incorrect if they are not designed to take advantage of the vibrancy effect.
Vibrancy works best when your custom views contain grayscale content. Combining a grayscale foreground with a color background works well, because AppKit improves the contrast while only subtly changing the foreground hue. The same isn't always true when blending two different color values. Dramatically different foreground and background hues can cancel each other out or result in colors that don't match your original designs.
Instead of defining custom grayscale color assets, consider using the built-in colors label
, secondary
, tertiary
, and quaternary
. While typically used with text, these colors are applicable with any app content. The built-in colors represent varying levels of contrast for your content, with label
offering the most contrast, and quaternary
offering the least contrast.
Subclassing Notes
If you subclass NSVisual
:
Always call
super
if you overrideview
orDid Move To Window view
.Will Move To Window: Do not override
draw
orRect: update
.Layer
