Article

Adding a Pull Quote

Break an existing body component into two components, and then insert a pull quote between them.

Overview

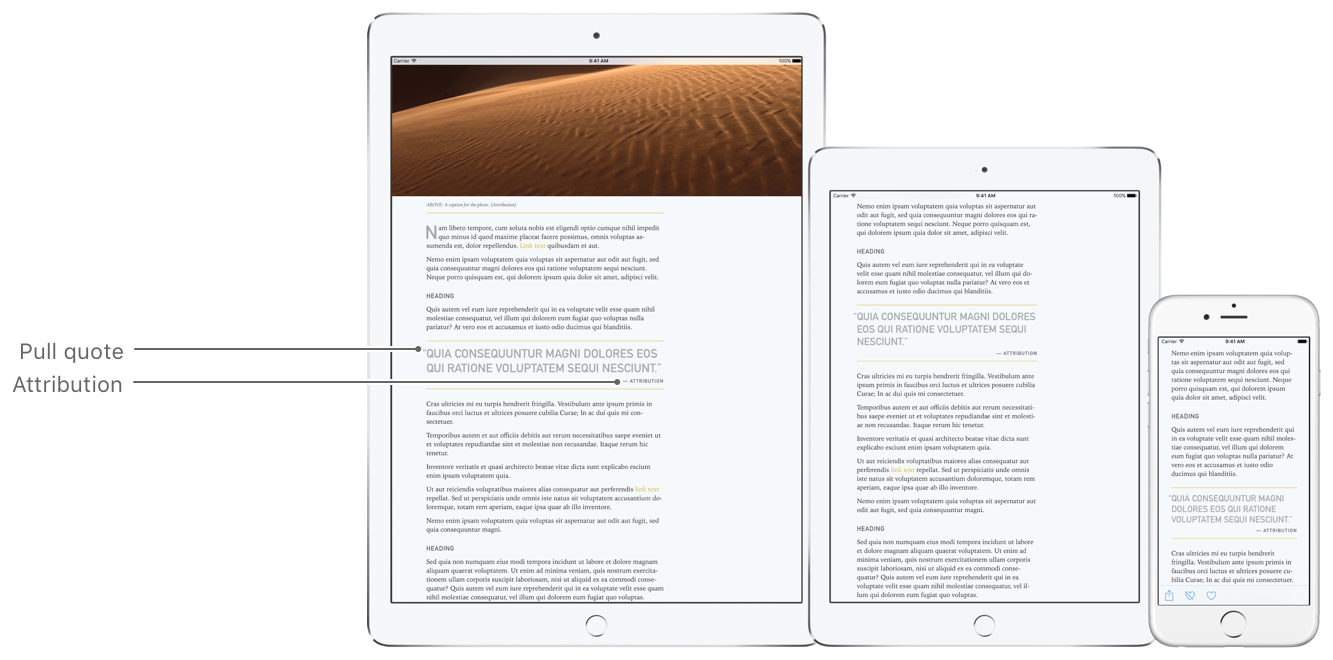

You can use pull quotes to highlight particularly compelling and relevant points. Visually, a pull quote can break up long portions of text, providing relief to the user.

On this page, you’ll learn how to:

  • Add a pull quote to your article.

  • Use style and layout objects to customize a pull quote, including adding hanging punctuation.

Add a Pull Quote in Your Article

When a pull quote is accompanied by an attribution line, use two separate pullquote components. This allows you to use different layouts and different text styles for the quote text and the attribution text.

First, you’ll break an existing body component into two components. Then, you’ll insert two pullquote components (representing a pull quote and an attribution) between the body components.

  1. In your article.json file, copy the body component whose text begins with <p>Quis autem vel eum, including the component’s opening brace ({) and closing brace and comma (},)

  2. Paste the component after the brace and comma that end the component that you just copied, so that there are two identical body components.

  3. In the first of the two body components, delete everything in the text property value after blanditiis</p>. Do not delete the closing quotation mark.

  4. In the second of the two body components, delete everything in the text property value before <p>Cras ulticies. Do not delete the opening quotation mark.

  5. Copy the example code Pull Quote: Copy This Code.

  6. Paste the code between the two components from steps 1 through 4, after the closing brace and comma.

Your code should look like the example code Pull Quote: Result.

After you make these changes in your code, you can preview your working article.json file in News Preview to see the pull quote and attribution.

Pull Quote: Copy This Code

    {
      "role": "pullquote",
      "text": "“QUIA CONSEQUUNTUR MAGNI DOLORES EOS QUI RATIONE VOLUPTATEM SEQUI NESCIUNT.”"
    },
    {
      "role": "pullquote",
      "text": "— ATTRIBUTION"
    },

Pull Quote: Result

Ellipses (...) indicate lines of code that have been omitted from this example.

{
  ...
  "components": [
    ...
    {
      "role": "pullquote",
      "text": "“QUIA CONSEQUUNTUR MAGNI DOLORES EOS QUI RATIONE VOLUPTATEM SEQUI NESCIUNT.”"
    },
    {
      "role": "pullquote",
      "text": "— ATTRIBUTION"
    },
    ...
  ],
  ...
}

Define Styles for Pull Quote Text

In Creating Your First Article, you applied text styles using ComponentTextStyle objects. Here, you’ll do something similar—create two more ComponentTextStyle objects so that you can apply styles to pullquote components.

To set the pull quote apart visually, you’ll use hangingPunctuation. This causes punctuation (such as opening and closing quotation marks) to appear outside of the component’s designated span.

You can also add tracking, or the horizontal spacing between letters, to take advantage of the fact that the attribution is unlikely to use the full component width.

  1. Copy the example code Pull Quote Text Styles: Copy This Code.

  2. Paste the code between the closing brace (}) of the last component text style and the closing brace for the whole componentTextStyles property.

Your code should look like the example code Pull Quote Text Styles: Result.

Pull Quote Text Styles: Copy This Code

,
    "default-pullquote": {
      "fontName": "DINAlternate-Bold",
      "fontSize": 30,
      "lineHeight": 36,
      "textColor": "#A6AAA9",
      "hangingPunctuation": true
    },
    "attribution": {
      "fontName": "DINAlternate-Bold",
      "fontSize": 12,
      "lineHeight": 16,
      "tracking": 0.12,
      "textColor": "#53585F",
      "textAlignment": "right"
    }

Pull Quote Text Styles: Result

Ellipses (...) indicate lines of code that have been omitted from this example.

{
  ...
  "componentTextStyles": {
    ...
    "default-pullquote": {
      "fontName": "DINAlternate-Bold",
      "fontSize": 30,
      "lineHeight": 36,
      "textColor": "#A6AAA9",
      "hangingPunctuation": true
    },
    "attribution": {
      "fontName": "DINAlternate-Bold",
      "fontSize": 12,
      "lineHeight": 16,
      "tracking": 0.12,
      "textColor": "#53585F",
      "textAlignment": "right"
    }
  }
  ...
}

Define Minor Adjustments for Pull Quote Positions

In Positioning Text Components, you adjusted the positions of some components using ComponentLayout objects. Now you’ll create two other ComponentLayout objects to adjust the positions of your pull quote components.

  1. Copy the example code Pull Quote Layout: Copy This Code.

  2. Paste the code between the closing brace (}) of the last ComponentLayout object and the closing brace for the whole componentLayouts property.

Your code should look like the example code Pull Quote Layout: Result.

Pull Quote Layout: Copy This Code

,
    "fullMarginAboveLayout": {
      "columnStart": 0,
      "columnSpan": 14,
      "margin": {
        "top": 24
      }
    },
    "halfMarginAboveQuarterBelowLayout": {
      "columnStart": 0,
      "columnSpan": 14,
      "margin": {
        "top": 12,
        "bottom": 6
      }
    }

Pull Quote Layout: Result

Ellipses (...) indicate lines of code that have been omitted from this example.

{
  ...
  "componentLayouts": {
    ...
    "fullMarginAboveLayout": {
      "columnStart": 0,
      "columnSpan": 7,
      "margin": {
        "top": 24
      }
    },
    "halfMarginAboveQuarterBelowLayout": {
      "columnStart": 0,
      "columnSpan": 7,
      "margin": {
        "top": 12,
        "bottom": 6
      }
    }
  },
...
}

Use Style and Layout Objects and Add Dividers

Now that you have defined ComponentLayout objects, you can use them in the pullquote components.

  1. Copy the example code Divider Above Pull Quote: Copy This Code.

  2. Paste the code before the opening brace ({) that begins the first pullquote component.

  3. Copy the example code Divider Below Pull Quote: Copy This Code.

  4. Paste the code after the closing brace and comma (},) that end the second pullquote component.

  5. Copy the line "layout": "halfMarginAboveQuarterBelowLayout",

  6. Paste the line after the first instance of "role": "pullquote",

  7. Copy the line "layout": "halfMarginBelowLayout",

  8. Paste the line after the second instance of "role": "pullquote",

  9. Copy the line "textStyle": "attribution",

  10. Paste the line that you copied after the line "layout": "halfMarginBelowLayout",

Your code should look like the example code Pull Quote Styles and Layout: Result.

After you make these changes in your code, you can preview your working article.json file in News Preview to see the changes to styles and layout. For example, the vertical positioning of the pull quote components has changed, and the attribution uses a different color. You can also see the new dividers.

Divider Above Pull Quote: Copy This Code

    {
      "role": "divider",
      "layout": "fullMarginAboveLayout",
      "stroke": {
        "width": 1,
        "color": "#D5B327"
      }
    },

Divider Below Pull Quote: Copy This Code

    {
      "role": "divider",
      "layout": "fullMarginBelowLayout",
      "stroke": {
        "width": 1,
        "color": "#D5B327"
      }
    },

Pull Quote Styles and Layout: Result

Ellipses (...) indicate lines of code that have been omitted from this example.

{
  ...
  "components": [
    ...
    {
      "role": "divider",
      "layout": "fullMarginAboveLayout",
      "stroke": {
        "width": 1,
        "color": "#D5B327"
      }
    },
    {
      "role": "pullquote",
      "layout": "halfMarginAboveQuarterBelowLayout",
      "text": "“QUIA CONSEQUUNTUR MAGNI DOLORES EOS QUI RATIONE VOLUPTATEM SEQUI NESCIUNT.”"
    },
    {
      "role": "pullquote",
      "layout": "halfMarginBelowLayout",
      "textStyle": "attribution",
      "text": "— ATTRIBUTION"
    },
    {
      "role": "divider",
      "layout": "fullMarginBelowLayout",
      "stroke": {
        "width": 1,
        "color": "#D5B327"
      }
    },
    ...
  ],
  ...
}
