Article

Creating a Complex, Layered Header

Layer a title and heading in front of an image, with their colors optimized for legibility.

Overview

In the first advanced tutorial, you created a header with layering and parallax behavior.

In this second article, you’ll add more code to the same article to modify the layout. You’ll wrap body text around an image, place captions in the article margin, create a more complex header, and add component animations.

On this page, you’ll learn how to create a more complex layered header.

Move Title and Heading Text into the Header

First, you need to layer title and heading information in front of the header’s image fill. You’ll move heading1, divider, and title components from the second section of the article into the header component.

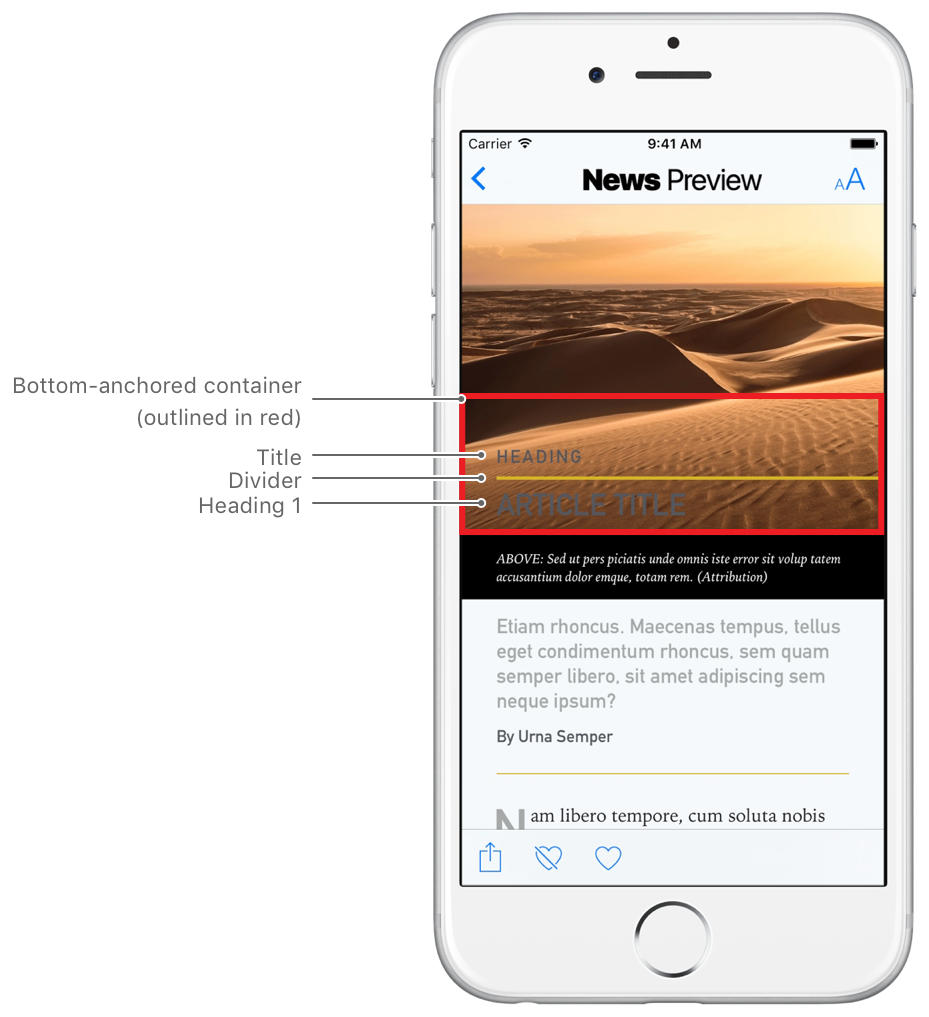

This image shows the heading and title before they have been lightened for legibility; you’ll lighten this text in Define a Light Text Style for Heading Text.

  1. Open the article.json file that you completed in Adding Parallax Behavior, or open Desktop/News_Design_Tutorial/News_Design_Tutorial_Advanced_Article_1/article.json.

  2. In the article.json file (not the example code below), cut the first three components inside the second section to your clipboard. The code you are cutting begins with the opening bracket ({) before "role": "heading1", and ends with the closing bracket and comma (},) that end the title component.

  3. Paste the components inside the components array in your article’s header, after the opening square bracket ([) that comes a few lines after this line: "role": "header",

Your code should look like the example code Moving Components: Result.

After you make this change in your code, you can preview your working article.json file in News Preview to see that the title is layered in front of the header as shown in the previous figure.

Moving Components: Result

Ellipses (...) indicate lines of code that have been omitted from this example.

{
  ...
  "components": [
    {
      "role": "section",
      "layout": "fullBleedLayout",
      "behavior": {
        "type": "parallax",
        "factor": 0.8
      },
      "components": [
        {
          "role": "header",
          "layout": "headerImageLayout",
          "style": {
            "fill": {
              "type": "image",
              "URL": "bundle://header.jpg",
              "fillMode": "cover",
              "verticalAlignment": "top",
              "horizontalAlignment": "center"
            }
          },
          "components": [
            {
              "role": "heading1",
              "layout": "heading1Layout",
              "text": "HEADING"
            },
            {
              "role": "divider",
              "layout": "bigDividerLayout",
              "stroke": {
                "width": 3,
                "color": "#D5B327"
              }
            },
            {
              "role": "title",
              "layout": "halfMarginBelowLayout",
              "text": "ARTICLE TITLE"
            },
            {
              "role": "container",
              "layout": "fullBleedLayout",
              "style": "captionBarBackgroundStyle",
              "anchor": {
                "targetAnchorPosition": "bottom"
              },
              "components": [
                {
                  "role": "caption",
                  "textStyle": "captionLight",
                  "layout": "halfMarginBothLayout",
                  "text": "ABOVE: Sed ut pers piciatis unde omnis iste error sit volup tatem accusantium dolor emque, totam rem. (Attribution)"
                }
              ]
            }
          ]
        }
      ]
    },
    ...
  ],
  ...
}

Create More Space Above the Intro Component

When you moved your title in Move Title and Heading Text into the Header, the spacing around your intro component changed. You can use an already defined ComponentLayout object to create more space above the intro component.

To create additional space, in your article.json file, inside the intro component, change the value of layout from "halfMarginBelowLayout" to "halfMarginBothLayout".

Your code should look like the example code Intro ComponentLayout Object: Result.

After you make this change in your code, you can preview your working article.json file in News Preview to see the adjustment to the intro component’s position.

Intro ComponentLayout Object: Result

Ellipses (...) indicate lines of code that have been omitted from this example.

{
  ...
  "components": [
    {
      "role": "section",
      "layout": "fullBleedLayout",
      "behavior": {
        "type": "parallax",
        "factor": 0.8
      },
      "components": [
        ...
      ]
    },
    {
      "role": "section",
      "layout": "fullBleedLayout",
      "style": "bodyBackgroundStyle",
      "components": [
        {
          "role": "intro",
          "layout": "halfMarginBothLayout",
          "text": "Etiam rhoncus. Maecenas tempus, tellus eget condimentum rhoncus, sem quam semper libero, sit amet adipiscing sem neque ipsum?"
        },
        ...
      ]
    }
  ],
  ...
}

Anchor the Title to the Bottom of the Header

If you anchor multiple child components to the same side of the parent, the children will stack as in the following figure. This image shows the heading and title before they have been lightened for legibility; you’ll lighten this text in Use the Dark Background and Light Text.

  1. In your working article.json file, delete the contents of the components array inside your header component.

  2. Copy the example code Header Contents: Copy This Code.

  3. Paste the code inside the now-empty components array of the header, where you deleted content in step 1. Make sure to paste inside the square brackets ([]).

Your code should look like the example code Header Contents: Result.

After you make this change in your code, you can preview your working article.json file in News Preview to see that the article title information is anchored to the bottom of the header.

Header Contents: Copy This Code

            {
              "role": "container",
              "layout": "fullBleedLayout",
              "anchor": {
                "targetAnchorPosition": "bottom"
              },
              "components": [
                {
                  "role": "heading1",
                  "layout": "heading1Layout",
                  "text": "HEADING"
                },
                {
                  "role": "divider",
                  "layout": "bigDividerLayout",
                  "stroke": {
                    "width": 3,
                    "color": "#D5B327"
                  }
                },
                {
                  "role": "title",
                  "format": "html",
                  "layout": "halfMarginBelowLayout",
                  "text": "ARTICLE TITLE"
                }
              ]
            },
            {
              "role": "container",
              "layout": "fullBleedLayout",
              "style": "captionBarBackgroundStyle",
              "anchor": {
                "targetAnchorPosition": "bottom"
              },
              "components": [
                {
                  "role": "caption",
                  "textStyle": "captionLight",
                  "layout": "halfMarginBothLayout",
                  "text": "ABOVE: Sed ut pers piciatis unde omnis iste error sit volup tatem accusantium dolor emque, totam rem. (Attribution)"
                }
              ]
            }

Header Contents: Result

Ellipses (...) indicate lines of code that have been omitted from this example.

{
  ...
  "components": [
    {
      "role": "section",
      "layout": "fullBleedLayout",
      "behavior": {
        "type": "parallax",
        "factor": 0.8
      },
      "components": [
        {
          "role": "header",
          "layout": "headerImageLayout",
          "style": {
            "fill": {
              "type": "image",
              "URL": "bundle://header.jpg",
              "fillMode": "cover",
              "verticalAlignment": "top",
              "horizontalAlignment": "center"
            }
          },
          "components": [
            {
              "role": "container",
              "layout": "fullBleedLayout",
              "anchor": {
                "targetAnchorPosition": "bottom"
              },
              "components": [
                {
                  "role": "heading1",
                  "layout": "heading1Layout",
                  "text": "HEADING"
                },
                {
                  "role": "divider",
                  "layout": "bigDividerLayout",
                  "stroke": {
                    "width": 3,
                    "color": "#D5B327"
                  }
                },
                {
                  "role": "title",
                  "format": "html",
                  "layout": "halfMarginBelowLayout",
                  "text": "ARTICLE TITLE"
                }
              ]
            },
            {
              "role": "container",
              "layout": "fullBleedLayout",
              "style": "captionBarBackgroundStyle",
              "anchor": {
                "targetAnchorPosition": "bottom"
              },
              "components": [
                {
                  "role": "caption",
                  "textStyle": "captionLight",
                  "layout": "halfMarginBothLayout",
                  "text": "ABOVE: Sed ut pers piciatis unde omnis iste error sit volup tatem accusantium dolor emque, totam rem. (Attribution)"
                }
              ]
            }
          ]
        }
      ]
    },
    ...
  ],
  ...
}

Define a Dark Background for the Title and Heading

To add contrast to your title and heading text, you can adjust the text color and the background of the text’s parent container. You’ll set the title container background to a gradient that fades from transparent at the top to black at the bottom.

  1. Copy the example code scrimBackgroundStyle: Copy This Code.

  2. Paste the code between the closing brace (}) of the last ComponentStyle object and the closing brace for the whole componentStyles property.

Your code should look like the example code scrimBackgroundStyle: Result.

scrimBackgroundStyle: Copy This Code

,
    "scrimBackgroundStyle": {
      "fill": {
        "type": "linear_gradient",
        "colorStops": [
          {
            "color": "#00000000"
          },
          {
            "color": "#00000090"
          }
        ]
      }
    }

scrimBackgroundStyle: Result

{
  ...
  "componentStyles": {
    ...
    "scrimBackgroundStyle": {
      "fill": {
        "type": "linear_gradient",
        "colorStops": [
          {
            "color": "#00000000"
          },
          {
            "color": "#00000090"
          }
        ]
      }
    }
  },
  ...
}

Define a Light Text Style for Heading Text

Before you can lighten the text of the heading, you must define a new ComponentTextStyle object.

  1. Copy the example code heading1Light: Copy This Code.

  2. Paste the code inside the ArticleDocument.componentTextStyles object in your article.json file, after the closing brace (}) of the last ComponentTextStyle object and before the closing brace for the whole componentTextStyles property.

Your code should look like the example code heading1Light: Result.

heading1Light: Copy This Code

,
    "heading1Light": {
      "textColor": "#FFF"
    }

heading1Light: Result

Ellipses (...) indicate lines of code that have been omitted from this example.

{
  ...
  "componentTextStyles": {
    ...
    "heading1Light": {
      "textColor": "#FFF"
    }
  }
  ...
}

Use the Dark Background and Light Text

Now you can add references to the scrimBackgroundStyle and heading1Light objects.

  1. In your article.json file, inside the header component’s child container, add a property named style with a value of "scrimBackgroundStyle", as in the example code Dark Background and Light Text: Result.

  2. In your article.json file, inside both the heading1 component and the title component, add a property named textStyle with a value of "heading1Light", as in the example code Dark Background and Light Text: Result.

After you make this change in your code, you can preview your working article.json file in News Preview to see the optimized styling of your header.

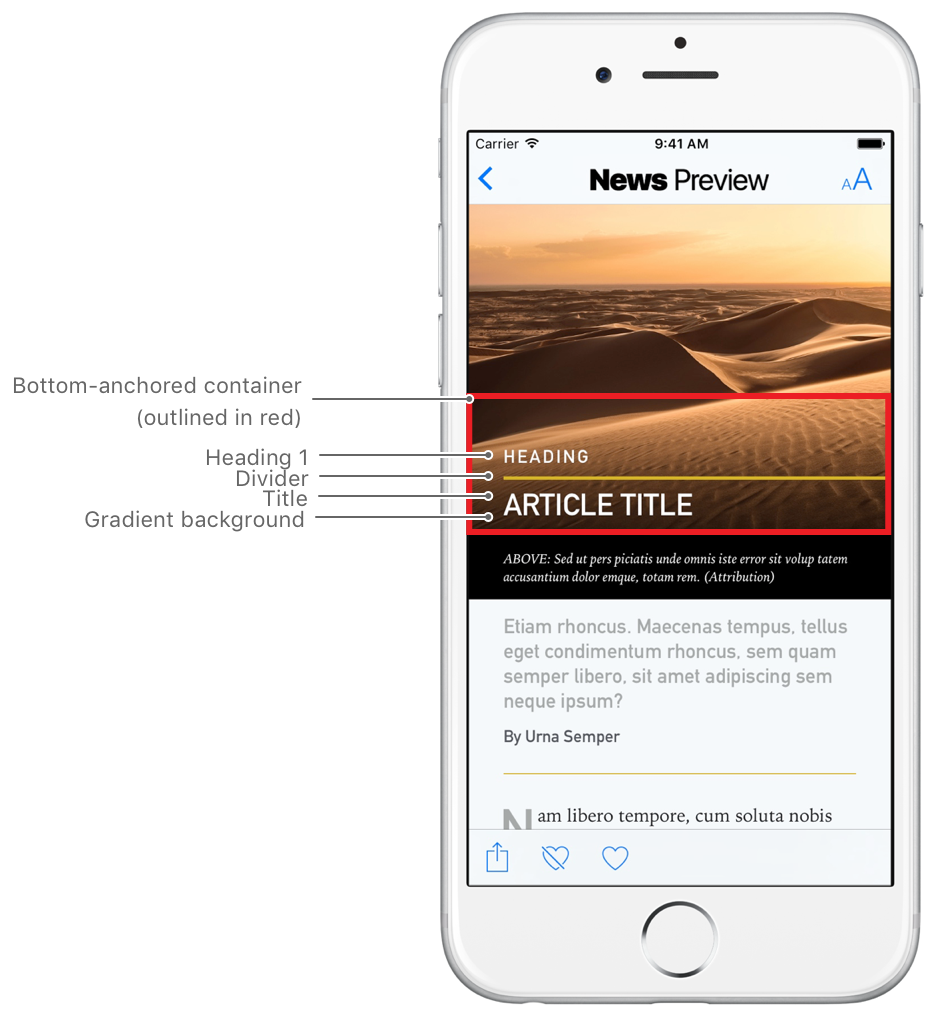

Dark Background and Light Text: Result

Ellipses (...) indicate lines of code that have been omitted from this example.

{
  ...
  "components": [
    {
      "role": "section",
      ...
      "components": [
        {
          "role": "header",
          ...
          },
          "components": [
            {
              "role": "container",
              "layout": "fullBleedLayout",
              "style": "scrimBackgroundStyle",
              "anchor": {
                "targetAnchorPosition": "bottom"
              },
              "components": [
                {
                  "role": "heading1",
                  "textStyle": "heading1Light",
                  "layout": "heading1Layout",
                  "text": "HEADING"
                },
                {
                  "role": "divider",
                  "layout": "bigDividerLayout",
                  "stroke": {
                    "width": 3,
                    "color": "#D5B327"
                  }
                },
                {
                  "role": "title",
                  "textStyle": "heading1Light",
                  "format": "html",
                  "layout": "halfMarginBelowLayout",
                  "text": "ARTICLE TITLE"
                }
              ]
            },
            ...
          ]
        }
      ]
    },
    ...
  ],
  ...
}
