Creating an Inset Photo

Wrap article body text around an inset photo.

Overview

In Creating an Inset Pull Quote, you placed a pull quote within the article body.

On this page, you’ll learn how to:

  • Place a photo within the article body.

  • Use a ComponentLayout object to control horizontal placement in the column system.

  • Add an anchor to control vertical placement and make text wrap around the photo.

Define ComponentLayout Objects for an Inset Photo

Before you can position the photo inside the article body, you must define some new ComponentLayout objects for this example. The smallImageLayout object determines that the pull quote container gets laid out in the rightmost three columns of the article text. The other two ComponentLayout objects make minor vertical adjustments.

  1. Copy the example code Inset Photo Layout: Copy This Code.

  2. Paste the code between the closing brace (}) of the last ComponentLayout object and the closing brace for the whole componentLayouts property.

Your code should look like the example code Inset Photo Layout: Result.

Inset Photo Layout: Copy This Code

,
    "smallImageLayout": {
      "columnStart": 8,
      "columnSpan": 6
    },
    "halfMarginAboveContainedLayout": {
      "margin": {
        "top": 12
      }
    },
    "halfMarginBothContainedLayout": {
      "margin": {
        "top": 12,
        "bottom": 12
      }
    }

Inset Photo Layout: Result

Ellipses (...) indicate lines of code that have been omitted from this example.

{
  ...
  "componentLayouts": {
    ...
    "smallImageLayout": {
      "columnStart": 8,
      "columnSpan": 6
    },
    "halfMarginAboveContainedLayout": {
      "margin": {
        "top": 12
      }
    },
    "halfMarginBothContainedLayout": {
      "margin": {
        "top": 12,
        "bottom": 12
      }
    }
  },
  ...
}

Define a Bottom Border

Before you can add a bottom border to the inset photo, you must define a ComponentStyle object that creates a bottom border only.

  1. Copy the example code captionLockupStyle: Copy This Code.

  2. Paste the code between the closing brace (}) of the last ComponentStyle object and the closing brace for the whole componentStyles property.

Your code should look like the example code captionLockupStyle: Result.

captionLockupStyle: Copy This Code

,
    "captionLockupStyle": {
      "border": {
        "all": {
          "width": 1,
          "color": "#D5B327"
        },
        "top": false,
        "right": false,
        "bottom": true,
        "left": false
      }
    }

captionLockupStyle: Result

Ellipses (...) indicate lines of code that have been omitted from this example.

{
  ...
  "componentStyles": {
    ...
    "captionLockupStyle": {
      "border": {
        "all": {
          "width": 1,
          "color": "#D5B327"
        },
        "top": false,
        "right": false,
        "bottom": true,
        "left": false
      }
    }
  },
  ...
}

Use Style and Layout, and Wrap Text Around a Container

In Download the Article Bundle Examples, you downloaded a bundle called News_Design_Tutorial_Advanced_Article_2 that contains a sidebar image. Now, you’ll move that image into your working folder and create a photo component to display the image.

  1. Move the sidebar.jpg file from Desktop/News_Design_Tutorial_Advanced/News_Design_Tutorial_Advanced_Article_2 folder to your working article directory. This directory is most likely Desktop/News_Design_Tutorial_Advanced/News_Design_Tutorial_6_Embeds or Desktop/News_Design_Tutorial_Advanced/News_Design_Tutorial_Advanced_Article_1.

  2. Copy the example code Container: Copy This Code.

  3. Paste the code before the opening brace ({) of the body component whose text begins with Consequatur aut doloribus.

  4. Copy the code <a id='a1' />

  5. Paste the code in the body component whose text begins with Consequatur aut doloribus, as in the example code Container: Result. You may have to scroll to the right in the example code to see this.

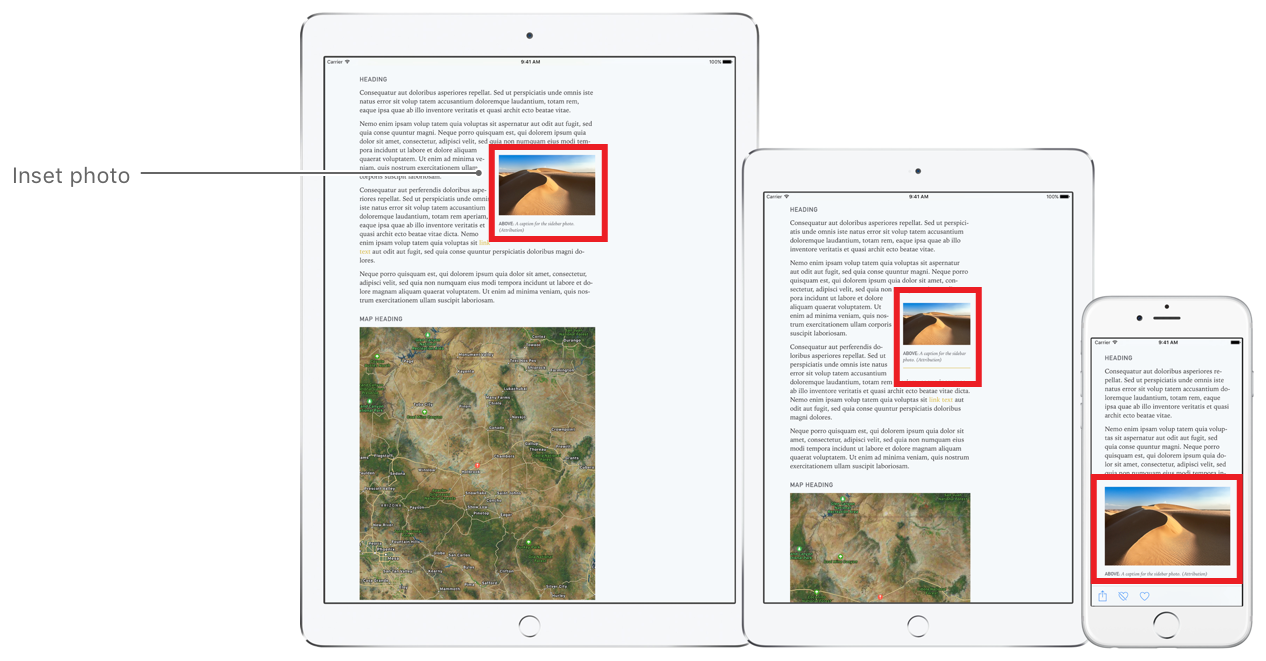

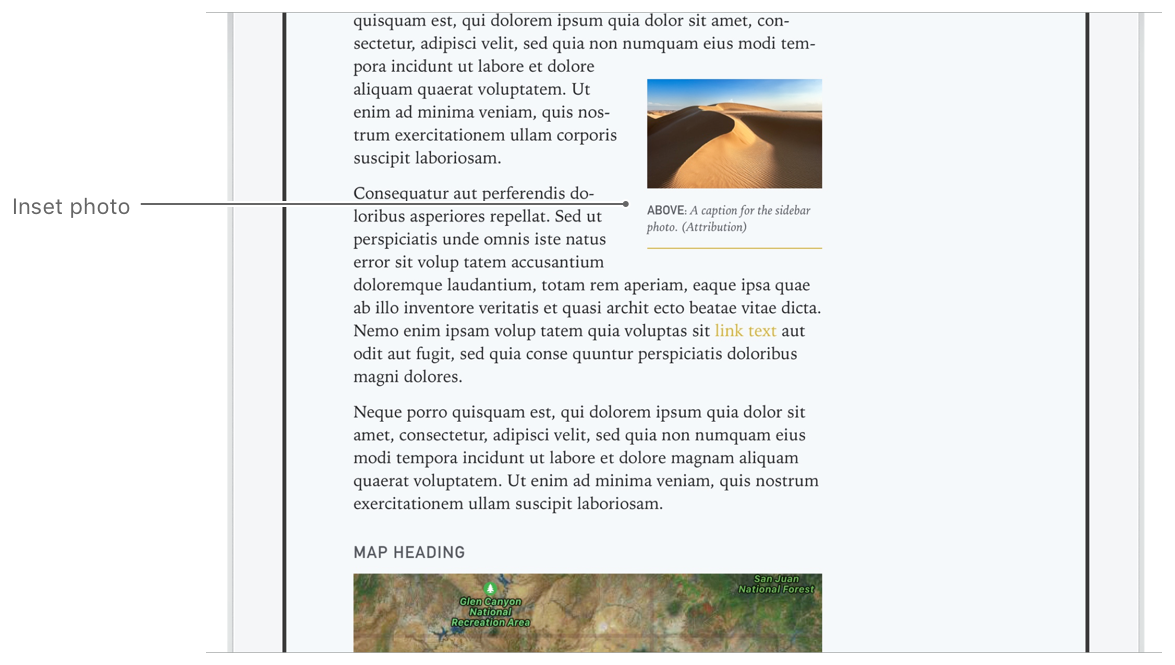

After you make these changes in your code, you can preview your working article.json file in News Preview to see the inset photo.

Container: Copy This Code

        {
          "role": "container",
          "layout": "smallImageLayout",
          "style": "captionLockupStyle",
          "anchor": {
            "targetAnchorPosition": "top",
            "originAnchorPosition": "top",
            "target": "a1"
          },
          "components": [
            {
              "role": "photo",
              "layout": "noMarginLayout",
              "URL": "bundle://sidebar.jpg",
              "caption": "A caption for the sidebar photo."
            },
            {
              "role": "caption",
              "format": "html",
              "layout": "halfMarginBothContainedLayout",
              "text": "ABOVE: A caption for the sidebar photo. (Attribution)"
            }
          ]
        },

Container: Result

Ellipses (...) indicate lines of code that have been omitted from this example.

{
  ...
  "components": [
    ...
    {
      "role": "section",
      ...
      "components": [
        ...
        {
          "role": "container",
          "layout": "smallImageLayout",
          "style": "captionLockupStyle",
          "anchor": {
            "targetAnchorPosition": "center",
            "target": "a1"
          },
          "components": [
            {
              "role": "photo",
              "layout": "halfMarginAboveContainedLayout",
              "URL": "bundle://sidebar.jpg",
              "caption": "A caption for the sidebar photo."
            },
            {
              "role": "caption",
              "format": "html",
              "layout": "halfMarginBothContainedLayout",
              "text": "ABOVE: A caption for the sidebar photo. (Attribution)"
            }
          ]
        },
        {
          "role": "body",
          "format": "html",
          "layout": "noMarginLayout",
          "text": "<p>Consequatur aut doloribus asperiores repellat. Sed ut perspiciatis unde omnis iste natus error sit volup tatem accusantium doloremque laudantium, totam rem, eaque ipsa quae ab illo inventore veritatis et quasi archit ecto beatae vitae.</p><p>Nemo enim ipsam volup tatem quia voluptas sit aspernatur aut odit aut fugit, sed quia conse quuntur magni. Neque porro quisquam est, qui dolorem ipsum quia dolor sit amet, consectetur, adipisci velit, sed quia non numquam eius modi tempora incidunt <a id='a1' />ut labore et dolore aliquam quaerat voluptatem. Ut enim ad minima veniam, quis nostrum exercitationem ullam corporis suscipit laboriosam.</p><p>Consequatur aut perferendis doloribus asperiores repellat. Sed ut perspiciatis unde omnis iste natus error sit volup tatem accusantium doloremque laudantium, totam rem aperiam, eaque ipsa quae ab illo inventore veritatis et quasi archit ecto beatae vitae dicta. Nemo enim ipsam volup tatem quia voluptas sit <a href='http://www.apple.com'>link text</a> aut odit aut fugit, sed quia conse quuntur perspiciatis doloribus magni dolores.</p><p>Neque porro quisquam est, qui dolorem ipsum quia dolor sit amet, consectetur, adipisci velit, sed quia non numquam eius modi tempora incidunt ut labore et dolore magnam aliquam quaerat voluptatem. Ut enim ad minima veniam, quis nostrum exercitationem ullam suscipit laboriosam.</p>"
        },
        ...
      ]
    }
  ],
  ...
}
