Creating an Inset Pull Quote

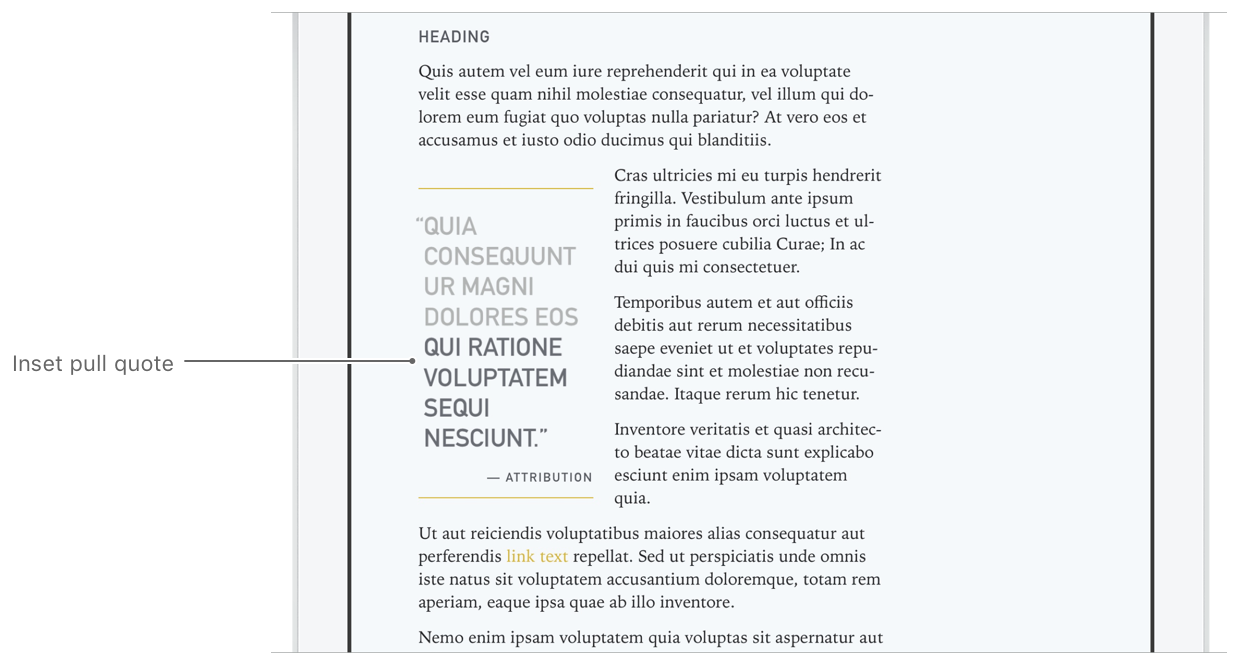

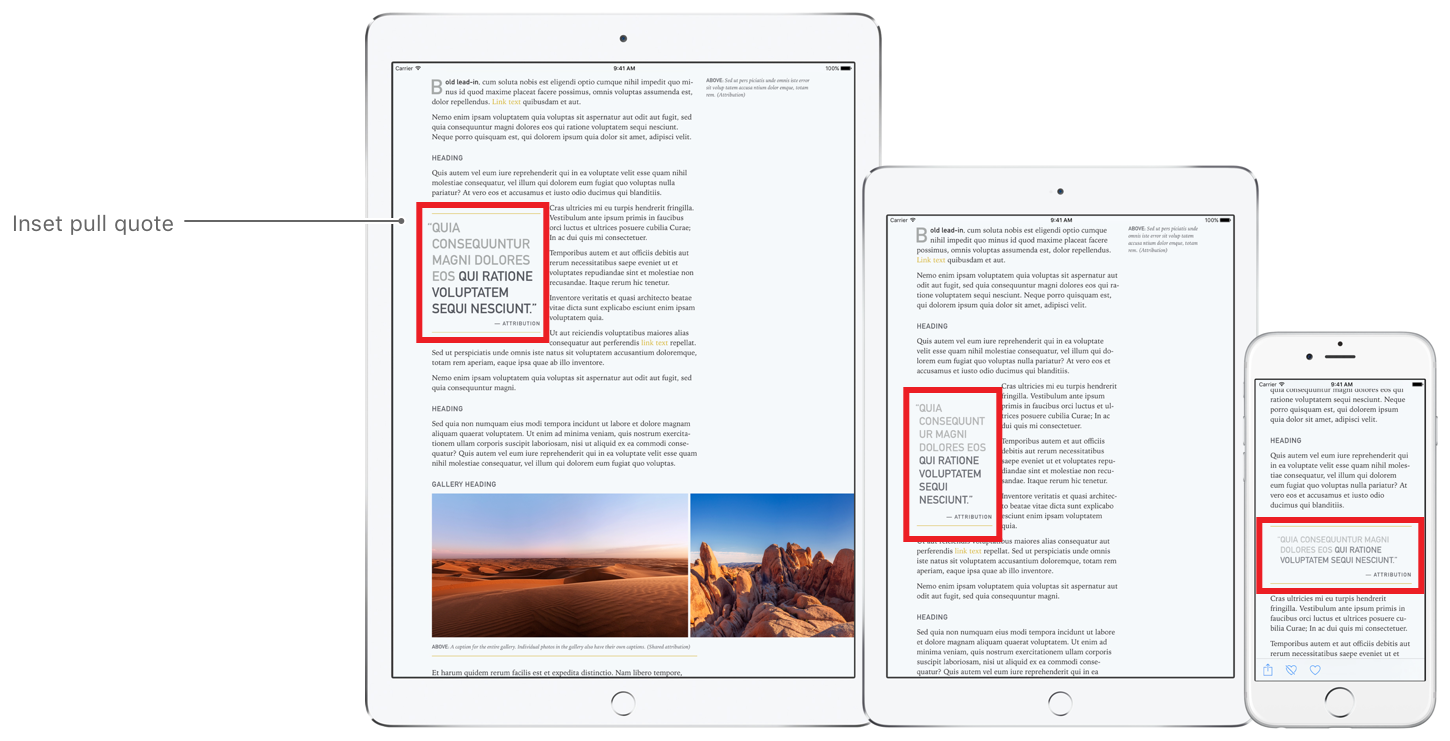

Wrap article body text around an inset pull quote.

Overview

In Creating a Floating Caption, you positioned a component in the article margin. Now, you’ll position a component in the same columns as the body text and make text wrap around it.

On this page, you’ll learn how to:

  • Enclose the pullquote components in a container so that you can position the components as one unit.

  • Use a ComponentLayout object to control the horizontal placement of the container.

  • Use an anchor to control vertical placement and allow body text to flow around the pull quote.

  • Delete some divider components, and replace them with top and bottom borders.

Define Minor Adjustments for Pull Quote Position

Before you can position the pull quote in the leftmost three columns of the article, you must define some new ComponentLayout objects. The quoteLockupLayout object determines that the pull quote is displayed in the left portion of the article. The other two ComponentLayout objects will make minor vertical adjustments to the components’ placement.

  1. Copy the example code Inset Pull Quote Layout: Copy This Code.

  2. Paste the code between the closing brace (}) of the last ComponentLayout object and the closing brace for the whole componentLayouts property.

Your code should look like the example code Inset Pull Quote Layout: Result.

Inset Pull Quote Layout: Copy This Code

,
    "quoteLockupLayout": {
      "columnStart": 0,
      "columnSpan": 6
    },
    "halfMarginAboveQuarterBelowContainedLayout": {
      "margin": {
        "top": 12,
        "bottom": 6
      }
    },
    "halfMarginBelowContainedLayout": {
      "margin": {
        "bottom": 12
      }
    }

Inset Pull Quote Layout: Result

Ellipses (...) indicate lines of code that have been omitted from this example.

{
  ...
  "componentLayouts": {
    ...
    "quoteLockupLayout": {
      "columnStart": 0,
      "columnSpan": 6
    },
    "halfMarginAboveQuarterBelowContainedLayout": {
      "margin": {
        "top": 12,
        "bottom": 6
      }
    },
    "halfMarginBelowContainedLayout": {
      "margin": {
        "bottom": 12
      }
    }
  },
  ...
}

Create Top and Bottom Borders

Your pull quote has dividers above and below it, and you'll replace these with borders. Before you can add top and bottom borders to the pull quote, you must create a ComponentStyle object that creates a top and bottom border.

  1. Copy the example code quoteLockupStyle: Copy This Code.

  2. Paste the code between the closing brace (}) of the last ComponentStyle object and the closing brace for the whole componentStyles property.

Your code should look like the example code quoteLockupStyle: Result.

quoteLockupStyle: Copy This Code

,
    "quoteLockupStyle": {
      "border": {
        "all": {
          "width": 1,
          "color": "#D5B327"
        },
        "top": true,
        "right": false,
        "bottom": true,
        "left": false
      }
    }

quoteLockupStyle: Result

Ellipses (...) indicate lines of code that have been omitted from this example.

{
  ...
  "componentStyles": {
    ...
    "quoteLockupStyle": {
      "border": {
        "all": {
          "width": 1,
          "color": "#D5B327"
        },
        "top": true,
        "right": false,
        "bottom": true,
        "left": false
      }
    }
  },
  ...
}

Recombine Body Components and Use Style and Layout with a Container

  1. In your article.json file, copy the value of text for the first body component whose text begins with Quis autem vel eum. Do not copy the quotation marks.

  2. Paste the text inside the value of text for the body component whose text begins with Cras ultricies mi eu turpis, at the beginning of the value, before the existing <p>. Then wrap the pasted text with <p></p>.

  3. In your article.json file, delete the first body component whose text begins with Quis autem vel eum. This is the component you copied from in step 1.

  4. In your article.json file, delete the two pullquote components and the dividers that precede and follow them. The code you’re deleting begins with an opening brace ({) before "role": "divider", and ends with a closing brace and a comma (},).

  5. Copy the example code Container: Copy This Code.

  6. Paste the code after the closing brace (}) of the body component whose text begins with Quis autem vel eum.

Your code should look like the example code Container: Result.

After you make this change in your code, you can preview your working article.json file in News Preview to see that the pull quote is vertically aligned. Note that the text does not yet wrap around the pull quote.

Container: Copy This Code

        {
          "role": "container",
          "layout": "quoteLockupLayout",
          "style": "quoteLockupStyle",
          "components": [
            {
              "role": "pullquote",
              "format": "html",
              "layout": "halfMarginAboveQuarterBelowContainedLayout",
              "text": "“QUIA CONSEQUUNTUR MAGNI DOLORES EOS QUI RATIONE VOLUPTATEM SEQUI NESCIUNT.”"
            },
            {
              "role": "pullquote",
              "layout": "halfMarginBelowContainedLayout",
              "textStyle": "attribution",
              "text": "— ATTRIBUTION"
            }
          ]
        },

Container: Result

Ellipses (...) indicate lines of code that have been omitted from this example.

{
  ...
  "components": [
    ...
    {
      "role": "section",
      ...
      "components": [
        ...
        {
          "role": "container",
          "layout": "quoteLockupLayout",
          "style": "quoteLockupStyle",
          "components": [
            {
              "role": "pullquote",
              "format": "html",
              "layout": "halfMarginAboveQuarterBelowContainedLayout",
              "text": "“QUIA CONSEQUUNTUR MAGNI DOLORES EOS QUI RATIONE VOLUPTATEM SEQUI NESCIUNT.”"
            },
            {
              "role": "pullquote",
              "layout": "halfMarginBelowContainedLayout",
              "textStyle": "attribution",
              "text": "— ATTRIBUTION"
            }
          ]
        },
        ...
      ]
    }
  ],
  ...
}

Wrap Text Around the Pull Quote

Now that the pullquote components are combined in a container, you can use HTML to anchor the container, as one unit, to a portion of the body text.

To create an anchor to a location in a body component, you’ll define the target inline in the HTML.

  1. Copy the example code Anchor: Copy This Code.

  2. Paste the code inside the container component that encloses the pullquote components, after this line: "style": "quoteLockupStyle",

  3. Copy the code <p id='p1'>

  4. Paste the code inside the body component whose text begins with Quis autem vel eum, replacing a <p> tag, as in the example code Anchor: Result. You may have to scroll to the right in the example code to see this.

Your code should look like the example code Anchor: Result.

After you make these changes in your code, you can preview your working article.json file in News Preview to see the text wrapped around the pull quote.

Anchor: Copy This Code

          "anchor": {
            "targetAnchorPosition": "center",
            "target": "p1"
          },

Anchor: Result

Ellipses (...) indicate lines of code that have been omitted from this example.

{
  ...
  "components": [
    ...
    {
      "role": "section",
      ...
      "components": [
        ...
        {
          "role": "container",
          "layout": "quoteLockupLayout",
          "style": "quoteLockupStyle",
          "anchor": {
            "targetAnchorPosition": "center",
            "target": "p1"
          },
          "components": [
            {
              "role": "pullquote",
              "format": "html",
              "layout": "halfMarginAboveQuarterBelowContainedLayout",
              "text": "“QUIA CONSEQUUNTUR MAGNI DOLORES EOS QUI RATIONE VOLUPTATEM SEQUI NESCIUNT.”"
            },
            {
              "role": "pullquote",
              "layout": "halfMarginBelowContainedLayout",
              "textStyle": "attribution",
              "text": "— ATTRIBUTION"
            }
          ]
        },
        {
          "role": "body",
          "format": "html",
          "layout": "noMarginLayout",
          "text": "<p>Quis autem vel eum iure reprehenderit qui in ea voluptate velit esse quam nihil molestiae consequatur, vel illum qui dolorem eum fugiat quo voluptas nulla pariatur? At vero eos et accusamus et iusto odio ducimus qui blanditiis.</p><p id='p1'>Cras ultricies mi eu turpis hendrerit fringilla. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posuere cubilia Curae; In ac dui quis mi consectetuer.</p><p>Temporibus autem et aut officiis debitis aut rerum necessitatibus saepe eveniet ut et voluptates repudiandae sint et molestiae non recusandae. Itaque rerum hic tenetur.</p><p>Inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo esciunt enim ipsam voluptatem quia.</p><p>Ut aut reiciendis voluptatibus maiores alias consequatur aut perferendis <a href='http://www.apple.com'>link text</a> repellat. Sed ut perspiciatis unde omnis iste natus sit voluptatem accusantium doloremque, totam rem aperiam, eaque ipsa quae ab illo inventore.</p><p>Nemo enim ipsam voluptatem quia voluptas sit aspernatur aut odit aut fugit, sed quia consequuntur magni.</p>"
        },
        ...
      ]
    }
  ],
  ...
}
