Validating a Model for Motion Capture

Verify that your character model matches ARKit’s Motion Capture requirements.

Overview

ARKit’s body-tracking functionality requires models to be in a specific format. Models that don’t match the expected format may work incorrectly, or not work at all. Use the detailed information in this article to verify your character’s scene coordinate system and orientation match ARKit’s expectations, and ensure that your skeleton matches ARKit’s expected joint names and hierarchy for Motion Capture.

Additionally, you can verify models that you’ve rigged according to Rigging a Model for Motion Capture, and use the information to modify your existing rigged humanoid models to match the expected format.

Confirm Scene and Model Coordinate Systems

Your exported model must use a scene coordinate system that uses +Y for up, +Z for forward, and +X for right. Your model also must face forward on the +Z axis.

If your 3D software package doesn’t use this coordinate system by default, you may be able to reconfigure your scene settings or transform the coordinate system as part of the export process.

Validate Joint Names, Relationships, and Orientation

The joints that make up your model’s skeleton must exactly match ARKit’s required joint names. Additionally, the relationship between joints must also match ARKit’s layout.

Although your skeleton must contain all the expected joints in the correct hierarchy, you don’t have to bind vertices to every bone. If your character doesn’t need moving eyes, for example, its skeleton must still have the bones that control the eyes, but you can simply bind no part of your model to those bones so they have no affect on your model.

Make sure to match the orientation of every joint in your model in its bind post to match the values in the model biped skeleton.

Confirm Bind Pose and Binding

Your characters should be rigged in a standard T-pose. Although some software packages allow you to bind your character mesh in multiple poses, your character model should not have any additional bind poses. No more than four joints should contribute to the movement of any single vertex in your model and you should not add any animation keyframes to your character.

Match Torso Joints

The torso of a puppeteering skeleton should contain eight joints: the hip joint, which is the root of the joint hierarchy, and seven spine joints. The hip joint and first spine joint overlap when the character is in the T-pose position.

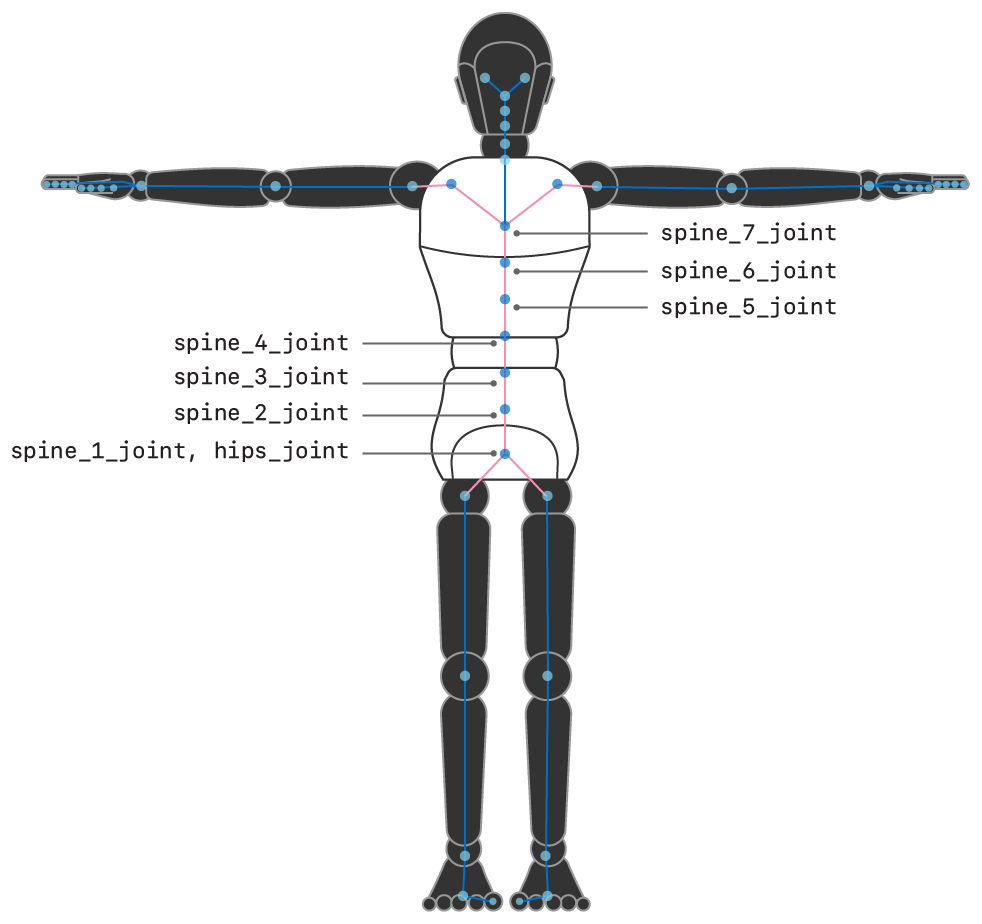

Illustration showing a humanoid figure with the names of the joints and relationships for the torso.

Joint name

Parent joint

hips_joint

root

spine_1_joint

hips_joint

spine_2_joint

spine_1_joint

spine_3_joint

spine_2_joint

spine_4_joint

spine_3_joint

spine_5_joint

spine_4_joint

spine_6_joint

spine_5_joint

spine_7_joint

spine_6_joint

Review Head and Neck Joints

The head contains four neck joints extending from the spine, as well as joints for controlling the head, eyes and eyelids, nose, chin, and jaw.

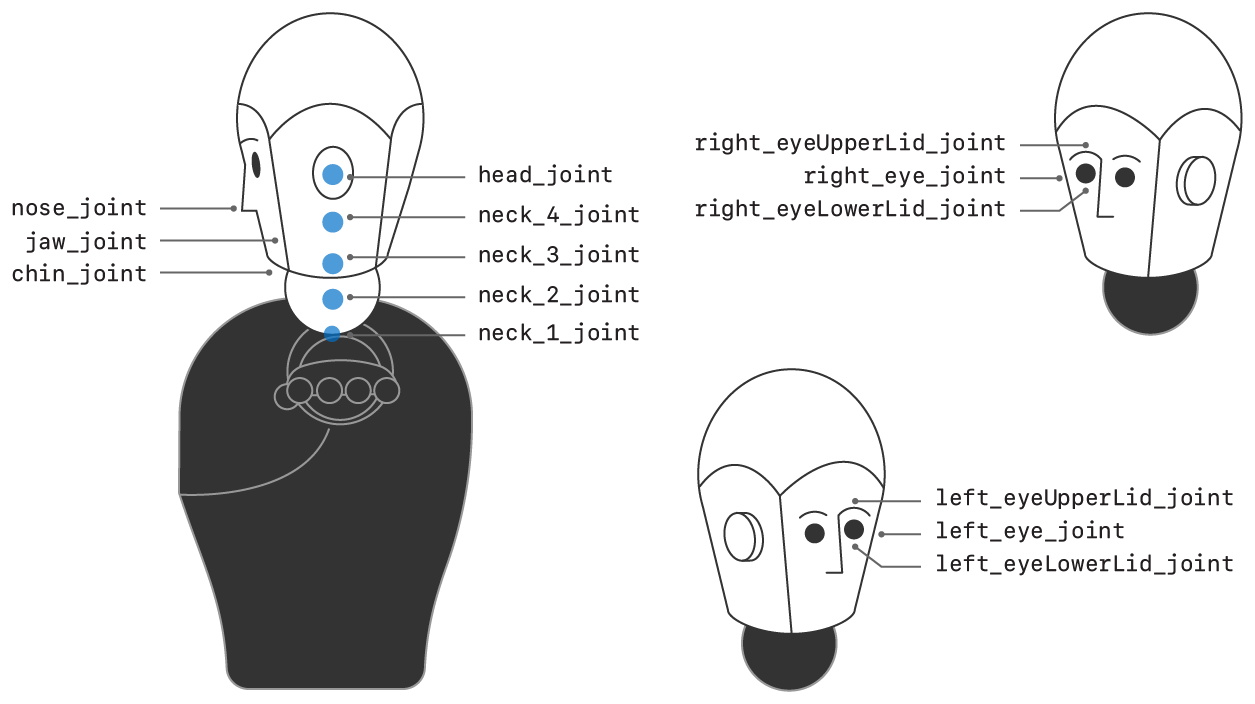

Illustration showing just the head and neck portion of the humanoid character, with the joint names labeled.

Joint name

Parent joint

neck_1_joint

spine_7_joint

neck_2_joint

neck_1_joint

neck_3_joint

neck_2_joint

neck_4_joint

neck_3_joint

head_joint

neck_4_joint

jaw_joint

head_joint

chin_joint

jaw_joint

nose_joint

head_joint

right_eye_joint

head_joint

right_eyeUpperLid_joint

right_eye_joint

right_eyeLowerLid_joint

right_eye_joint

right_eyeball_joint

right_eye_joint

left_eye_joint

head_joint

left_eyeUpperLid_joint

left_eye_joint

left_eyeLowerLid_joint

left_eye_joint

left_eyeball_joint

left_eye_joint

Review Arm and Shoulder Joints

Both arms descend from the seventh spine joint and are comprised of three joints, representing the shoulder, elbow, and wrist.

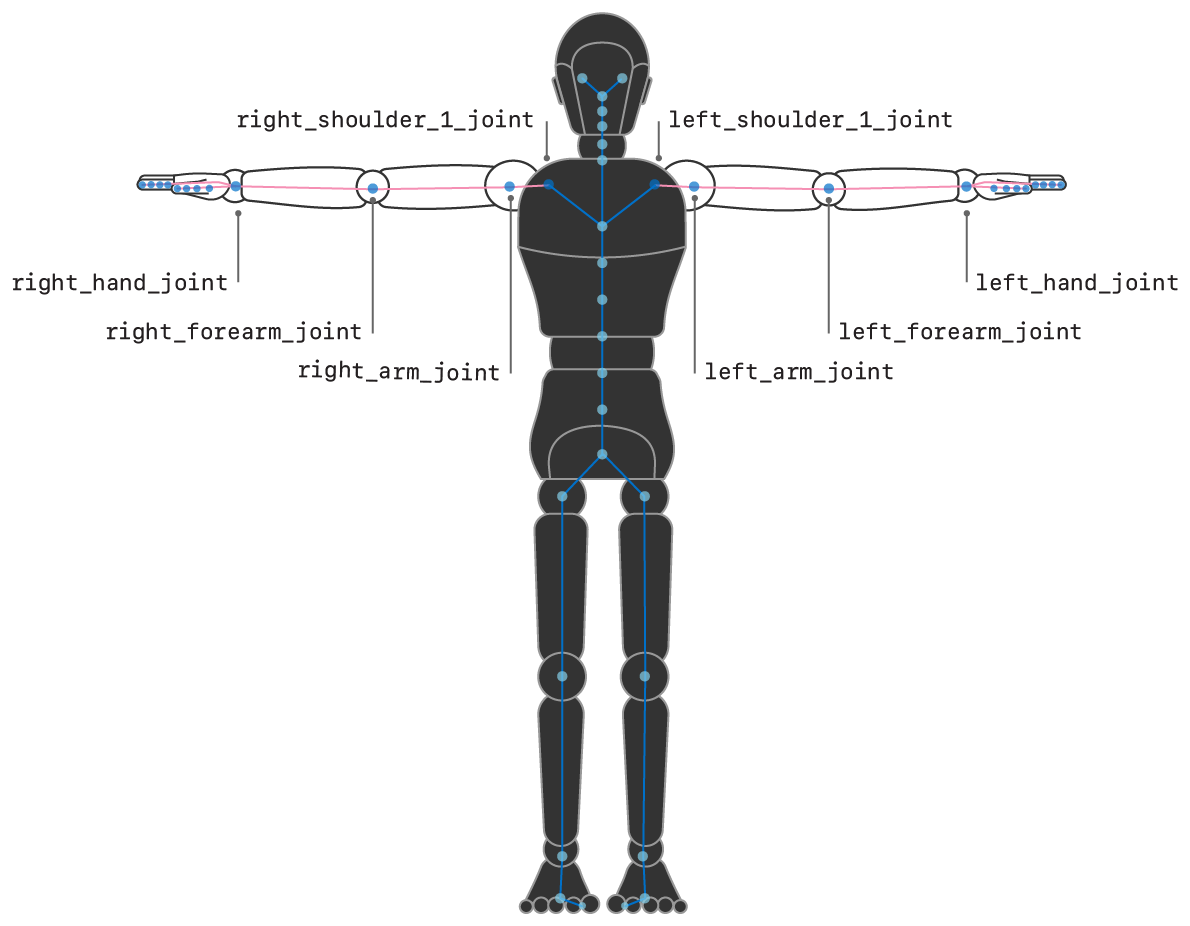

Illustration showing a humanoid with the joint names in the arms labeled.

Joint name

Parent joint

right_shoulder_1_joint

spine_7_joint

right_arm_joint

right_shoulder_1_joint

right_forearm_joint

right_arm_joint

left_shoulder_1_joint

spine_7_joint

left_arm_joint

left_shoulder_1_joint

left_forearm_joint

left_arm_joint

Review Leg and Foot Joints

The leg and foot joints of the model descend from the hips, with joints for moving the upper legs, lower legs, feet, and toes.

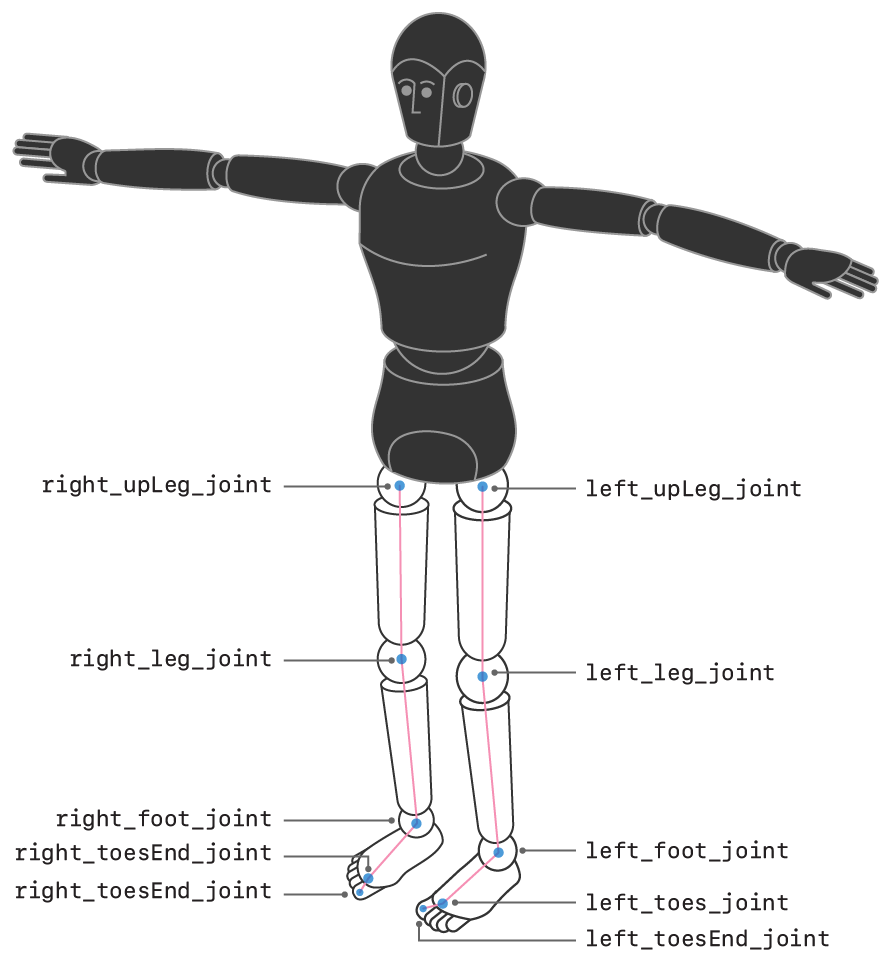

Illustration of a humanoid figure with the leg joints highlighted and labeled.

Joint name

Parent joint

left_upLeg_joint

hips_joint

left_leg_joint

left_upLeg_joint

left_foot_joint

left_leg_joint

left_toes_joint

left_foot_joint

left_toesEnd_joint

left_toes_joint

right_upLeg_joint

hips_joint

right_leg_joint

right_upLeg_joint

right_foot_joint

right_leg_joint

right_toes_joint

right_foot_joint

right_toesEnd_joint

right_toes_joint

Review Right-Hand Joints

The hands contain many joints, with each of the four fingers comprised of five joints descending from the hand. The thumb has only four joints, but also descends from the hand joint.

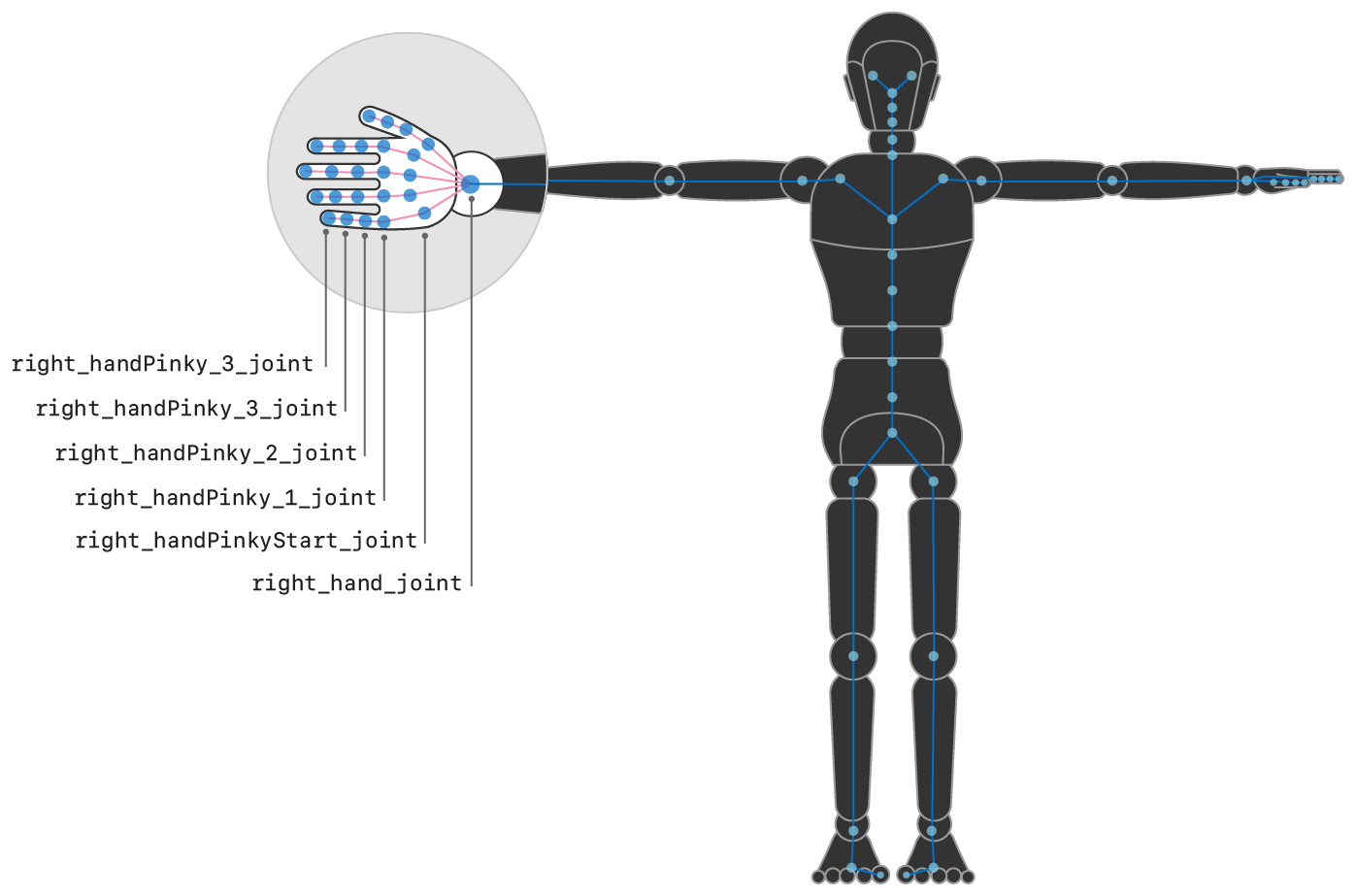

Illustration showing the right hand of the humanoid figure highlighted, with some of the joints named.

Joint name

Parent joint

right_hand_joint

right_forearm_joint

right_handPinkyStart_joint

right_hand_joint

right_handPinky_1_joint

right_handPinkyStart_joint

right_handPinky_2_joint

right_handPinky_1_joint

right_handPinky_3_joint

right_handPinky_2_joint

right_handPinkyEnd_joint

right_handPinky_3_joint

right_handRingStart_joint

right_hand_joint

right_handRing_1_joint

right_handRingStart_joint

right_handRing_2_joint

right_handRing_1_joint

right_handRing_3_joint

right_handRing_2_joint

right_handRingEnd_joint

right_handRing_3_joint

right_handMidStart_joint

right_hand_joint

right_handMid_1_joint

right_handMidStart_joint

right_handMid_2_joint

right_handMid_1_joint

right_handMid_3_joint

right_handMid_2_joint

right_handMidEnd_joint

right_handMid_3_joint

right_handIndexStart_joint

right_hand_joint

right_handIndex_1_joint

right_handIndexStart_joint

right_handIndex_2_joint

right_handIndex_1_joint

right_handIndex_3_joint

right_handIndex_2_joint

right_handIndexEnd_joint

right_handIndex_3_joint

right_handThumbStart_joint

right_hand_joint

right_handThumb_1_joint

right_handThumbStart_joint

right_handThumb_2_joint

right_handThumb_1_joint

right_handThumbEnd_joint

right_handThumb_2_joint

Review Left-Hand Joints

The structure and naming convention of the joints of the left hand are similar to those of the right.

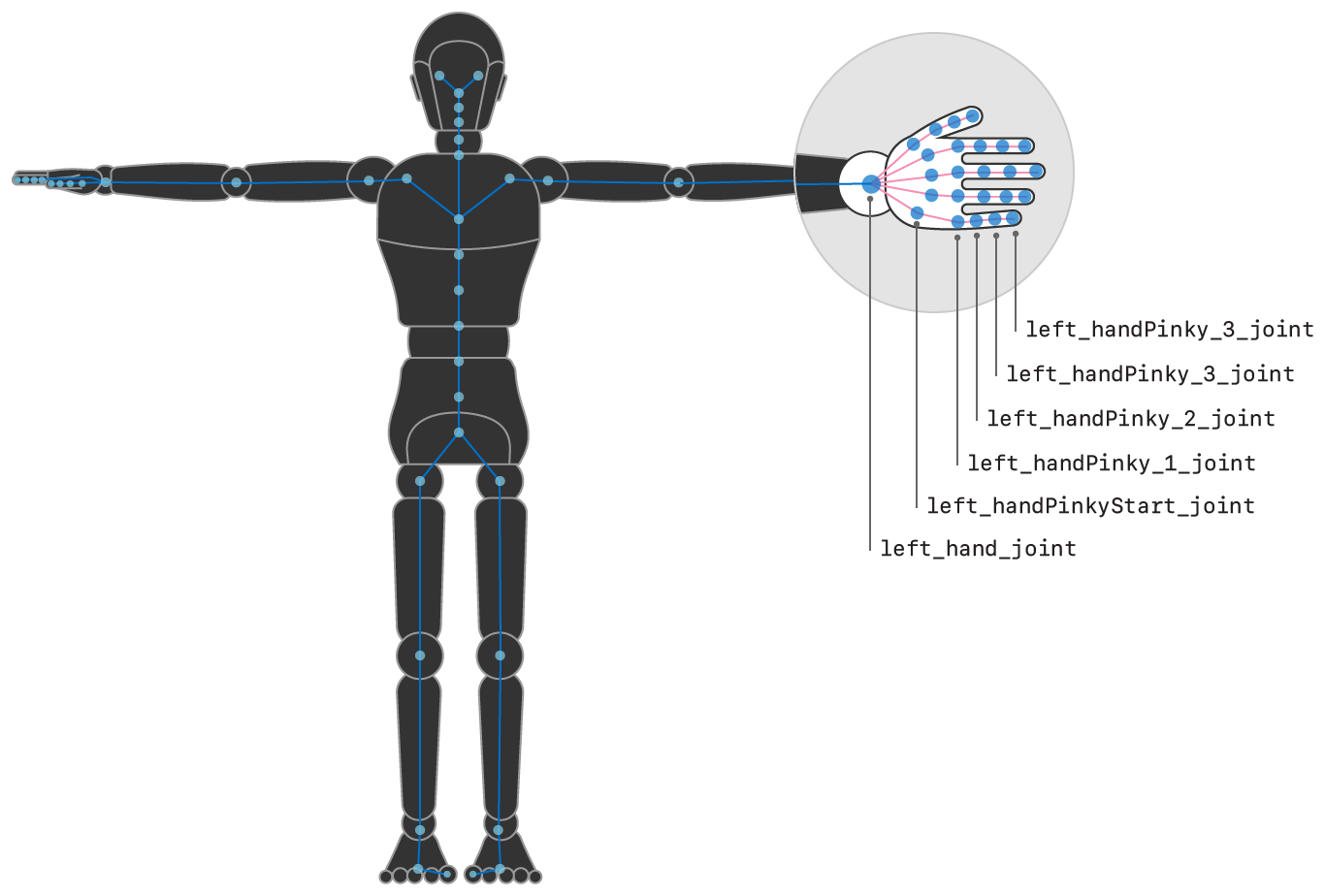

Illustration showing the left hand of the humanoid figure highlighted, with some of the joints named.

Joint name

Parent joint

left_hand_joint

left_forearm_joint

left_handPinkyStart_joint

left_hand_joint

left_handPinky_1_joint

left_handPinkyStart_joint

left_handPinky_2_joint

left_handPinky_1_joint

left_handPinky_3_joint

left_handPinky_2_joint

left_handPinkyEnd_joint

left_handPinky_3_joint

left_handRingStart_joint

left_hand_joint

left_handRing_1_joint

left_handRingStart_joint

left_handRing_2_joint

left_handRing_1_joint

left_handRing_3_joint

left_handRing_2_joint

left_handRingEnd_joint

left_handRing_3_joint

left_handMidStart_joint

left_hand_joint

left_handMid_1_joint

left_handMidStart_joint

left_handMid_2_joint

left_handMid_1_joint

left_handMid_3_joint

left_handMid_2_joint

left_handMidEnd_joint

left_handMid_3_joint

left_handIndexStart_joint

left_hand_joint

left_handIndex_1_joint

left_handIndexStart_joint

left_handIndex_2_joint

left_handIndex_1_joint

left_handIndex_3_joint

left_handIndex_2_joint

left_handIndexEnd_joint

left_handIndex_3_joint

left_handThumbStart_joint

left_hand_joint

left_handThumb_1_joint

left_handThumbStart_joint

left_handThumb_2_joint

left_handThumb_1_joint

left_handThumbEnd_joint

left_handThumb_2_joint
