Class

CLKComplicationTemplateCircularSmallRingImage

A template for displaying a single image surrounded by a configurable progress ring.

Declaration

class CLKComplicationTemplateCircularSmallRingImage : CLKComplicationTemplate

Overview

This template belongs to the CLKComplicationFamily.circularSmall family. Figure 1 shows the layout of the data and where a template of this type might appear on the clock face.

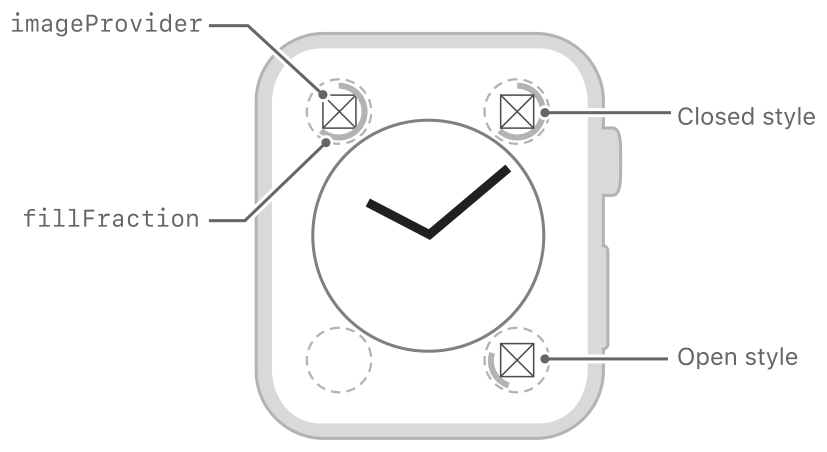

Diagram showing the layout of an image inside a small progress ring. — **Figure 1**
Layout of a circular small ring image template

Table 1 lists the dimensions of the image you use in this template. All dimensions are in pixels. All images must be specified as @2x images for display on Apple Watch, so the point-based dimensions are half the listed size.

Table 1

Image dimensions

Apple Watch Size	Width	Height
38 mm	40 pixels	40 pixels
40 mm	44 pixels	44 pixels
42 mm	44 pixels	44 pixels
44 mm	48 pixels	48 pixels

Instead of providing multiple images with different resolutions, you can provide a single, scaleable PDF asset. For more information, see Manage Assets.
