Class

CLKComplicationTemplateExtraLargeSimpleImage

A template for displaying an image.

Declaration

class CLKComplicationTemplateExtraLargeSimpleImage : CLKComplicationTemplate

Overview

This template belongs to the CLKComplicationFamily.extraLarge family.

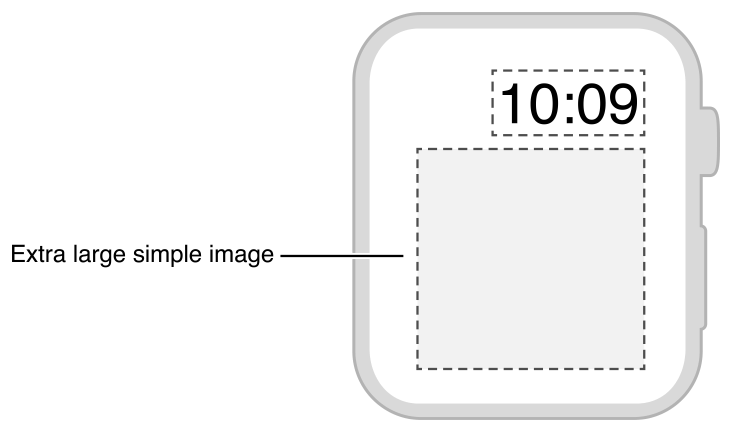

Figure 1 shows the layout of the data and where a template of this type might appear on the clock face.

Figure 1

Layout of an extra large image template

Diagram showing the layout of a single image.

Table 1 lists the dimensions of the image you use in this template. All dimensions are in pixels. All images must be specified as @2x images for display on Apple Watch, so the point-based dimensions are half the listed size.

Table 1

Image dimensions

Apple Watch Size

Width

Height

38 mm

182 pixels

182 pixels

40 mm

203 pixels

203 pixels

42 mm

203 pixels

203 pixels

44 mm

224 pixels

224 pixels

Instead of providing multiple images with different resolutions, you can provide a single, scaleable PDF asset. For more information, see Manage Assets.

Topics

Setting the Complication Data

var imageProvider: CLKImageProvider

The image to display in the complication.

Relationships

Conforms To

See Also

Image Templates

class CLKComplicationTemplateExtraLargeRingImage

A template for displaying an image encircled by a configurable progress ring.

class CLKComplicationTemplateExtraLargeStackImage

A template for displaying a single image with a short line of text below it.
