Class

CLKComplicationTemplateModularSmallSimpleImage

A template for displaying an image.

Declaration

class CLKComplicationTemplateModularSmallSimpleImage : CLKComplicationTemplate

Overview

This template belongs to the CLKComplicationFamily.modularSmall family. Figure 1 shows the layout of the data and where a template of this type might appear on the clock face.

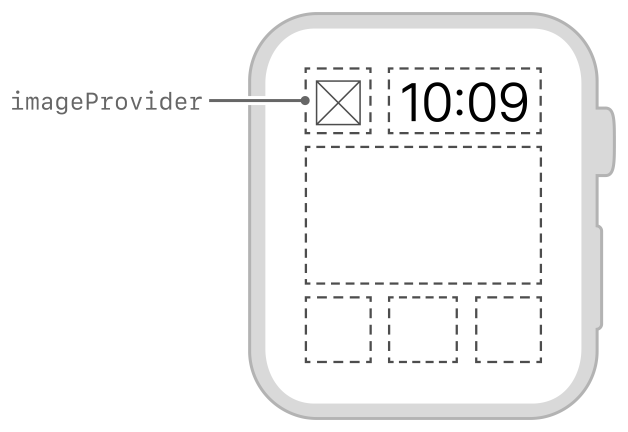

Figure 1

Layout of a modular small simple image template

Diagram showing the layout of a single image.

Table 1 lists the dimensions of the image you use in this template. All dimensions are in pixels. All images must be specified as @2x images for display on Apple Watch, so the point-based dimensions are half the listed size.

Table 1

Image dimensions

Apple Watch size

Width

Height

38 mm

52 pixels

52 pixels

40 mm

58 pixels

58 pixels

42 mm

58 pixels

58 pixels

44 mm

64 pixels

64 pixels

Instead of providing multiple images with different resolutions, you can provide a single, scaleable PDF asset. For more information, see Manage Assets.

Topics

Setting the Complication Data

var imageProvider: CLKImageProvider

The image to display in the complication.

Relationships

Conforms To

See Also

Image Templates

class CLKComplicationTemplateModularSmallRingImage

A template for displaying an image encircled by a configurable progress ring

class CLKComplicationTemplateModularSmallStackImage

A template for displaying a single image with a short line of text below it.
