Instance Property

chamferProfile

A path that determines the cross-sectional contour of each chamfered edge.

Declaration

iOS, Mac Catalyst, tvOS, watchOS
@NSCopying var chamferProfile: UIBezierPath? { get set }
macOS
@NSCopying var chamferProfile: NSBezierPath? { get set }

Discussion

The value of this property must be a two-dimensional path starting at the point {1, 0} and ending at the point {0, 1}, determining the contour of the shape along its extruded sides, as illustrated in the figure below. If the value of this property is nil and the value of the chamferRadius property is greater than zero, SceneKit uses a chamfer profile in the shape of a quarter circle.

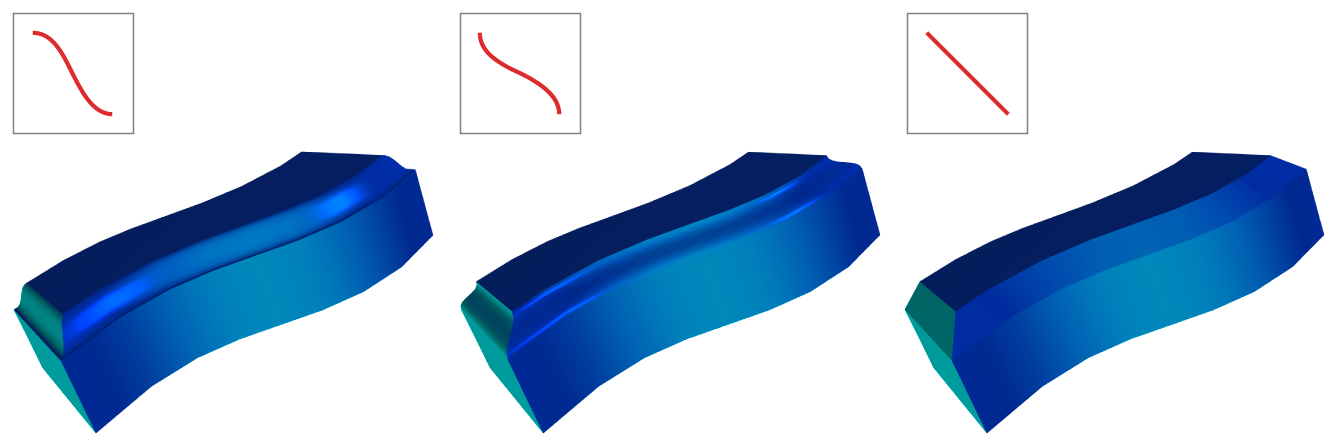

Figure 1

Example chamfer profile curves and their effects
