Instance Property


A path that determines the cross-sectional contour of each chamfered edge.


iOS, Mac Catalyst, tvOS, watchOS
@NSCopying var chamferProfile: UIBezierPath? { get set }
@NSCopying var chamferProfile: NSBezierPath? { get set }


The value of this property must be a two-dimensional path starting at the point {1, 0} and ending at the point {0, 1}, determining the contour of the shape along its extruded sides. If the value of this property is nil and the value of the chamferRadius property is greater than zero, SceneKit uses a chamfer profile in the shape of a quarter circle. Figure 1 illustrates various chamfer profiles applied to the shape of a tilde (~) character.

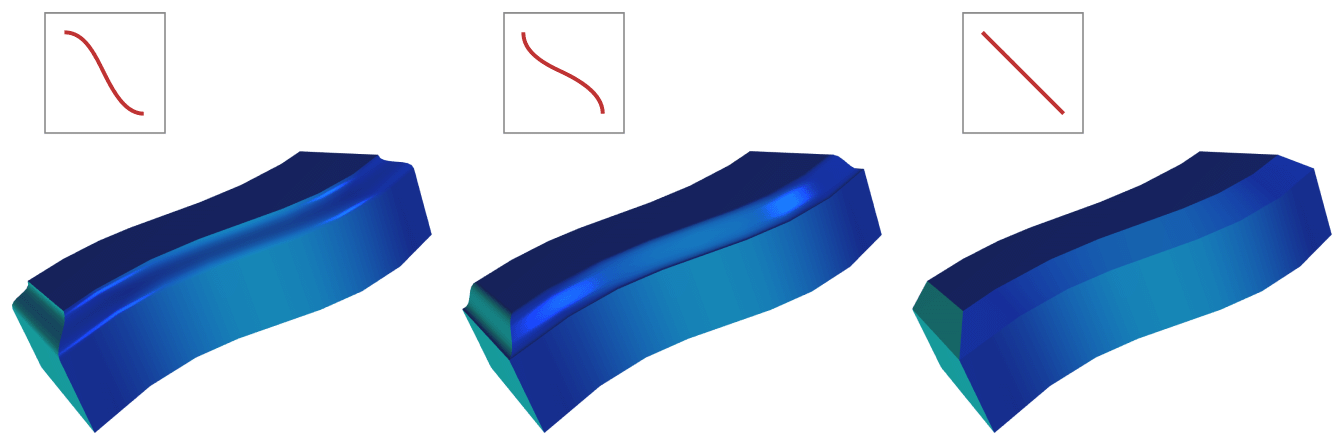

Figure 1

Example chamfer profiles and their effects

See Also

Managing the Text’s 3D Representation

var flatness: CGFloat

A number that determines the accuracy or smoothness of the text geometry.

var extrusionDepth: CGFloat

The extent of the extruded text in the z-axis direction. Animatable.

var chamferRadius: CGFloat

The width or depth of each chamfered edge. Animatable.
