Enumeration Case

SKRepeatModeLoop

When a sample is calculated, the sequence loops back to the beginning of the sequence. For example, if the last keyframe’s time value is 0.5, then a sample at any time value from 0.5 to 1.0 returns the same value as the sequence did from 0.0 to 0.5.

Declaration

SKRepeatModeLoop = 2

Discussion

Given a sequence with the key values of [5, 1, 10] and times of [0, 0.25, 0.5], loop repeat mode produces a set of values that repeats the previous keyframes when the sample time is 0.5:

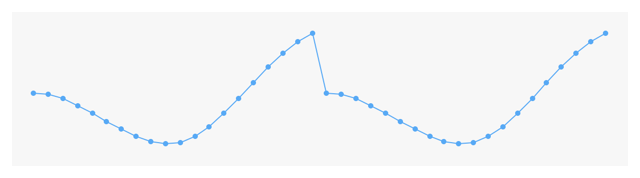

Figure 1

Playground graph generated by SKKeyframeSequence using loop repeat mode

Playground graph generated by SKKeyframeSequence using loop repeat mode
