formTemplate

Provides the ability to gather information from the user.

Overview

Use the formTemplate element to gather information from the user; for example, requiring a password to access your app. The banner area can contain an image and a description of your product. The user enters text in the text field directly below the banner using the automatically generated keyboard. Use the footer area to contain any user interaction buttons. The following figure shows the basic layout for a formTemplate page. The theme for the form template defaults to the system preference.

Layout diagram showing a banner area containing an image and description at the top, a text field followed by a keyboard below, and a footer area at the bottom.

Form Template

The following listing shows the main elements of the formTemplate element in TVML format.

<formTemplate>
    <background>
        …
    </background>
    <banner>
        <img />
        <description>…</description>
    </banner>
    <textField>…</textField>
    <footer>…</footer>
</formTemplate>

Element Descriptions

background

Only accepts img and heroImg elements in the background.

banner

Information displayed along the top of the screen that is typically used to provide instructions to the user.

description

The text used to describe what the user needs to enter.

footer

Information displayed along the bottom of the screen, such as a Submit button for the user to commit the information entered in textField.


An image of the product.

textField

User input field.

Example

The following listing shows the TVML for a formTemplate example. The interactive keyboard is automatically created. The footer area contains a button that can submit the user input. Modify your main JavaScript file to accept the user input from the button. For more information on available JavaScript functions, see TVMLKit JS.

<document>
    <formTemplate>
        <banner>
            <img src="path to images on your server/Car_Movie_800X400.png" width="800" height="400"/>
            <description>Enter email for access</description>
        </banner>
        <textField>tclark@example.com</textField>
        <footer>
            <button>
                <text>Submit</text>
            </button>
        </footer>
    </formTemplate>
</document>

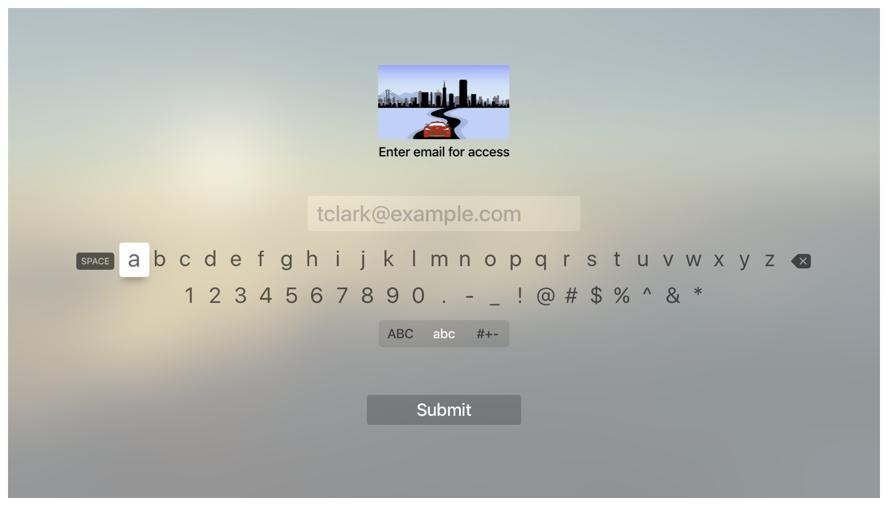

The following figure shows the output for the above example:

Screenshot showing a product image and a prompt for the user's email address. A keyboard is displayed for email entry.

Topics

Valid TVML Attributes

binding

Associates information in a data item with an element.

layoutDirection

Specifies the direction in which text is displayed.

prototype

Associates a data item type with an element.

theme

Sets the color scheme for an element.
