Adding Identifiable Symbol Names to a Crash Report

Replace hexadecimal addresses in a crash report with function names and line numbers that correspond to your app’s code.

Overview

When an app crashes, the operating system collects diagnostic information about what the app was doing at the time of crash. One of the most important parts of the crash report are the thread backtraces, reported as hexadecimal addresses. You translate these thread backtraces into readable function names and line numbers in source code, a process called symbolication, then use that information to understand why your app crashed. In many cases, the Crashes organizer in Xcode automatically symbolicate the crash reports for you.

Determine If a Crash Report is Symbolicated

To diagnose an app issue using a crash report, you need a fully symbolicated or partially symbolicated crash report. An unsymbolicated crash report is rarely useful.

A fully symbolicated crash report has function names on every frame of the backtrace, instead of hexadecimal memory addresses. Each frame represents a single function call that’s currently running on a specific thread, and provides a view of the functions from your app and the operating system frameworks that were executing at the time your app crashed. Fully symbolicated crash reports give you the most insight about the crash. Once you have a fully symbolicated crash report, consult Analyzing Crash Reports for details about determing the source of the crash.

An example of a fully symbolicated crash report:

Thread 0 name:  Dispatch queue: com.apple.main-thread
Thread 0 Crashed:
0   libswiftCore.dylib                0x00000001bd38da70 specialized _fatalErrorMessage+ 2378352 (_:_:file:line:flags:) + 384
1   libswiftCore.dylib                0x00000001bd38da70 specialized _fatalErrorMessage+ 2378352 (_:_:file:line:flags:) + 384
2   libswiftCore.dylib                0x00000001bd15958c _ArrayBuffer._checkInoutAndNativeTypeCheckedBounds+ 66956 (_:wasNativeTypeChecked:) + 200
3   libswiftCore.dylib                0x00000001bd15c814 Array.subscript.getter + 88
4   TouchCanvas                       0x00000001022cbfa8 Line.updateRectForExistingPoint(_:) (in TouchCanvas) + 656
5   TouchCanvas                       0x00000001022c90b0 Line.updateWithTouch(_:) (in TouchCanvas) + 464
6   TouchCanvas                       0x00000001022e7374 CanvasView.updateEstimatedPropertiesForTouches(_:) (in TouchCanvas) + 708
7   TouchCanvas                       0x00000001022df754 ViewController.touchesEstimatedPropertiesUpdated(_:) (in TouchCanvas) + 304
8   TouchCanvas                       0x00000001022df7e8 @objc ViewController.touchesEstimatedPropertiesUpdated(_:) (in TouchCanvas) + 120
9   UIKitCore                         0x00000001b3da6230 forwardMethod1 + 136
10  UIKitCore                         0x00000001b3da6230 forwardMethod1 + 136
11  UIKitCore                         0x00000001b3e01e24 -[_UIEstimatedTouchRecord dispatchUpdateWithPressure:stillEstimated:] + 340

A partially symbolicated crash report has function names for some of the backtrace frames, and hexadecimal addresses for other frames of the backtrace. A partially symbolicated crash report may contain enough information to understand the crash, depending upon the type of crash and which frames in the backtraces are symbolicated. However, you should still Symbolicate the Crash Report in Xcode to make the report fully symbolicated, which will give you a complete understanding of the crash.

An example of a partially symbolicated crash report:

Thread 0 name:  Dispatch queue: com.apple.main-thread
Thread 0 Crashed:
0   libswiftCore.dylib                0x00000001bd38da70 specialized _fatalErrorMessage+ 2378352 (_:_:file:line:flags:) + 384
1   libswiftCore.dylib                0x00000001bd38da70 specialized _fatalErrorMessage+ 2378352 (_:_:file:line:flags:) + 384
2   libswiftCore.dylib                0x00000001bd15958c _ArrayBuffer._checkInoutAndNativeTypeCheckedBounds+ 66956 (_:wasNativeTypeChecked:) + 200
3   libswiftCore.dylib                0x00000001bd15c814 Array.subscript.getter + 88
4   TouchCanvas                       0x00000001022cbfa8 0x1022c0000 + 49064
5   TouchCanvas                       0x00000001022c90b0 0x1022c0000 + 37040
6   TouchCanvas                       0x00000001022e7374 0x1022c0000 + 160628
7   TouchCanvas                       0x00000001022df754 0x1022c0000 + 128852
8   TouchCanvas                       0x00000001022df7e8 0x1022c0000 + 129000
9   UIKitCore                         0x00000001b3da6230 forwardMethod1 + 136
10  UIKitCore                         0x00000001b3da6230 forwardMethod1 + 136
11  UIKitCore                         0x00000001b3e01e24 -[_UIEstimatedTouchRecord dispatchUpdateWithPressure:stillEstimated:] + 340

Unsymbolicated crash reports contain hexadecimal addresses of executable code within the loaded binary images. These reports don’t contain any function names in the backtraces. Because an unsymbolicated crash report is rarely useful, Symbolicate the Crash Report in Xcode.

An example of an unsymbolicated symbolicated crash report:

Thread 0 name:  Dispatch queue: com.apple.main-thread
Thread 0 Crashed:
0   libswiftCore.dylib                0x00000001bd38da70 0x1bd149000 + 2378352
1   libswiftCore.dylib                0x00000001bd38da70 0x1bd149000 + 2378352
2   libswiftCore.dylib                0x00000001bd15958c 0x1bd149000 + 66956
3   libswiftCore.dylib                0x00000001bd15c814 0x1bd149000 + 79892
4   TouchCanvas                       0x00000001022cbfa8 0x1022c0000 + 49064
5   TouchCanvas                       0x00000001022c90b0 0x1022c0000 + 37040
6   TouchCanvas                       0x00000001022e7374 0x1022c0000 + 160628
7   TouchCanvas                       0x00000001022df754 0x1022c0000 + 128852
8   TouchCanvas                       0x00000001022df7e8 0x1022c0000 + 129000
9   UIKitCore                         0x00000001b3da6230 0x1b3348000 + 10871344
10  UIKitCore                         0x00000001b3da6230 0x1b3348000 + 10871344
11  UIKitCore                         0x00000001b3e01e24 0x1b3348000 + 11247140

Symbolicate the Crash Report in Xcode

Xcode is the preferred way to symbolicate crash reports because it uses all available dSYM files on your Mac at once. For specialized debugging situations, such as when you have an unsymbolicated stack trace in the Xcode debugger without a full crash report, you can Symbolicate the Crash Report with the Command Line to symbolicate each frame.

To symbolicate in Xcode, click the Device Logs button in the Devices and Simulators window, then drag and drop the crash report file into the list of device logs.

If the crash report does not symbolicate, or only partly symbolicates, Xcode can’t locate matching symbol information, and you’ll need to acquire symbol information in these ways:

  • If the operating system’s frameworks aren’t symbolicated, you need device symbol information matching the operating system version recorded in the crash report. To address this, see Acquire Device Symbol Information.

  • If the frames for your app, app extension, or frameworks aren’t symbolicated, you need to acquire dSYM files from the App Store, or locate the existing dSYM files using Spotlight. To address this, see Acquire Updated App Symbol Information from the App Store and Locate a dSYM Using Spotlight. If your app uses frameworks built by a third-party, you may need to ask the framework vendor for the dSYM file.

Once you have a fully symbolicated crash report, consult Analyzing Crash Reports to determine the source of the crash.

Acquire Device Symbol Information

To make symbols from the operating system frameworks identifiable in a crash report, you need to collect the symbols for the system frameworks from a device. For iOS, iPadOS, watchOS, and tvOS apps, Xcode automatically copies operating system symbols from each device you connect to your Mac. For macOS and Mac Catalyst apps, symbolicate the crash log by using Xcode on a version of macOS that matches the macOS version named in the crash report.

The symbols for system frameworks are specific to the operating system release and the CPU architecture of the device. For example, the symbols for an iPhone running iOS 13.1.0 aren’t the same as the symbols for the same iPhone running iOS 13.1.2. If your app runs on operating system versions that support multiple CPU architectures, such as arm64 and arm64e, a device with an arm64 architecture will only contain the symbols for the arm64 version of the operating system frameworks; it won’t have symbols for the operating system frameworks on arm64e devices.

Acquire Updated App Symbol Information from the App Store

Bitcode is an intermediate representation of the compiled code. When you submit a build with bitcode to the App Store, the App Store compiles the bitcode to machine code. The App Store may compile the app again in the future, to take advantage of newer compiler improvements without any action on your part.

If you distribute your app through the App Store with bitcode enabled, your Mac won’t contain the dSYM files that match the final build, because the final compilation of your app from bitcode occurs in the App Store. This final App Store created build has a different build UUID and different dSYM files than the build in the orginial Xcode archive. Use the Xcode Organizer to download the dSYM files for the build created by the App Store.

Locate a dSYM Using Spotlight

To determine whether the dSYM file you need to symbolicate a hexadecimal addresses for one of your binaries is present on your Mac:

  1. Find a frame in the backtrace that isn’t symbolicated. Note the name of the binary image in the second column.

  2. Look for a binary image with that name in the list of binary images at the bottom of the crash report. This list contains the build UUID of each binary image that was loaded into the process at the time of the crash. Use the grep command line tool to find the entry in the list of binary images:

    % grep --after-context=1000 "Binary Images:" <Path to Crash Report> | grep <Binary Name>


After getting the build UUID from the binary image section:

  1. Convert the build UUID of the binary image to a 32-character string, that’s separated into groups of 8-4-4-4-12 (XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX). All letters must be uppercase.

  2. Search for the build UUID using the mdfind command line tool query (including quotation marks):

    % mdfind "com_apple_xcode_dsym_uuids == <UUID>"


If Spotlight finds a dSYM file for the build UUID, mdfind prints the path to the dSYM file.

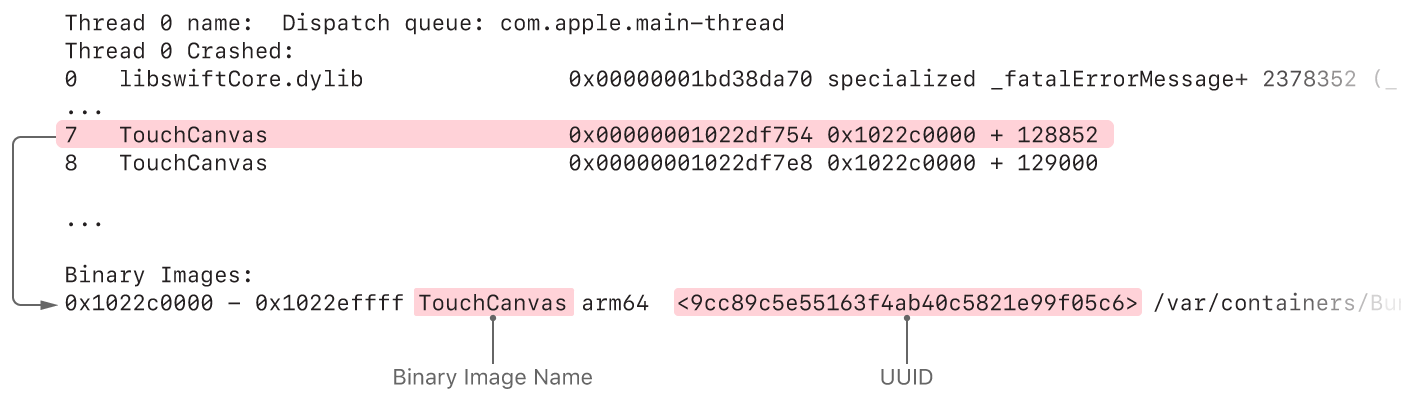

A crash report with information required to locate a dSYM file using the mdfind command highlighted.

Using the information in this example, the commands to find the dSYM are:

% grep --after-context=1000 "Binary Images:" <Path to Crash Report> | grep TouchCanvas
0x1022c0000 - 0x1022effff TouchCanvas arm64  <9cc89c5e55163f4ab40c5821e99f05c6>

% mdfind "com_apple_xcode_dsym_uuids == 9CC89C5E-5516-3F4A-B40C-5821E99F05C6"

Once you find the dSYM file, Match Build UUIDs to confirm that its build UUID matches the binary image’s build UUID. Once you verify that build UUIDs match, either Symbolicate the Crash Report in Xcode or Symbolicate the Crash Report with the Command Line.

If Spotlight doesn’t find a matching dSYM, mdfind won’t print anything and you’ll need to:

  • Download the dSYM files from the App Store if your app was built with bitcode enabled. See Acquire Updated App Symbol Information from the App Store.

  • Verify that you still have the Xcode archive for the version of your app that crashed. If you no longer have this archive, you can’t symbolicate your app’s stack frames for that version of your app. To avoid this in the future, release a new version of your app, and retain the Xcode archive for that version. You’ll then be able to symbolicate crash reports for the new version of your app.

  • Ensure the Xcode archive is located somewhere Spotlight can find it, such as your macOS home directory.

  • Verify that your build produces debugging information. See Building Your App To Include Debugging Information.

Match Build UUIDs

If you have a binary or a dSYM that you think can be used to symbolicate a crash report, verify that the build UUIDs match, using the dwarfdump command. If the build UUIDs don’t match each other or don’t match the build UUID listed in the Binary Images section of the crash report, you can’t use the files to symbolicate that crash report.

% dwarfdump --uuid <PathToDSYMFile>/Contents/Resources/DWARF/<BinaryName>
% dwarfdump --uuid <PathToBinary>

Restore Hidden Symbols

For app builds that you submit with bitcode to the App Store, Xcode replaces the symbols in your app’s dSYM files with obfuscated symbols such as _hidden#109_. Building Your App To Include Debugging Information explains this type of symbol. Before symbolicating crash reports, replace these hidden symbols in the dSYM files downloaded from App Store Connect with the symbols from your source code. Xcode automatically does this replacement when you download the dSYMs in Xcode. But, if you use the App Store Connect website to download the dSYM files, you need to use the following command on every downloaded dSYM file to do the symbol replacement:

% dsymutil -symbol-map <PathToXcodeArchive>/MyGreatApp.xcarchive/BCSymbolMaps <PathToDownloadedDSYMs>/<UUID>.dSYM

Symbolicate the Crash Report with the Command Line

For specialized debugging situations, such as symbolicating parts of a backtrace provided by the LLDB command line, you can symbolicate a crash report using the atos command. The atos command converts hexadecimal addresses to the identifiable function name and line number from your source code, if symbol information is available. To symbolicate using atos:

  1. Find a frame in the backtrace that you want to symbolicate. Note the name of the binary image in the second column, and the address in the third column.

  2. Look for a binary image with that name in the list of binary images at the bottom of the crash report. Note the architecture and load address of the binary image.

  3. Locate the dSYM file for the binary. If you don’t know where the dSYM file is located, see Locate a dSYM Using Spotlight to find the dSYM file that matches the build UUID of the binary image.

  4. Symbolicate the addresses in the backtrace using atos with the formula, substituting the information you gathered in previous steps:

% atos -arch <BinaryArchitecture> -o <PathToDSYMFile>/Contents/Resources/DWARF/<BinaryName>  -l <LoadAddress> <AddressesToSymbolicate>

As an example, look at the highlighted sections of this crash report:

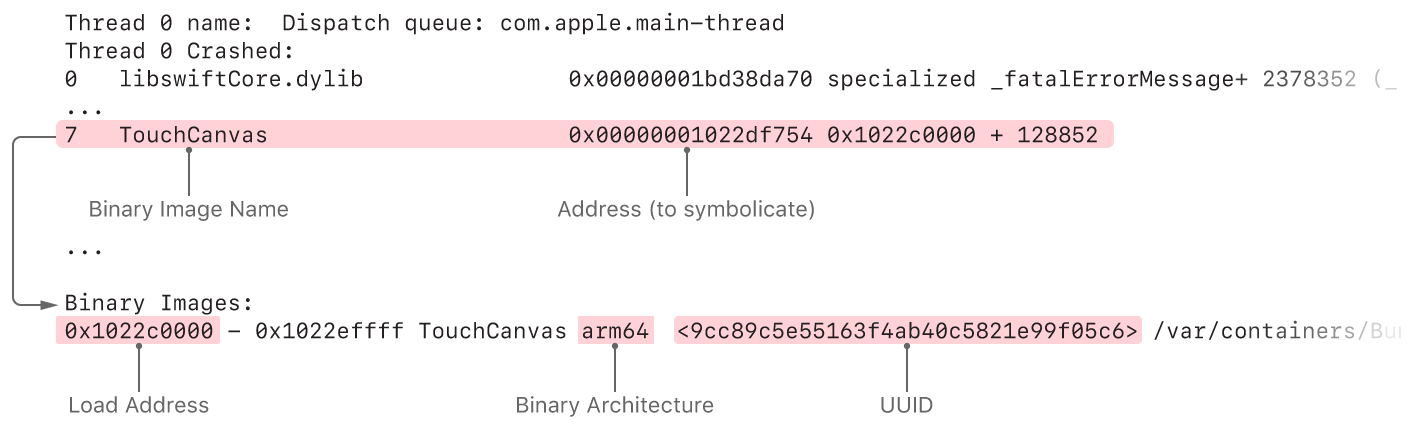

A crash report with information required to symbolicate a frame with atos highlighted.

Using the information in this example, the complete atos command and its output are:

% atos -arch arm64 -o TouchCanvas.app.dSYM/Contents/Resources/DWARF/TouchCanvas -l 0x1022c0000 0x00000001022df754
ViewController.touchesEstimatedPropertiesUpdated(_:) (in TouchCanvas) + 304

Once you have at least a partially symbolicated crash report by using atos, consult Analyzing Crash Reports for information to determine the source of the crash.
