Build Phases
In Xcode a build phase represents a task to be performed on a set of files. Each build phase specializes in a specific kind of file, such as header files, source files, resource files, and frameworks and libraries. Also, each build phase performs specific operations on the files associated with it. That way, changes in the way files of the same kind are processed can be made by customizing the operations that the build phase performs.
This chapter provides an overview of build phases, explains how Xcode determines the order in which build phases should be processed to build a product, describes in detail some of the build phases available, and explains how build rules allow you to customize the Compile Sources build phase and the Build ResourceManager Resources build phase in a target.
Overview of Build Phases
A build phase collects a group of files and performs a set of operations on them in the process of building a product. To illustrate this, think of the tasks you would take to prepare for and deliver a presentation; many of the required tasks contain a set of inputs and outputs:

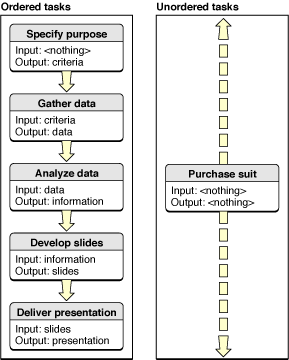

Specify the purpose of the presentation and identify the audience.
This task has no prerequisites but produces a set of criteria that serve as the guiding principles for the presentation.
Gather the appropriate data, such as articles, reports, and surveys.
Information gathering requires a set of criteria that specifies what to look for and where to look for it. The outcome are a set of documents containing the data gathered.
Purchase a business suit.
This task has no inputs or outputs that directly relate to the presentation.
Analyze the data by collating facts, extrapolating trends, and summarizing representative opinions.
This task uses the data gathered in task 2 and produces one document containing the information on which the presentation is based
Develop a set of slides, including compelling illustrations, from the information produced by your analysis.
This task requires the information produced in task 4 and produces a set of slides and illustrations, which could be presented using Keynote.
Deliver the presentation by showing the slides and illustrations in sequence and engaging the audience with a loud, clear voice and maintaining eye contact.
The order in which build phases are executed in a target depends on their inputs and outputs. Most of the tasks shown earlier contain a set of inputs and outputs that associate them with each other in an anterior/posterior relationship. Tasks that contain inputs that are the outputs of other tasks or outputs that are the inputs of other tasks are ordered tasks. These are tasks that are executed in the order determined by their inputs and outputs. Unordered tasks, on the other hand, are tasks with no inputs and outputs, tasks whose inputs are not the outputs of other tasks, or tasks whose outputs are not the inputs of other tasks. Figure 24-1 shows the presentation tasks shown earlier categorized as ordered and unordered.
Most of the tasks illustrated depend on another task’s outputs. The Specify Purpose task is the only task among the ordered tasks that doesn’t depend on the output of any other task; therefore, it’s performed first. The Purchase Suit task is the only unordered task; that is, it’s neither the anterior nor the posterior of other tasks. Therefore, it can be executed at any time during the preparation of the presentation.
Build Phases in Xcode
To build an application, you typically compile source files

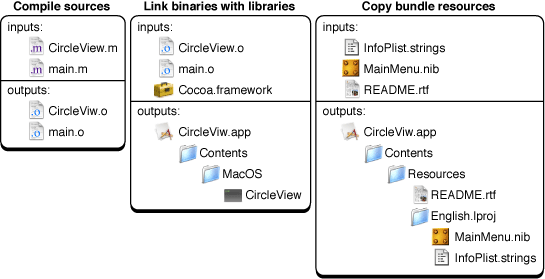

and link them to system frameworks and libraries. Figure 24-2 shows
some of the operations needed to build the CircleView application
(the CircleView project is located in /Developer/Examples/AppKit).
This simple project shows that there are many things to take into account when building a product. You have to copy resource files to the appropriate places, compile implementation files into object files, and link object files with the appropriate frameworks to produce a binary file. If you modify an implementation file, you would have to compile it, and link the generated object file with the other object files and the necessary frameworks.

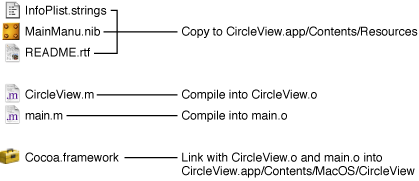

If you analyze the files and the operations illustrated in Figure 24-2, you notice that the project contains three types of files: files that are copied or installed; files that are processed or compiled to produce intermediate files, such as object files; and frameworks that are linked with the object files to produce a binary file. To build a product, appropriate operations need to be performed on the files depending on their type.
Build phases associate groups of files with operations to be performed on them in order to build a product; for example, installing header files within frameworks, compiling source files, linking object files with system libraries or frameworks, and so on. As you add files to a project, Xcode associates them with the appropriate build phase, based on the files’ type (specified by each file’s extension). If you want to compile implementation files with a different compiler, you make the change once, at the build phase level (see Compile Sources Build Phase and Build Rules for details). Therefore, build phases help make the process of building an application, plug-in, library, or framework, understandable and easy to customize, as illustrated in Figure 24-3.
A build phase operates on its inputs, which are the files associated with it (either by you or intrinsically by Xcode), and outputs, which are the files produced after the build phase is executed. Each build phase executes its task by invoking tools to perform the operations needed to accomplish the task.
Xcode offers several build phases, which are shown in Table 24-1. The name of the build phase reflects the task performed by that build phase.
Build phases |
Description |
|---|---|
Copy Headers |
Installs header files with Public or Private roles in
the appropriate locations in the product. In addition, header files
associated to this build phase are added to the target’s header
map ( |
Copy Bundle Resources, Build Java Resources |
Installs files by copying the associated files from the project directory to the appropriate locations in the product. |
Copy Files |
Installs files by copying the associated files from the project
directory to a location in the product or to a specific location in
the target file system, such as |
Compile Sources |
Compiles source files into object files using a predefined tool, a tool you specify, or a build-rule script. |
Run Script |
Executes a shell script. You can use any scripting language whose scripts you can execute from the command-line, such as AppleScript, Perl, Python, and so on. |
Link Binary With Libraries |
Links object files with frameworks and libraries to produce a binary file. |
Build ResourceManager Resources |
Compiles |
Compile AppleScripts |
Compiles |
Table 24-2 lists the build phases and their possible inputs and outputs.
Build phase |
Inputs |
Outputs |
|---|---|---|
Copy Headers |
|
Copies in appropriate locations in the product. |
Compile Sources |
|
|
Link Binary With Libraries |
|
Binary file, framework, or library in product destination directory. |
Copy Bundle Resources |
|
Copies in the product’s |
Build ResourceManager Resources |
|
|
Compile AppleScripts |
|
|
Each target has a set of build phases, separate from the build phases in other targets in your project. To view the build phases in a target, click the disclosure triangle next to the target in the Groups & Files list.
Adding and Deleting Build Phases
New targets—whether created through the New Target Assistant or as part of creating a new project—already include a set of default build phases. The default build phases for a target vary, depending on the type of product created by the target. For example, a target that builds an application typically includes a Copy Bundle Resources build phase to copy resources over to the application bundle; however, a target that builds a shell tool does not include this build phase. The default build phases work for most simple targets; however, you can accommodate more complex products and build steps by adding your own build phases.To add a build phase:
Select the target to add the build phase to; otherwise, Xcode adds the build phase to the active target.
Choose a build phase from the Project > New Build Phase menu or from the Add > New Build Phase menu in the contextual menu that Xcode displays when you Control-click the target. Table 24-1 shows the available build phases.
Xcode adds the new build phase after the currently selected build phase, or, if no build phase is selected, adds it as the last build phase in the target. Many types of build phases can only appear once in a target; for example, there can be only one Compile Sources build phase. If they already exist in the target, the menu items to add these build phases are dimmed. However, a target can contain multiple instances of the Copy Files and Run Script build phases.
To delete a build phase, select it in the Groups & Files list and press Delete or choose Edit > Delete. Deleting a build phase does delete the files in the build phase from the project or from the disk.
Adding Files to a Build Phase
When you add a file to a project, Xcode lets you choose whether to also add the file to any targets in the project. When you add files to a target in this way, Xcode automatically assigns the files to build phases, based on each file’s type. To view the inputs to a particular build phase, you can do either of the following:
Select the build phase in the Groups & Files list and, if necessary, open a detail view. The files assigned to the build phase are displayed in the detail view.
Click the disclosure triangle next to the build phase in the Groups & Files list.
Intermediate files—files generated by Xcode in other build phases—are not listed. Xcode handles these intermediate files automatically.
If Xcode’s default file placement is not sufficient for your needs, you can easily move files among build phases by dragging the file or files from their current build phase to the new build phase. You can also add files that are already in your project to a build phase by dragging the files from the project source group to the appropriate build phase in the Groups & Files list. To delete a file from a build phase, select the file and press Delete.
Processing Order
The order in which the build system executes build phases is important because some build phases produce files that are part of the inputs of other build phases. Therefore, the former must be executed before the latter. In native targets, dependencies between build phases determine the order of execution. In Jam-based targets, you must ensure that the build phases within a target are ordered appropriately.
In Native Targets
In some cases, a build phase inherently includes the outputs
of other build phases as its inputs. For example, the outputs of
the Compile Sources build phase (.o files)
are part of the inputs of the Link Binary With Libraries build phase.
This makes the Compile Sources build phase an antecedent of the Link
Binary With Libraries build phase. Therefore, the order in which
build phases are executed in a target depends on their inputs and
outputs.
Most build phases have their inputs and outputs defined implicitly. However, Run Script build phases may have neither. In that case, the build system tries to run the associated script in the order specified within the target, but the actual point in the build process at which the script is run is undetermined. If you assign either input or output files to a Run Script build phase, the script’s point of execution in the build process is determined by other targets having the build phase’s outputs as their inputs, or the inputs of the build phase being the outputs of other build phases.
Figure 24-3 illustrates this. Regardless of the order of the Compile Sources and the Link Binary With Libraries build phases in the target, the Compile Sources build phase is executed before the Link Binary With Libraries build phase because part the latter’s inputs is constituted by the former’s outputs.
In the Compile Sources build phase, the build system determines the order in which files are processed through the inputs and outputs of the target’s build rules, in a similar way in which the order of build phases is determined.
In Jam-Based Targets
In Jam-based targets, the order of build phases within a target and the input files within the build phase determines the order in which the build system executes the build phases and processes each file within each build phase.
You must make sure that build phases that produce files required by other build phases are listed first within the target. For example, the Compile Sources build phase must always be listed before the Link Binary With Libraries build phase.
Within the Compile Sources build phase, you must ensure that
source files that generate derived files are placed above dependent
files. For example, if a target has Yacc (.y)
and Lex files (.l) files
and processing the Lex files requires the C (.c)
files generated from the Yacc files, the Yacc files must be listed
before the Lex files within the target.
Reordering Build Phases
Typically, there is no need to change the order of build phases in a target; the default arrangement works for the majority of cases. If, however, you find that you need to change the position of a build phase—for example, when adding custom build phases to a Jam-based target—you can reorder a build phase by dragging the build phase’s icon to its new location in the target.
Compile Sources Build Phase
The Compile Sources build phase is one of the most customizable build phases (the other one being the Run Script build phase). The reason is that this build phase must handle a wide variety of input-file types. Xcode is preconfigured to process several types of source files, but you may have to compile source files that Xcode doesn’t know about.
The feature that makes the Compile Sources build phase so flexible is its support of build rules. They specify the tool or script the build system invokes to process files in Compile Sources and Build ResourceManager Resources build phases when building a product. For details on build rules, see Build Rules.
Copy Files Build Phase
A Copy Files build phase allows you to copy and install files and resources of any type to specific locations as part of the build process. It complements the build phases that copy and install specific types of files, such as the Copy Headers build phase, which deals only with header files. You can have as many Copy Files build phases as you need in a target.
For example, using a Copy Files build phase, you can copy
fonts to/Library/Fonts.
Or, if you’re developing a plug-in, a Copy Files build phase can
copy the generated plug-in to the appropriate location. You can
have as many Copy Files build phases in a target as you need.
To create a Copy Files build phase:
In the project window, click the disclosure triangle next to the target you want to add the build phase to and select the build phase after which to add the new build phase.
Choose Project > New Build Phase > New Copy Files Build Phase. Xcode adds the new Copy Files build phase after the build phase selected in the Groups & Files list.
Drag the files you want to copy from the Groups & Files list to the Copy Files build phase.

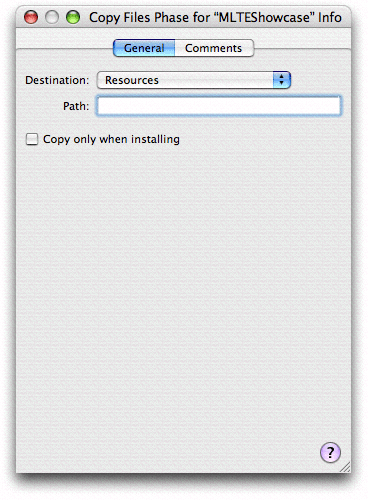

To configure the new Copy Files build phase, select it and open an Info or inspector window. You should see a window similar to the one shown here.
Together, the Destination pop-up menu and the Path field specify the location to which Xcode copies the files in the Copy Files build phase. The Destination pop-up menu in the inspector window lets you choose from a number of standard locations. Table 24-3 shows the destination-location names you can choose in a Copy Files build phase for a framework called MyFramework and the resulting destination path. All the options, except Absolute Path and Products Directory, specify paths inside the generated bundle.
Destination name |
Destination path |
|---|---|
Absolute Path |
Anywhere. |
Wrapper |
|
Executables |
|
Resources |
|
Java Resources |
|
Frameworks |
|
Shared Frameworks |
|
Shared Support |
|
Plug-ins |
|
Products Directory |
The directory in which Xcode places the project’s built products. See Build Locations. |
The Path field specifies the path, relative to the location specified in the Destination menu, to the target directory. If you choose Absolute Path from the Destination pop-up menu, the Path field should contain the complete path to the destination directory for the files.
The “Copy only when installing” option lets you specify
whether the build phase copies the files only in install
builds of the product. That is, when using the install option
of xcodebuild or when
the Deployment Location (DEPLOYMENT_LOCATION) build setting is turned
on. For more on xcodebuild,
see Building From the Command Line.
Run Script Build Phase
A Run Script build phase lets you execute any commands you
need to perform a task. You can archive files using tar,
send mail, write messages to a log file, execute AppleScript scripts,
and so on. You can use any of the shell languages available in your
system. You can have any number of Run Script build phases in a
target.
Before executing your script, Xcode assigns the values of most build settings to environment variables. In particular, it sets the environment variables listed in Table 24-4, as well as any build settings that are defined at the target and build style layers for the active target and build style. However, keep in mind that Xcode does not recognize changes made to those environment variables during the script’s execution and that shell scripts are independent of each other. If you change the value of environment variables in one script, the change is not visible in another script. For details on the build settings that are reflected in the script’s environment variables, see Using Build Settings With Run Script Build Phases.
To perform operations on intermediate files, you can use several environment variables that Xcode sets before executing your script. They are listed in Table 24-4.
Environment variable |
Description |
|---|---|
|
The action being performed on the current target, such as “build” or “clean.” |
|
The variations—debug, profile or normal—that Xcode is creating for the product being built . |
|
The name of the project containing the target that is being built. |
|
The name of the product being built, without any extension or suffix. |
|
The name of the target being built. |
|
The location of the target being built. |
|
The directory that holds the products created by building the targets in a project. |
|
The directory that holds intermediate files for a specific target. |
|
The directory that holds intermediate source files generated by the Compile Sources build phase. |
|
The location for the installed product. |
Keep in mind that the script executes using the permissions of the logged-in user. Xcode runs the script with the initial working directory set to the project directory.

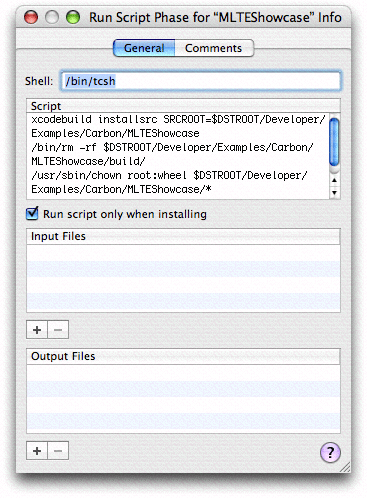

To create a Run Script build phase:
In the project window, click the disclosure triangle next to the target you want to add the build phase to and select an existing build phase.
Choose Project > New Build Phase > New Shell Script Build Phase.
To configure the new Run Script build phase, select the build phase and open an Info or inspector window. You should see a window similar to the one shown here.
The Shell field specifies the path to the appropriate shell. Specify the script itself in the Script text field. You can type the contents of the script directly in the text field or invoke it from a file, as in the example shown above.
The “Run script only during deployment builds” option
lets you specify that the script be run only during install builds;
that is, when using the install option
of xcodebuild or when the
build settings Deployment Location (DEPLOYMENT_LOCATION) and Deployment Postprocessing
(DEPLOYMENT_POSTPROCESSING) are on.
The Input Files and Output Files tables specify the names of input files and output files the script uses and produces. The Input Files table specifies the files that the script operates on; the Output Files table specifies the files that the script produces. To add an entry to either of these tables, click the “+” button below the table and type the name of the input or output file in the resulting text field. File paths are interpreted relative to the project directory.
Xcode uses the input and output files to determine whether to run the script, and to determine the order in which the script is executed. Specifying input and output files ensures that Xcode runs the script only when the modification date of any of the input files is later than the modification date of any of the output files (reducing the time it takes to build your product), and that the files the script produces are included in the dependency analysis the build system performs before building your product. If you provide no outputs, Xcode runs the script every time you build the target.
Build Rules
Build rules specify how particular types of files are processed in Compile Sources build phases and specify the tool used to process files in Build ResourcesManager Resources build phases. For example, a build rule may indicate that all C source files be processed with the GCC 3.3 compiler.Each build rule consists of a condition and an action. The condition determines whether a source file is processed with the associated action. Usually, the condition specifies a file type.
Xcode provides default build rules that process C-based files, assembly files, Rez files, and so on. You can add rules to process other types of files to each target. You can see the build rules in effect for a target in the Rules pane of the target inspector, shown below.
There are two types of rules:
System rules. These are predefined and unmodifiable, although you can override them. They include rules for processing C-based, Assembler, and Rez source files. See System Rules for details. System rules are the same for all targets in a project.
Target-specific rules. These are custom rules that you have defined for a particular target.
Target-specific rules can specify files that the system rules
do not directly address or override the existing system rules. For
example, there’s a system rule for the processing of C-based source
files, which means that .c and .m files
are processed by the same rule. You can, however, add a target-specific
rule indicating that .m files
be processed by a different compiler. In addition, instead of specifying
a particular type of file, you can set the rule’s condition to
a pattern that matches a set of files. See Creating a Custom Build Rule.

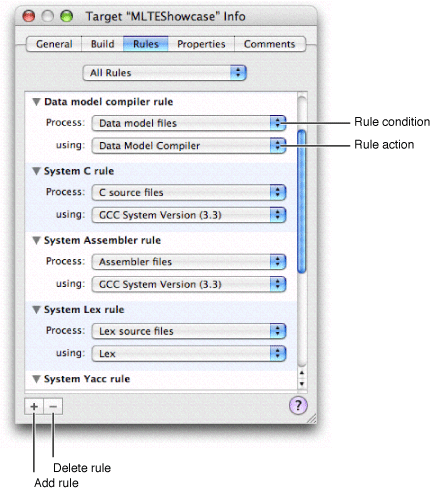

You can view all rules for a target, including available system rules, by choosing All Rules from the pop-up menu at the top of the Rules pane. To see only those build rules defined for the target, choose Rules Specific to Target.
A build rule’s action typically specifies the tool or compiler
to use when processing files that meet the given condition. But
you can also specify a build-rule script. The default interpreter
is /bin/sh. However,
you can specify any script interpreter by entering #!<interpreter_path> as
the first line of the script. When you use a build-rule script,
you must specify the files the script produces as the build rule’s
output files. See Creating a Custom Build Rule Script.
When processing a source file, Xcode evaluates the build rules from top to bottom and chooses the first one whose condition matches the source file being processed. Because custom build rules appear above the built-in system rules, the custom build rules can override the system build rules.
System Rules
System rules are predefined rules in all targets and are used to process several well-known file types. Table 24-5 lists the system rules that Xcode provides.
Rule |
Inputs |
Outputs |
|---|---|---|
Data Model Compiler |
|
|
C |
|
|
Assembler |
|
|
Yacc |
|
|
Lex |
|
|
Rez |
|
|
MiG |
|
|
Creating a Custom Build Rule
In addition to the system build rules, Xcode lets you define custom build rules on a per-target basis. Custom build rules allow you to change the way files of a particular type are processed or add support for types of files not directly addressed by the system rules.
To add a new build rule to a target, click the plus (+) button at the bottom of the Rules pane in the target inspector. Likewise, you can delete any rule—other than the system rules—by selecting the rule and clicking the minus (-) button.
To define a build rule’s condition, choose a file type from
the Process pop-up menu. You can also define rules that match arbitrary
file names by choosing the last item in the pop-up menu (“Source
files with names matching:”) and specifying a filename pattern
in the text field that appears. This field accepts the same kinds
of file patterns that a Terminal shell accepts. For example, to
match all files whose names start with a capital letter and end with
a .def suffix, you specify [A-Z]*.def as
the pattern.
You define the build rule's action by choosing one of the available compilers from the “using” pop-up menu. Xcode provides a number of built-in compilers for you to choose from. Alternatively, you can define your own custom script for processing files that meet the build rule’s condition, as described in Creating a Custom Build Rule Script.
When processing a source file in the target, Xcode evaluates the build rules from top to bottom and chooses the first one whose condition matches the source file being processed. For this reason, you should put the most specific build rules above the more general ones. For example, a rule that matches only C++ files should appear above a rule that matches all C-like files—that is, C, C++, Objective-C, and Objective-C++ files. You can reorder custom rules by clicking in their background and dragging them. System rules cannot be reordered.
Creating a Custom Build Rule Script
Instead of choosing one of Xcode’s built-in compilers to process the files specified by a build rule’s condition, you can create a custom script to process those files. To do so, choose the “Custom script:” menu item. You can enter your script in the text field that appears, or you can store your script as a separate file in your project and invoke it from the text field using its project-relative path. In this case, you are actually defining a one-line script that calls the script in your project.
In addition to defining the script, you also need to tell Xcode the paths of any output files that the script produces. Enter the path to each separate output file that is produced by the script in the “with output files” table below the script text field. For each file, create a new row by clicking the plus (+) button. In this row, specify either the full (absolute) path or the project-relative path to the file. You can use any of the environment variables listed in Table 24-6.
For example, suppose that you need to define a build rule
to process files with the extension .abcdef.
Also suppose that the build-rule script produces a .c file
for each .abcdef file
and that the generated .c files
are placed in the default directory for intermediate files. In this
case, the output-files specification could look like this:
$(DERIVED_FILES_DIR)/$(INPUT_FILE_BASE).c |
The generated files are automatically fed back to the rule-processing
engine. For example, continuing the .abcdef example
rule, Xcode processes the .c files
the script produces using the rule that processes .c files.
Execution Environment for Build-Rule Scripts
Before executing a build-rule script, Xcode sets environment variables to reflect the values of some build settings used to build the product. See Using Build Settings With Run Script Build Phases for details. In addition, Xcode sets a few environment variables to values the script may need to access. Table 24-6 describes these environment variables.
Variable |
Description |
Example |
|---|---|---|
|
Path to the source file being processed. |
|
|
Directory containing the source file. |
|
|
Filename of the source file being processed, including its extension. |
|
|
Base filename of the source file being processed. |
|
|
Suffix of the source file being processed, including the leading period. |
|
|
Path of the directory for derived (intermediate) files. |
|
|
Path to the directory into which the target’s products are being built. |
|
Xcode runs build-rule scripts with the current working directory set to the project directory. This lets you access specific source files by using their project-relative paths.
Copyright © 2004, 2006 Apple Computer, Inc. All Rights Reserved. Terms of Use | Privacy Policy | Updated: 2006-11-07
