GDB and the Fix Command

The process of fixing source files while debugging is tricky. GDB must manipulate your executable while it is running, inserting new code while not disturbing the state of your program execution. The actual process involves compiling your code with special flags and rewriting portions of your binary to call the new code when appropriate. At all times, the Fix command modifies the in-memory image of your executable. It does not permanently modify the files of your original application binary.

When it receives a patched binary, GDB compares that binary against the code in the application’s original binary. GDB checks for several modifications that cannot be patched into a running application. If it detects any of these modifications, it reports back to Xcode that it could not incorporate the patch. If this occurs, you can stop debugging and rebuild your application or continue debugging without the patch.

If GDB does not report any problems with your patch, it integrates the patched code into your application’s memory image. It does this by making the following modifications:

• GDB modifies functions in your original binary to jump to any patched versions.

• GDB modifies any static or global variables in the patched file to point back to the versions in the original binary.

Debugging With Patched Code

After patching your application, you should be able to continue debugging your code as before. The next time you encounter a patched function, you should see the changes you made appear in the debugger window. However, there are some caveats to be aware of when working with patched code.

If you patch a function that is on the stack, you may not see the results of that patch immediately. GDB is capable of patching the function that is currently at the top of the stack. However, if you patch a function that is further down the calling chain, the patch does not take effect until the next time you call it. Thus, the function must return and be called again before it receives the patch. Until that time, the function on the stack continues to execute the original code.

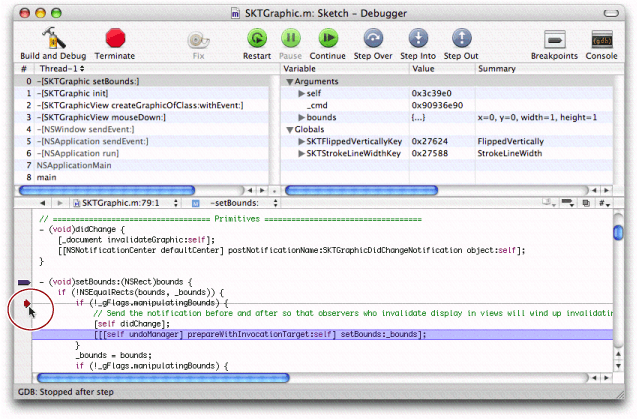

While your program is paused in the debugger, you can move the program counter around and resume execution from any point in the current function. This feature lets you rerun a patched function from the beginning, or from any point, to account for the changes you made.

If you quit your debugging session for any reason, you must rebuild your program to acquire any changes made by patching. The effects of the Fix command are only applicable to your executable while it is active in the debugger. The reason is that the command does not modify your program’s compiled object files. Instead, it creates temporary object files and loads them into the memory space of your process dynamically. When you quit the debugger, GDB discards the temporary object files containing the patches. Recompiling your project recreates your application’s original object files from the patched code.

Restrictions Reported by GDB

There are many types of code changes that cannot be patched. The GDB debugger reports an error if it cannot integrate any of your changes due to a known restriction. If GDB reports one of these errors, you must rebuild your program and restart your debugging session or continue debugging the program without the changes.

GDB recognizes the following changes to your code and reports an error if you try to include them as part of a fix:

• Changes to the number or type of arguments in a function or method that is currently on the stack

• Changes to the return type or name of a function or method that is currently on the stack

• Changes to the number or type of local variables in a function or method that is currently on the stack

• Changes to the type of global or file-static variables

• Symbol type redefinitions, that is, changing a function to a variable or a variable to a function.

Additional Restrictions

In addition to the restrictions reported by GDB, there are additional restrictions that GDB currently does not check. If you attempt to include any of these changes in a patch, your application may crash or exhibit other undefined behavior when it encounters the code. The solution is to avoid using the Fix command for the change. Instead, rebuild your program and restart your debugging session.

The following is a list of changes that cannot be included as part of a fix:

• Changes to a nib file

• Changes to the definition of a structure or union

• The addition of a new Objective-C class

• The addition or removal of class instance variables

• The addition or removal of class methods

• The addition or removal of methods to an Objective-C category. These methods are not registered with the Objective-C runtime and thus cannot be called. (You can fix existing methods in a category.)

• Any reference to an unresolved external variable or function. Link errors of this nature cannot be resolved by the dynamic linker.

• The addition of a static variable across multiple patches in one session. GDB maintains a copy of the static in each patch; however, because there is no original to refer to, each variable remains separate from the others, which can lead to unpredictable results.

• The addition of a function to one file when it is called from a different patched file. New functions are private to the patch file in which they appear.

• The addition of a new try block or the addition of a catch handler to an existing block

• The addition of a C++ template class specialization

• Changes to functions that require two-level namespaces during linking to prevent known symbol conflicts across different libraries. GDB supports patching two-level namespace binaries but currently does so using flat namespace conventions.

Supported Fixes

Although there are many restrictions to what you can fix, there are also some features that are explicitly supported by the Fix command, including the following:

• Storing pointers to a patched function still works. GDB inserts code to jump from the old function to the newly-patched function. Thus, despite your code having a pointer to the original function, using that pointer executes the patched version.

• You can add new file-local static variables to a file. One caveat to adding such variables is that GDB does not execute any initialization code associated with them. Thus, if you declare a new class instance as a global static, GDB does not execute any constructors or static initializers for the instance. Also, there are limitations on how those variables behave after multiple patches. See Additional Restrictions for more information.

• You can add new C++ classes as part of a patch.
