Navigating a Data Hierarchy with Table Views

A common use of table views—and one to which they’re ideally suited—is to navigate hierarchies of data. A table view at a top level of the hierarchy lists categories of data at the most general level. Users select a row to “drill down” to the next level in the hierarchy. At the bottom of the hierarchy is a view (often a table view) that presents details about a specific item (for example, an address book record) and may allow users to edit the item. This section explains how you can map the levels of the data model hierarchy to a succession of table views and describes how you can use the facilities of the UIKit framework to help you implement such navigation-based apps.

Hierarchical Data Models and Table Views

For a navigation-based app, you typically design your app data as a graph of model objects that is sometimes referred to as the app’s data model. You can then implement the model layer of your app using various mechanisms or technologies, including Core Data, property lists, or archives of custom objects. Regardless of the approach, the traversal of your app’s data model follows patterns that are common to all navigation-based apps. The data model has hierarchical depth, and objects at various levels of this hierarchy should be the source for populating the rows of a table view.

The Data Model as a Hierarchy of Model Objects

A well-designed app factors its classes and objects in a way that conforms to the Model-View-Controller (MVC) design pattern. The app’s data model consists of the model objects in this pattern. You can describe model objects (using the terminology provided by the object modeling pattern) in terms of their properties. These properties are of two general kinds: attributes and relationships.

Attributes represent elements of model-object data. Attributes can range from an instance of a primitive class (for example, an NSString, NSDate, or UIColor object) to a C structure or a simple scalar value. Attributes are generally what you use to populate a table view that represents a “leaf node” of the data hierarchy and that presents a detail view of that item.

A model object may also have relationships with other model objects. It is through these relationships that a data model acquires hierarchical depth by composing an object graph. Relationships are of two general kinds in terms of cardinality: to-one and to-many. To-one relationships define an object’s relationship with another object (for example, a parent relationship). A to-many relationship, on the other hand, defines an object’s relationship with multiple objects of the same kind. The to-many relationship is characterized by containment and can be programmatically represented by collections such as NSArray objects (or, simply, arrays). An array might contain other arrays, or it could contain multiple dictionaries, which are collections that identify their contained values through keys. Dictionaries, in turn, can contain one or more other collections, including arrays, sets, and even other dictionaries. As collections nest in other collections, your data model can acquire hierarchical depth.

Table Views and the Data Model

The rows of a plain table view are typically backed by collection objects of the app’s data model; these objects are usually arrays. Arrays contain strings or other elements that a table view can use when displaying row content. When you create a table view (described in “Creating and Configuring a Table View”), it immediately queries its data source for its dimensions—that is, it requests the number of sections and the number of rows per section—and then asks for the content of each row. The data source fetches this content from an array in the appropriate level of the data-model hierarchy.

In many of the methods defined for a table view’s data source and delegate, the table view passes in an index path to identify the section and row that is the focus of the current operation—for example, fetching content for a row or indicating the row the user tapped. An index path is an instance of the Foundation framework’s NSIndexPath class that you can use to identify an item in a tree of nested arrays. The UIKit framework extends NSIndexPath to add a section and a row property to the class. The data source should use these properties to map a section and row of the table view to a value at the corresponding index of the array being used as the table view’s source of data.

In the sequence of table views in Figure 3-1, the top level of the data hierarchy is an array of four arrays, with each inner array containing objects representing the trails for a particular region. When the user selects one of these regions, the next table view lists names identifying the trails within the selected array. When the user selects a particular trail, the next table view describes that trail using a grouped table view.

Figure 3-1  Mapping levels of the data model to table views

View Controllers and Navigation-Based Apps

The UIKit framework provides a number of view controller classes for managing common user interface patterns in iOS. View controllers are controller objects that inherit from the UIViewController class. They are an essential tool for view management, especially when an app uses those views to present successive levels of its data hierarchy. This section describes how two subclasses of UIViewController, navigation controllers and table view controllers, present and manage a succession of table views.

Navigation Controllers

The UINavigationController class inherits from UIViewController, a base class that defines the common programmatic interface and behavior for controller objects that manage views in iOS. Through inheritance from this base class, a view controller acquires an interface for general view management. After it implements parts of this interface, a view controller can autorotate its view, respond to low-memory notifications, overlay “modal” views, respond to taps on the Edit button, and otherwise manage the view.

A navigation controller maintains a stack of view controllers, one for each of the table views displayed (see Figure 3-2). It begins with what’s known as the root view controller. When the user taps a row of the table view (often on a detail disclosure button), the root view controller pushes the next view controller onto the stack. The new view controller’s table view visually slides into place from the right, and the navigation bar items are updated appropriately. When users tap the back button in the navigation bar, the current view controller is popped off the stack. As a consequence, the navigation controller displays the table view managed by the view controller that is now at the top of the stack.

Figure 3-2  Navigation controller and view controllers in a navigation-based app
Navigation controller and table-view controllers in an application

Navigation Bars

Navigation bars are a user-interface device that enables users to navigate a hierarchy of data. Users start with general, top-level items and “drill down” the hierarchy to detailed views showing specific properties of leaf-node items. The view below the navigation bar presents the current level of data. A navigation bar includes a title for the current view and, if that view is lower in the hierarchy than the top level, a back button on the left side of the bar; the back button is a navigation control that the user taps to return to the previous level. (The back button by default displays the title for the previous view.) A navigation bar may also have an Edit button—used to enter editing mode for the current view—or custom buttons for functions that manage content (see Figure 3-3).

Figure 3-3  Navigation bars and common control items
Navigation bars and common control itemsNavigation bars and common control items

A UINavigationController manages the navigation bar, including the items that are displayed in the bar for the view below it. A UIViewController object manages a view displayed below the navigation bar. For this view controller, you create a subclass of UIViewController or a subclass of a view controller class that the UIKit framework provides for managing a particular type of view. For table views, this view controller class is UITableViewController. For a navigation controller that displays a sequence of table views reflecting levels within a data hierarchy, you need to create a separate custom table view controller for each table view.

The UIViewController class includes methods that let view controllers access and set the navigation items displayed in the navigation bar for the currently displayed table view. This class also declares a title property through which you can set the title of the navigation bar for the current table view.

Table View Controllers

Although you could manage a table view using a direct subclass of UIViewController, you save yourself a lot of work if instead you subclass UITableViewController. The UITableViewController class takes care of many of the details you would have to implement if you created a direct subclass of UIViewController to manage a table view.

The recommended way to create a table view controller is to specify it in a storyboard. The associated table view is loaded from the storyboard, along with the table view’s attributes, size, and autoresizing characteristics. The table view controller sets itself as the data source and the delegate of the table view.

When the table view is about to appear for the first time, the table view controller sends reloadData to the table view, which prompts it to request data from its data source. The data source tells the table view how many sections and rows per section it wants, and then gives the table view the data to display in each row. This process is described in “Creating and Configuring a Table View.”

The UITableViewController class also performs other common tasks. It clears selections when the table view is about to be displayed and flashes the scroll indicators when the table finishes displaying. In addition, it responds properly when users tap the Edit button by putting the table view into editing mode (or taking it out of editing mode if users tap Done). The class exposes one property, tableView, which gives you access to the managed table view.

The UITableViewController class implements the foregoing behavior by overriding loadView, viewWillAppear:, and other methods inherited from UIViewController. In your subclass of UITableViewController, you may also override these methods to acquire specialized behavior. If you do override these methods, be sure to invoke the superclass implementation of the method, usually as the first method call, to get the default behavior.

Managing Table Views in a Navigation-Based App

A UITableViewController object—or any other object that assumes the roles of data source and delegate for a table view—must respond to messages sent by the table view in order to populate its rows, configure it, respond to selections, and manage editing sessions. In the rest of this document, you learn how to do these things. However, there are certain other things you need to do to ensure the proper display of a sequence of table views in a navigation-based app.

At this point, let’s assume that a table view managed by a table view controller presents a list to the user. How does the app display the next table view in the sequence?

When a user taps a row of the table view, the table view calls the tableView:didSelectRowAtIndexPath: or tableView:accessoryButtonTappedForRowWithIndexPath: method implemented by the delegate. (That latter method is invoked if the user taps a row’s detail disclosure button.) The delegate creates the table view controller managing the next table view in the sequence, sets the data it needs to populate its table view, and pushes this new view controller onto the navigation controller’s stack of view controllers. A storyboard provides the specification that allows UIKit to perform most of this work for you.

Storyboards represent the screens in an app and the transitions between them. The storyboard in a basic app may contain just a few screens, but a more complex app might have multiple storyboards, each of which represents a different subset of its screens. The storyboard example in Figure 3-4 presents a graphical representation of each scene, its contents, and its connections.

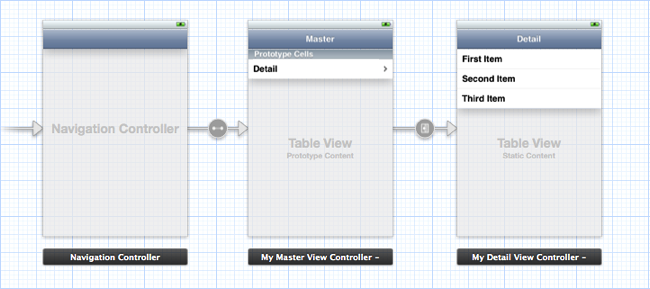

Figure 3-4  A storyboard with two table view controllers

A scene represents an onscreen content area that is managed by a view controller. (In the context of a storyboard, scene and view controller are synonymous terms.) The leftmost scene in the default storyboard represents a navigation controller. A navigation controller is a container view controller because, in addition to its views, it also manages a set of other view controllers. For example, the navigation controller in Figure 3-4 manages the master and detail view controllers, in addition to the navigation bar and the back button that you see when you run the app.

A relationship is a type of connection between scenes. In Figure 3-4, there is a relationship between the navigation controller and the master scene. In this case, the relationship represents the containment of the master and detail scenes by the navigation controller. When the app runs, the navigation controller automatically loads the master scene and displays the navigation bar at the top of the screen.

A segue represents a transition from one scene (called the source) to the next scene (called the destination). For example, in Figure 3-4, the master scene is the source and the detail scene is the destination. When you select the Detail item in the master list, you trigger a segue from the source to the destination. In this case, the segue is a push segue, which means that the destination scene slides over the source scene from right to left. As the detail screen is revealed, a back button appears at the left end of the navigation bar, titled with the previous screen’s title (in this case, “Master”). The back button is provided automatically by the navigation controller that manages the master-detail hierarchy.

Storyboards make it easy to pass data from one scene to another via the prepareForSegue:sender: method of the UIViewController class. This method is called when the first scene (the source) is about to transition to the next scene (the destination). The source view controller can implement prepareForSegue:sender: to perform setup tasks, such as passing information to the destination view controller about what it should display in its table view. Listing 3-1 shows one implementation of this method.

Listing 3-1  Passing data to a destination view controller

- (void)prepareForSegue:(UIStoryboardSegue *)segue sender:(id)sender
{
  if ([[segue identifier] isEqualToString:@"ShowDetails"]) {
    MyDetailViewController *detailViewController = [segue destinationViewController];
    NSIndexPath *indexPath = [self.tableView indexPathForSelectedRow];
    detailViewController.data = [self.dataController objectInListAtIndex:indexPath.row];
  }
}

A segue represents a one-way transition from a source scene to a destination scene. One of the consequences of this design is that you can use a segue to pass data to a destination, but you can’t use a segue to send data from a destination to its source. To solve this problem, you create a delegate protocol that declares methods that the destination view controller calls when it needs to pass back some data.

Listing 3-2 shows one implementation of a protocol for passing data back to a source view controller.

Listing 3-2  Passing data to a source view controller

@protocol MyAddViewControllerDelegate <NSObject>
- (void)addViewControllerDidCancel:(MyAddViewController *)controller;
- (void)addViewControllerDidFinish:(MyAddViewController *)controller data:(NSString *)item;
@end

- (void)addViewControllerDidCancel:(MyAddViewController *)controller {
  [self dismissViewControllerAnimated:YES completion:NULL];
}

- (void)addViewControllerDidFinish:(MyAddViewController *)controller data:(NSString *)item {
  if ([item length]) {
    [self.dataController addData:item];
    [[self tableView] reloadData];
  }
  [self dismissViewControllerAnimated:YES completion:NULL];
}

Design Pattern for Navigation-Based Apps

A navigation-based app with table views should follow these design best practices:
