Direct to Web Component Organization

Direct to Web Component Organization

Figure 3-1 shows the components in an edit page for the Movie entity in the Neutral look. The top-level component is a Direct to Web template called NEUInspectPage.wo. It contains the project's PageWrapper.wo component, which defines the overall layout of the page. The PageWrapper.wo component contains the MenuHeader.wo component, which defines the Direct to Web navigation menu. See "The Structure of a Direct to Web Project" for more information about PageWrapper.wo and MenuHeader.wo.

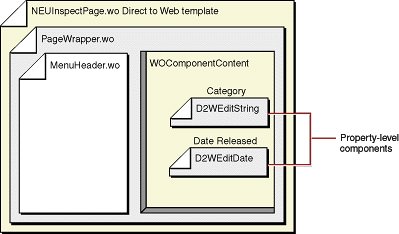

Figure 3-1 Edit page component organization

The PageWrapper.wo component content comes from the NEUInspectPage Direct to Web template. This content includes HTML input elements for the visible attributes of an entity. Each attribute appears in a separate property-level component that depends on the attribute's type. The category attribute displays using a D2WEditString component. The dateReleased attribute displays using a D2WEditDate component.

Pages with nested Direct to Web templates contain Direct to Web reusable components. Figure 3-2 shows a master detail page in the Neutral look. The NEUMasterDetail.wo Direct to Web template contains PageWrapper.wo which in turn, contains MenuHeader.wo. NEUMasterDetail.wo also contains two reusable components that act as interfaces to the templates they display: a D2WSelect component and a D2WEdit component. Each of these components is actually a WOSwitchComponent that displays a template-the D2WSelect component displays a NEUListPage Direct to Web template and the D2WEdit component displays a NEUInspectPage Direct to Web template.

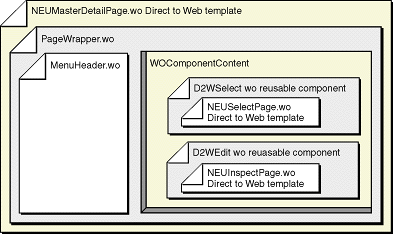

Figure 3-2 Master-detail page component organization

[image: ../Art/MasterDetailPageComponents.gif]
