Dictionaries: Collections of Keys and Values

Dictionaries manage pairs of keys and values. A key-value pair within a dictionary is called an entry. Each entry consists of one object that represents the key, and a second object which is that key’s value. Within a dictionary, the keys are unique—that is, no two keys in a single dictionary are equal (as determined by isEqual:). A key can be any object that adopts the NSCopying protocol and implements the hash and isEqual: methods. Figure 1 shows a dictionary which contains information about a hypothetical person. As shown, a value contained in the dictionary can be any object, even another collection.

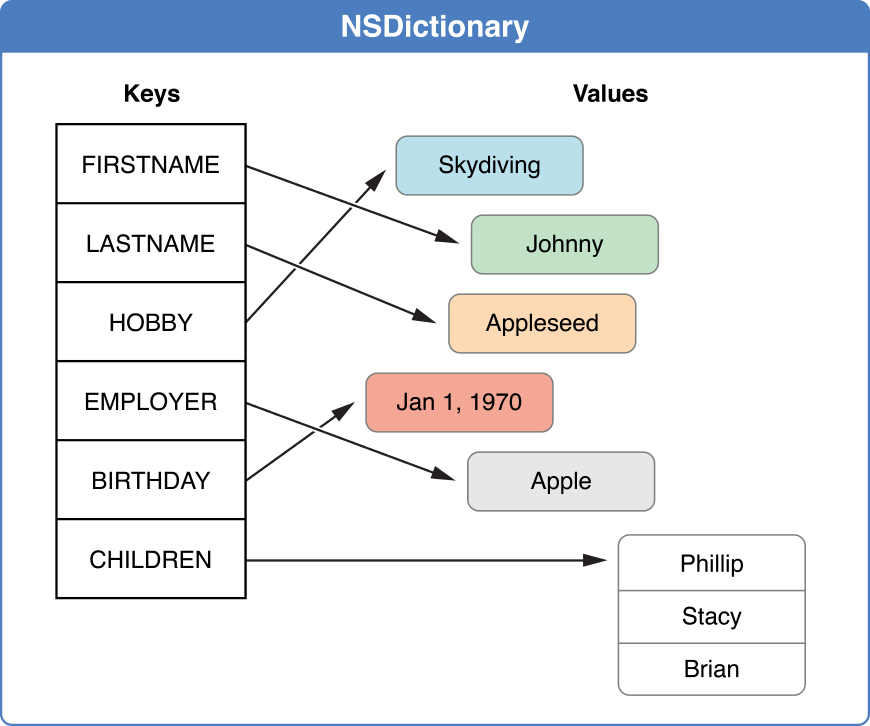

Figure 1  Example dictionary

Dictionary Fundamentals

An NSDictionary object manages an immutable dictionary—that is, after you create the dictionary, you cannot add, remove or replace keys and values. You can, however, modify individual values themselves (if they support modification), but the keys must not be modified. The mutability of the collection does not affect the mutability of the objects inside the collection. You should use an immutable dictionary if the dictionary rarely changes, or changes wholesale.

An NSMutableDictionary object manages a mutable dictionary, which allows the addition and deletion of entries at any time, automatically allocating memory as needed. You should use a mutable dictionary if the dictionary changes incrementally, or is very large—as large collections take more time to initialize.

You can easily create an instance of one type of dictionary from the other using the initializer initWithDictionary: or the convenience constructor dictionaryWithDictionary:.

In general, you instantiate a dictionary by sending one of the dictionary...messages to either the NSDictionary or NSMutableDictionary class. The dictionary... messages return a dictionary containing the keys and values you pass in as arguments. Objects added as values to a dictionary are not copied (unless you pass YES as the argument to initWithDictionary:copyItems:). Rather, a strong reference to the object is added to the dictionary. For information on how a dictionary handles key objects, see “Using Custom Keys.” For more information on copying and memory management, see “Copying Collections.”

Internally, a dictionary uses a hash table to organize its storage and to provide rapid access to a value given the corresponding key. However, the methods defined for dictionaries insulate you from the complexities of working with hash tables, hashing functions, or the hashed value of keys. The methods take keys directly, not in their hashed form.

Using Mutable Dictionaries

When removing an entry from a mutable dictionary, remember that the dictionary’s strong reference to the key and value objects that make up the entry are discarded. If there are no further strong references to the objects, they’re deallocated.

Adding objects to a mutable dictionary is relatively straightforward. To add a single key-value pair, or to replace the object for a particular key, use the setObject:forKey: instance method, as shown in Listing 1.

Listing 1  Adding objects to a dictionary

NSString *last = @"lastName";
NSString *first = @"firstName";

NSMutableDictionary *dict = [NSMutableDictionary dictionaryWithObjectsAndKeys:
        @"Jo", first, @"Smith", last, nil];
NSString *middle = @"middleInitial";

[dict setObject:@"M" forKey:middle];

You can also add entries from another dictionary using the addEntriesFromDictionary: instance method. If both dictionaries contain the same key, the receiver’s previous value object for that key is released and the new object takes its place. For example, after the code in Listing 2 executes, dict would have a value of “Jones” for the key “lastName”.

Listing 2  Adding entries from another dictionary

NSString *last = @"lastName";
NSString *first = @"firstName";
NSString *suffix = @"suffix";
NSString *title = @"title";

NSMutableDictionary *dict = [NSMutableDictionary dictionaryWithObjectsAndKeys:
    @"Jo", first, @"Smith", last, nil];

NSDictionary *newDict = [NSDictionary dictionaryWithObjectsAndKeys:
    @"Jones", last, @"Hon.", title, @"J.D.", suffix, nil];

[dict addEntriesFromDictionary: newDict];

Sorting a Dictionary

NSDictionary provides the method keysSortedByValueUsingSelector:, which returns an array of the dictionary’s keys in the order they would be in if the dictionary were sorted by its values, as illustrated in Listing 3.

Listing 3  Sorting dictionary keys by value

NSDictionary *dict = [NSDictionary dictionaryWithObjectsAndKeys:
    [NSNumber numberWithInt:63], @"Mathematics",
    [NSNumber numberWithInt:72], @"English",
    [NSNumber numberWithInt:55], @"History",
    [NSNumber numberWithInt:49], @"Geography",
    nil];

NSArray *sortedKeysArray =
    [dict keysSortedByValueUsingSelector:@selector(compare:)];
// sortedKeysArray contains: Geography, History, Mathematics, English

You can also use blocks to easily sort a dictionary’s keys based on their corresponding values. The keysSortedByValueUsingComparator: method of NSDictionary allows you to use a block to compare the keys to be sorted into a new array. Listing 4 illustrates sorting with a block.

Listing 4  Blocks ease custom sorting of dictionaries

NSArray *blockSortedKeys = [dict keysSortedByValueUsingComparator: ^(id obj1, id obj2) {

     if ([obj1 integerValue] > [obj2 integerValue]) {
          return (NSComparisonResult)NSOrderedDescending;
     }

     if ([obj1 integerValue] < [obj2 integerValue]) {
          return (NSComparisonResult)NSOrderedAscending;
     }
     return (NSComparisonResult)NSOrderedSame;
}];

Using Custom Keys

In most cases, Cocoa-provided objects such as NSString objects should be sufficient for use as keys. In some cases, however, it may be necessary to use custom objects as keys in a dictionary. When using custom objects as keys, there are some important points to keep in mind.

Keys must conform to the NSCopying protocol. Methods that add entries to dictionaries—whether as part of initialization (for all dictionaries) or during modification (for mutable dictionaries)— don’t add each key object to the dictionary directly. Instead, they copy each key argument and add the copy to the dictionary. After being copied into the dictionary, the dictionary-owned copies of the keys should not be modified.

Keys must implement the hash and isEqual: methods because a dictionary uses a hash table to organize its storage and to quickly access contained objects. In addition, performance in a dictionary is heavily dependent on the hash function used. With a bad hash function, the decrease in performance can be severe. For more information on the hash and isEqual: methods see NSObject.

Using Map Tables

The NSMapTable class is configured by default to hold objects much like NSMutableDictionary. It also allows additional storage options that you can tailor for specific cases, such as when you need advanced memory management options, or when you want to hold a specific type of pointer. For example, the map table in Figure 2 is configured to hold weak references to its value objects. You can also specify whether you want to copy objects entered into the array.

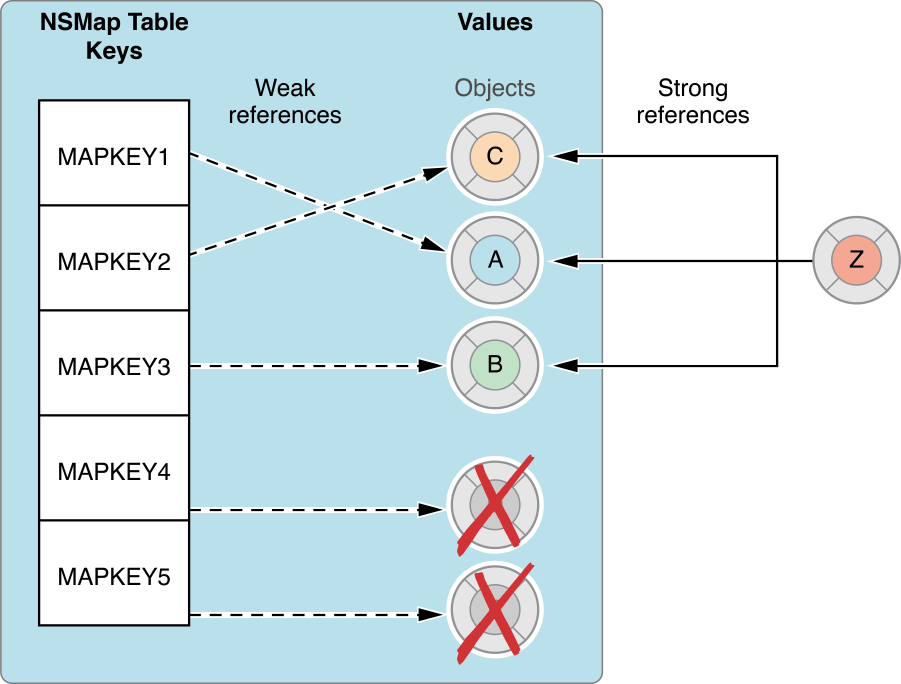

Figure 2  Map table object ownership

You can use an NSMapTable object when you want a collection of key-value pairs that uses weak references. For example, suppose you have a global map table that contains some objects. Because global objects are never collected, none of its contents can be deallocated unless they are held weakly. Map tables configured to hold objects weakly do not own their contents. If there are no strong references to objects within such a map table, those objects are deallocated. For example, the map table in Figure 2 holds weak references to its contents. Object D and Object E will be deallocated, but the rest of the objects remain.

To create a map table, create or initialize it using mapTableWithKeyOptions:valueOptions: or initWithKeyOptions:valueOptions:capacity: and the appropriate pointer functions options. Alternatively, you can initialize it using initWithKeyPointerFunctions:valuePointerFunctions:capacity: and appropriate instances of NSPointerFunctions. For more information on the pointer functions options, see “Pointer Function Options.”

The NSMapTable class also defines a number of convenience constructors for creating a map table with strong or weak references to its contents. For example, mapTableWithStrongToWeakObjects creates a map table that holds strong references to its keys and weak references to its values. These convenience constructors should only be used if you are storing objects.

To configure a map table to use arbitrary pointers, initialize it with both the NSPointerFunctionsOpaqueMemory and NSPointerFunctionsOpaquePersonality value options. Key and value options do not have to be the same. When using a map table to contain arbitrary pointers, the C function API for void * pointers should be used. For more information, see “Managing Map Tables” in Foundation Functions Reference. For example, you can add a pointer to an int value using the approach shown in Listing 5. Note that the map table uses NSString objects as keys, and that keys are copied into the map table.

Listing 5  Map table configured for non-object pointers

NSPointerFunctionsOptions keyOptions=NSPointerFunctionsStrongMemory |
     NSPointerFunctionsObjectPersonality | NSPointerFunctionsCopyIn;
NSPointerFunctionsOptions valueOptions=NSPointerFunctionsOpaqueMemory |
     NSPointerFunctionsOpaquePersonality;

NSMapTable *mapTable = [NSMapTable mapTableWithKeyOptions:keyOptions
        valueOptions:valueOptions];

NSString *key1 = @"Key1";
NSMapInsert(mapTable, key1, someIntPtr);

You can then access that integer by using the NSMapGet function.

NSLog(@" Key1 contains: %i", *(int *) NSMapGet(mapTable, @"Key1"));

When configured to use arbitrary pointers, a map table has the risks associated with using pointers. For example, if the pointers refer to stack-based data created in a function, those pointers are not valid outside of the function, even if the map table is. Trying to access them will lead to undefined behavior.
