Safari supports audio and video viewing in a webpage on the desktop and iOS. You can use
video HTML elements or use the
embed element to use the native application for video playback. In either case, you need to ensure that the video you create is optimized for the platform and different bandwidths.
iOS streams movies and audio using HTTP over EDGE, 3G, and Wi-Fi networks. iOS uses a native application to play back video even when video is embedded in your webpages. Video automatically expands to the size of the screen and rotates when the user changes orientation. The controls automatically hide when they are not in use and appear when the user taps the screen. This is the experience the user expects when viewing all video on iOS.
Safari on the desktop supports the same audio and video formats as Safari on iOS. However, if you use the
video HTML elements on the desktop, you can customize the play back controls. See Safari DOM Additions Reference for more details on the
Follow these guidelines to deliver the best web audio and video experience in Safari on any platform:
Use QuickTime Pro to encode H.264/AAC at appropriate sizes and bit rates for EDGE, 3G, and Wi-Fi networks, as described in “Encoding Video for Wi-Fi, 3G, and EDGE.”
Use reference movies so that iOS automatically streams the best version of your content for the current network connection, as described in “Creating a Reference Movie.”
Use poster JPEGs (not poster frames in a movie) to display a preview of your embedded movie in webpages, as described in “Creating a Poster Image for Movies.”
Make sure the HTTP servers hosting your media files support byte-range requests, as described in “Configuring Your Server.”
If your site has a custom media player, also provide direct links to the media files. iOS users can follow these links to play those files directly.
Sizing Movies Appropriately
In landscape orientation on iOS, the screen is 480 x 320 pixels. Users can easily switch the view mode between scaled-to-fit (letterboxed) and full-screen (centered and cropped). You should use a size that preserves the aspect ratio of your content and fits within a 480 x 360 rectangle. 480 x 360 is a good choice for 4:3 aspect ratio content and 480 x 270 is a good choice for widescreen content as it keeps the video sharp in full-screen view mode. You can also use 640 x 360 or anamorphic 640 x 480 with pixel aspect ratio tagging for widescreen content.
Don’t Let the Bit Rate Stall Your Movie
When viewing media over the network, the bit rate makes a crucial difference to the playback experience. If the network cannot keep up with the media bit rate, playback stalls. Encode your media for iOS as described in “Encoding Video for Wi-Fi, 3G, and EDGE” and use a reference movie as described in “Creating a Reference Movie.”
Using Supported Movie Standards
The following compression standards are supported:
H.264 Baseline Profile Level 3.0 video, up to 640 x 480 at 30 fps. Note that B frames are not supported in the Baseline profile.
MPEG-4 Part 2 video (Simple Profile)
AAC-LC audio, up to 48 kHz
Movie files with the extensions
.3gp are supported.
Any movies or audio files that can play on iPod play correctly on iPhone.
If you export your movies using QuickTime Pro 7.2, as described in “Encoding Video for Wi-Fi, 3G, and EDGE,” then you can be sure that they are optimized to play on iOS.
Encoding Video for Wi-Fi, 3G, and EDGE
Because users may be connected to the Internet via wired or wireless technology, using either Wi-Fi, 3G, or EDGE on iOS, you need to provide alternate media for these different connection speeds. You can use QuickTime Pro, the QuickTime API, or any Apple applications that provide iOS exporters to encode your video for Wi-Fi, 3G, and EDGE. This section contains specific instructions for exporting video using QuickTime Pro.
Follow these steps to export video using QuickTime Pro 7.2.1 and later:
Open your movie using QuickTime Player Pro.
Choose File > Export for Web.
A dialog appears.
Enter the file name prefix, location of your export, and set of versions to export as shown in Figure 9-1.
QuickTime Player Pro saves these versions of your QuickTime movie, along with a reference movie, poster image, and
ReadMe.htmlfile to the specified location. See the
ReadMe.htmlfile for instructions on embedding the generated movie in your webpage, including sample HTML.
Creating a Reference Movie

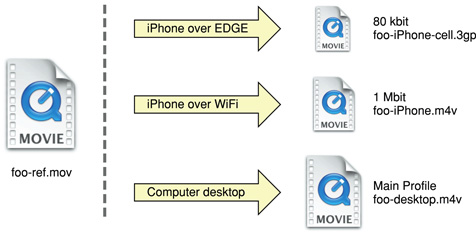

A reference movie contains a list of movie URLs, each of which has a list of tests, as show in Figure 9-2. When opening the reference movie, a playback device or computer chooses one of the movie URLs by finding the last one that passes all its tests. Tests can check the capabilities of the device or computer and the speed of the network connection.
If you use QuickTime Pro 7.2.1 or later to export your movies for iOS, as described in “Encoding Video for Wi-Fi, 3G, and EDGE,” then you already have a reference movie. Otherwise, you can use the MakeRefMovie tool to create reference movies. For more information on creating reference movies see Creating Reference Movies - MakeRefMovie.
Also, refer to the MakeiPhoneRefMovie sample for a command-line tool that creates reference movies.
For more details on reference movies and instructions on how to set them up see “Applications and Examples” in HTML Scripting Guide for QuickTime.
Creating a Poster Image for Movies
The video is not decoded until the user enters movie playback mode. Consequently, when displaying a webpage with video, users may see a gray rectangle with a QuickTime logo until they tap the Play button. Therefore, use a poster JPEG as a preview of your movie. If you use QuickTime Pro 7.2.1 or later to export your movies, as described in “Encoding Video for Wi-Fi, 3G, and EDGE,” then a poster image is already created for you. Otherwise, follow these instructions to set a poster image.
If you are using the
<video> element, specify a poster image by setting the
poster attribute as follows:
<video poster="poster.jpg" src="movie.m4v" ...> </video>
If you are using an
<embed> HTML element, specify a poster image by setting the image for
src, the movie for
href, the media MIME type for
myself as the
<embed src="poster.jpg" href="movie.m4v" type="video/x-m4v" target="myself" scale="1" ...>
Make similar changes if you are using the
On the desktop, this image is displayed until the user clicks, at which time the movie is substituted.
Configuring Your Server
HTTP servers hosting media files for iOS must support byte-range requests, which iOS uses to perform random access in media playback. (Byte-range support is also known as content-range or partial-range support.) Most, but not all, HTTP 1.1 servers already support byte-range requests.
If you are not sure whether your media server supports byte-range requests, you can open the Terminal application in OS X and use the
curl command-line tool to download a short segment from a file on the server:
curl --range 0-99 http://example.com/test.mov -o /dev/null
If the tool reports that it downloaded 100 bytes, the media server correctly handled the byte-range request. If it downloads the entire file, you may need to update the media server. For more information on
curl, see OS X Man Pages.
Ensure that your HTTP server sends the correct MIME types for the movie filename extensions shown in Table 9-1.
Be aware that iOS supports movies larger than 2 GB. However, some older web servers are not able to serve files this large. Apache 2 supports downloading files larger than 2 GB.
RTSP is not supported.
