Alternative Design Considerations

Most document-based apps can use the information presented in other chapters of this document. However, some apps have particular requirements necessitating alternate techniques, some of which are discussed in this chapter.

Overriding the URL and File Package Reading Methods

There are situations in which the simplest solution for document reading, overriding the data-based reading method, readFromData:ofType:error:, as described in “Reading Document Data,” is not sufficient. In such cases, you can override another NSDocument reading method instead, such as the URL-based and file package reading methods.

If your app needs access to the URL of a document file, you should override the readFromURL:ofType:error: method instead of readFromData:ofType:error:, as in the example implementation shown in Listing 6-1.

This example assumes that the app has an NSTextView object configured with an NSTextStorage object to display the document’s data. The NSDocument object has text and setText: accessors for the document’s NSAttributedString data model.

Listing 6-1  URL-based document-reading method implementation

- (BOOL)readFromURL:(NSURL *)inAbsoluteURL ofType:(NSString *)inTypeName
                                            error:(NSError **)outError {
    BOOL readSuccess = NO;
    NSAttributedString *fileContents = [[NSAttributedString alloc]
                                initWithURL:inAbsoluteURL options:nil
                                documentAttributes:NULL error:outError];
    if (fileContents) {
        readSuccess = YES;
        [self setText:fileContents];
    }
    return readSuccess;
}

If your app needs to manipulate directly a document file that is a file package, you should override the readFromFileWrapper:ofType:error: method instead of readFromData:ofType:error:. For example, if your document contains an image file and a text file, you can store both in a file package. A major advantage of this arrangement is that if only one of those objects changes during an editing session, you don’t need to save both objects to disk but can save just the changed one. Figure 6-1 shows a file package containing an image file and an object archive.

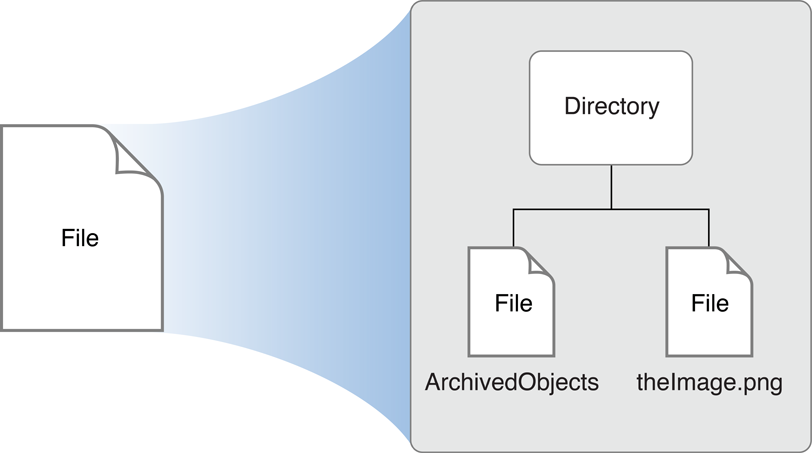

Figure 6-1  File package containing an image

When opening a document, the method looks for the image and text file wrappers. For each wrapper, the method extracts the data from it and keeps the file wrapper itself. The file wrappers are kept so that, if the corresponding data hasn't been changed, they can be reused during a save and thus the source file itself can be reused rather than rewritten. Keeping the file wrapper avoids the overhead of syncing data unnecessarily. Listing 6-3 shows an override of the NSDocument file wrapper reading method readFromFileWrapper:ofType:error:.

The example code in Listing 6-3 (and its corresponding file wrapper writing override shown in Listing 6-5) assume the existence of some auto-synthesized properties and constants, such as those shown in Listing 6-2; of course, a complete NSDocument implementation also requires some additional program logic.

Listing 6-2  File wrapper example properties and constants

@property (assign) IBOutlet NSTextView *textView;
@property (nonatomic, strong) NSImage *image;
@property (strong) NSString *notes;
@property (strong) NSFileWrapper *documentFileWrapper;

NSString *ImageFileName = @"Image.png";
NSString *TextFileName = @"Text.txt";
NSStringEncoding TextFileEncoding = NSUTF8StringEncoding;


Listing 6-3  File wrapper document-reading method implementation

- (BOOL)readFromFileWrapper:(NSFileWrapper *)fileWrapper
                     ofType:(NSString *)typeName
                      error:(NSError **)outError {

    NSDictionary *fileWrappers = [fileWrapper fileWrappers];
    NSFileWrapper *imageFileWrapper = [fileWrappers objectForKey:ImageFileName];
    if (imageFileWrapper != nil) {

        NSData *imageData = [imageFileWrapper regularFileContents];
        NSImage *image = [[NSImage alloc] initWithData:imageData];
        [self setImage:image];
    }

    NSFileWrapper *textFileWrapper = [fileWrappers objectForKey:TextFileName];
    if (textFileWrapper != nil) {

       NSData *textData = [textFileWrapper regularFileContents];
       NSString *notes = [[NSString alloc] initWithData:textData
                                               encoding:TextFileEncoding];
       [self setNotes:notes];
    }

    [self setDocumentFileWrapper:fileWrapper];

    return YES;
}

If the data related to a file wrapper changes (a new image is added or the text is edited), the corresponding file wrapper object is disposed of and a new file wrapper created on save. See Listing 6-5 which shows an override of the corresponding file writing method, fileWrapperOfType:error:.

Overriding the URL and File Package Writing Methods

As with document reading, there are situations in which the simplest solution for document writing, overriding the data-based writing method, dataOfType:error:, as described in “Writing Document Data,” is not sufficient. In such cases, you can override another NSDocument writing method instead, such as the URL-based and file package writing methods.

If your app needs access to the URL of a document file, you should override the NSDocument URL-based writing method, writeToURL:ofType:error:, as shown in Listing 6-4. This example has the same assumptions as Listing 6-1.

Listing 6-4  URL-based document-writing method implementation

- (BOOL)writeToURL:(NSURL *)inAbsoluteURL ofType:(NSString *)inTypeName
                                           error:(NSError **)outError {
    NSData *data = [[self text] RTFFromRange:NSMakeRange(0,
                    [[self text] length]) documentAttributes:nil];
    BOOL writeSuccess = [data writeToURL:inAbsoluteURL
                               options:NSAtomicWrite error:outError];
    return writeSuccess;
}

If your override cannot determine all of the information it needs from the passed-in parameters, consider overriding another method. For example, if you see the need to invoke fileURL from within an override of writeToURL:ofType:error:, you should instead override writeToURL:ofType:forSaveOperation:originalContentsURL:error:. Override this method if your document writing machinery needs access to the on-disk representation of the document revision that is about to be overwritten. This method is responsible for doing document writing in a way that minimizes the danger of leaving the disk to which writing is being done in an inconsistent state in the event of a software crash, hardware failure, or power outage.

If your app needs to directly manipulate a document file that is a file package, you should override the fileWrapperOfType:error: method instead of dataOfType:error:. An example file wrapper writing method implementation is shown in Listing 6-5. In this implementation, if the document was not read from a file or was not previously saved, it doesn't have a file wrapper, so the method creates one. Likewise, if the document file wrapper doesn’t contain a file wrapper for an image and the image is not nil, the method creates a file wrapper for the image and adds it to the document file wrapper. And if there isn’t a wrapper for the text file, the method creates one.

Listing 6-5  File wrapper document-writing method override

- (NSFileWrapper *)fileWrapperOfType:(NSString *)typeName
                               error:(NSError **)outError {

    if ([self documentFileWrapper] == nil) {
        NSFileWrapper * documentFileWrapper = [[NSFileWrapper alloc]
                                              initDirectoryWithFileWrappers:nil];
        [self setDocumentFileWrapper:documentFileWrapper];
    }

    NSDictionary *fileWrappers = [[self documentFileWrapper] fileWrappers];

    if (([fileWrappers objectForKey:ImageFileName] == nil) &&
        ([self image] != nil)) {

         NSArray *imageRepresentations = [self.image representations];
        NSData *imageData = [NSBitmapImageRep
                            representationOfImageRepsInArray:imageRepresentations
                                                   usingType:NSPNGFileType
                                                  properties:nil];
        if (imageData == nil) {
            NSBitmapImageRep *imageRep = nil;
            @autoreleasepool {
                imageData = [self.image TIFFRepresentation];
                imageRep = [[NSBitmapImageRep alloc] initWithData:imageData];
            }
            imageData = [imageRep representationUsingType:NSPNGFileType
                                               properties:nil];
        }

        NSFileWrapper *imageFileWrapper = [[NSFileWrapper alloc]
                                          initRegularFileWithContents:imageData];
        [imageFileWrapper setPreferredFilename:ImageFileName];

        [[self documentFileWrapper] addFileWrapper:imageFileWrapper];
    }

    if ([fileWrappers objectForKey:TextFileName] == nil) {
        NSData *textData = [[[self textView] string]
                                           dataUsingEncoding:TextFileEncoding];
        NSFileWrapper *textFileWrapper = [[NSFileWrapper alloc]
                                         initRegularFileWithContents:textData];
        [textFileWrapper setPreferredFilename:TextFileName];
        [[self documentFileWrapper] addFileWrapper:textFileWrapper];
    }
    return [self documentFileWrapper];
}

Incremental Data Reading and Writing

If your app has a large data set, you may want to read and write increments of your files as needed to ensure a good user experience. Consider the following strategies:

For more information about reading and writing files, see File System Programming Guide.

Multiple Document Types Use Multiple NSDocument Subclasses

The document architecture provides support for apps that handle multiple types of documents, each type using its own subclass of NSDocument. For example, you could have an app that enables users to create text documents, spreadsheets, and other types of documents, all in a single app. Such different document types each require a different user interface encapsulated in a unique NSDocument subclass.

If your multiple-document-type app opens only existing documents, you can use the default NSDocumentController instance, because the document type is determined from the file being opened. However, if your app creates new documents, it needs to choose the correct type.

The NSDocumentController action method newDocument: creates a new document of the first type listed in the app’s array of document types configured in the Info.plist file. But automatically creating the first type does not work for apps that support several distinct types of document. If your app cannot determine which type to create depending on circumstances, you must provide a user interface allowing the user to choose which type of document to create.

You can create your own new actions, either in your app’s delegate or in an NSDocumentController subclass. You could create several action methods and have several different New menu items, or you could have one action that asks the user to pick a document type before creating a new document.

Once the user selects a type, your action method can use the NSDocumentController method makeUntitledDocumentOfType:error: to create a document of the correct type. After creating the document, your method should add it to the document controller’s list of documents, and it should send the document makeWindowControllers and showWindows messages.

Alternatively, if you subclass NSDocumentController, you can override the defaultType method to determine the document type and return it when the user chooses New from the File menu.

Additional Document Type Considerations

If your app has some document types that it can read but not write, you can declare this by setting the role for those types to Viewer instead of Editor in Xcode. If your app has some types that it can write but not read, you can declare this by using the NSExportableTypes key. You can include the NSExportableTypes key in the type dictionary for another type that your document class supports, usually the type dictionary for the most native type for your document class. Its value is an array of UTIs defining a supported file type to which this document can export its content.

The Sketch sample app uses this key to allow it to export TIFF and PDF images even though it cannot read those types. Write-only types can be chosen only when doing Save As operations. They are not allowed for Save operations.

Sometimes an app might understand how to read a type, but not how to write it, and when it reads documents of that type, it should automatically convert them to another type that you can write. An example would be an app that can read documents from an older version or from a competing product. It might want to read in the old documents and automatically convert them to the new native format. The first step is to add the old type as a read-only type. By doing this, your app is able to open the old files, but they come up as untitled files.

If you want to automatically convert them to be saved as your new type, you can override the readFrom... methods in your NSDocument subclass to call super and then reset the filename and type afterwards. You should use setFileType: and setFileURL: to set an appropriate type and name for the new document. When setting the filename, make sure to strip the filename extension of the old type from the original filename, if it is there, and add the extension for the new type.

Customizing the Save Dialog

By default, when NSDocument runs the Save dialog and the document has multiple writable document types, NSDocument inserts an accessory view near the bottom of the dialog. This view contains a pop-up menu of the writable types. If you don’t want this pop-up menu, override shouldRunSavePanelWithAccessoryView to return NO. You can also override prepareSavePanel: to customize the Save dialog.

Customizing Document Window Titles

Subclasses of NSDocument sometimes override displayName to customize the titles of windows associated with the document. That is rarely the right thing to do because the document’s display name is used in places other than the window title, and the custom value that an app might want to use as a window title is often not appropriate. For example, the document display name is used in the following places:

To customize a document’s window title properly, subclass NSWindowController and override windowTitleForDocumentDisplayName:. If your app requires even deeper customization, override synchronizeWindowTitleWithDocumentName.

Customizing Document Closing

If a document has multiple windows, each window has its own window controller. For example, a document might have a main data-entry window and a window that lists records for selection; each window would have its own NSWindowController object.

If you have multiple window controllers for a single document, you may want to explicitly control document closing. By default, a document closes when its last remaining window controller closes. However, if you want the document to close when a particular window closes—the document’s “main” window, for example—then you can send the main window controller a setShouldCloseDocument: message with a value of YES.

Message Flow in the Document Architecture

The objects that form the document architecture interact to perform the activities of document-based apps, and those interactions proceed primarily through messages sent among the objects via public APIs. This message flow provides many opportunities for you to customize the behavior of your app by overriding methods in your NSDocument subclass or other subclasses.

This section describes default message flow among major objects of the document architecture, including objects sending messages to themselves; it leaves out various objects and messages peripheral to the main mechanisms. Also, these messages are sent by the default implementations of the methods in question, and the behavior of subclasses may differ.

Creating a New Document

The document architecture creates a new document when the user chooses New from the File menu of a document-based app. This action begins a sequence of messages among the NSDocumentController object, the newly created NSDocument object, and the NSWindowController object, as shown in Figure 6-2.

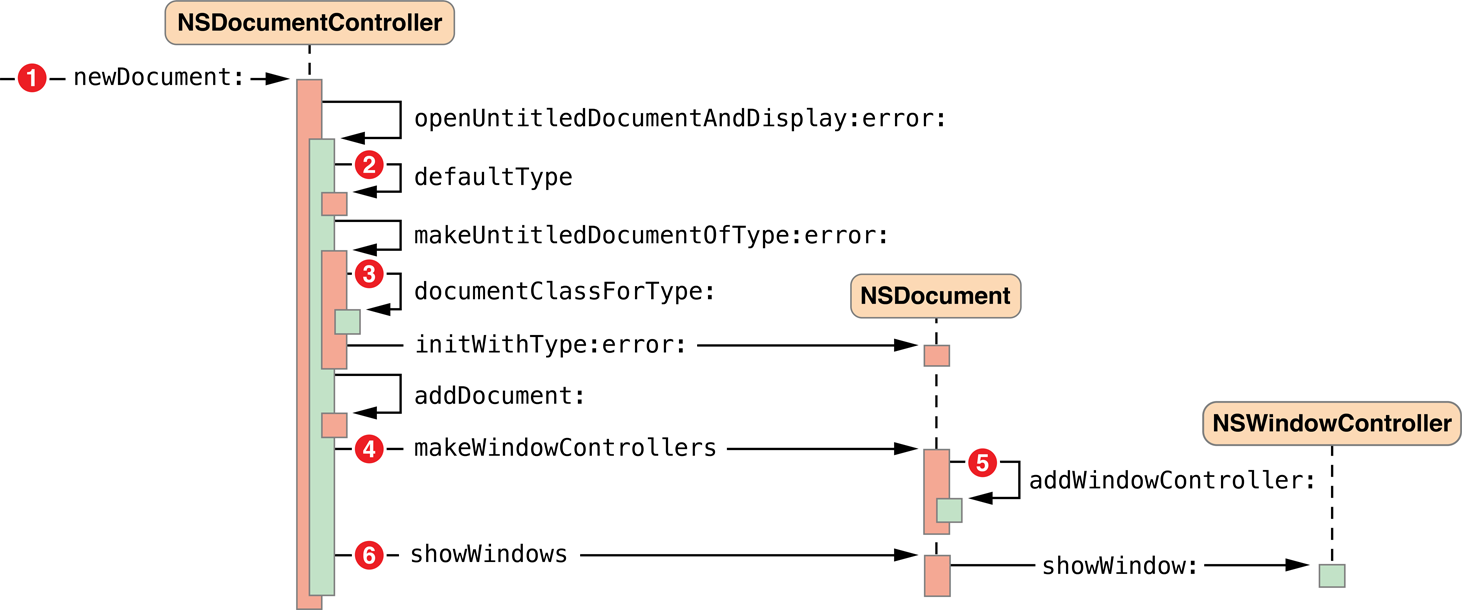

Figure 6-2  Creating a new document
Creating a new documentCreating a new document

The sequence numbers in Figure 6-2 refer to the following steps in the document-creation process:

  1. The user chooses New from the File menu, causing the newDocument: message to be sent to the document controller (or an Apple event, for example, sends an equivalent message).

  2. The openUntitledDocumentAndDisplay:error: method determines the default document type (stored in the app’s Info.plist file) and sends it with the makeUntitledDocumentOfType:error:message.

  3. The makeUntitledDocumentOfType:error: method determines the NSDocument subclass corresponding to the document type, instantiates the document object, and sends it an initialization message.

  4. The document controller adds the new document to its document list and, if the first parameter passed with openUntitledDocumentAndDisplay:error: is YES, sends the document a message to create a window controller for its window, which is stored in its nib file. The NSDocument subclass can override makeWindowControllers if it has more than one window.

  5. The document adds the new window controller to its list of window controllers by sending itself an addWindowController: message.

  6. The document controller sends the document a message to show its windows. In response, the document sends the window controller a showWindow: message, which makes the window main and key.

If the first parameter passed with openUntitledDocumentAndDisplay:error: is NO, the document controller needs to explicitly send the document makeWindowControllers and showWindows messages to display the document window.

Opening a Document

The document architecture opens a document, reading its contents from a file, when the user chooses Open from the File menu. This action begins a sequence of messages among the NSDocumentController, NSOpenPanel, NSDocument, and NSWindowController objects, as shown in Figure 6-3.

There are many similarities between the mechanisms for opening a document and creating a new document. In both cases the document controller needs to create and initialize an NSDocument object, using the proper NSDocument subclass corresponding to the document type; the document controller needs to add the document to its document list; and the document needs to create a window controller and tell it to show its window.

Document Opening Message Flow

Opening a document differs from creating a new document in several ways. If document opening was invoked by the user choosing Open from the File menu, the document controller must run an Open dialog to allow the user to select a file to provide the contents of the document. An Apple event can invoke a different message sequence. In either case, the document must read its content data from a file and keep track of the file’s meta-information, such as its URL, type, and modification date.

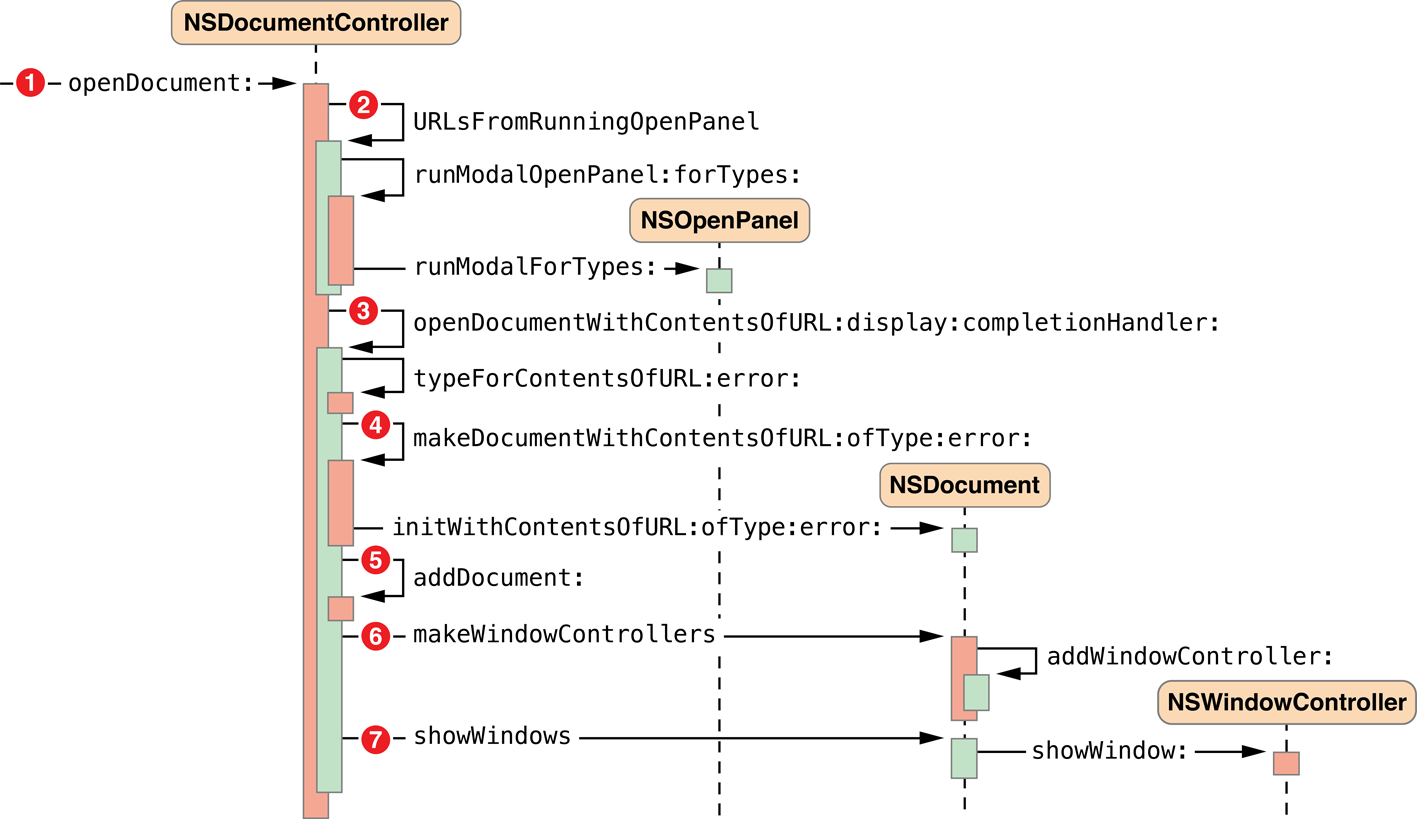

Figure 6-3  Opening a document
Opening a documentOpening a document

The sequence numbers in Figure 6-3 refer to the following steps in the document-opening process:

  1. The user chooses Open from the File menu, causing the openDocument: message to be sent to the document controller.

  2. The URL locating the document file must be retrieved from the user, so the NSDocumentController object sends itself the URLsFromRunningOpenPanel message. After this method creates the Open dialog and sets it up appropriately, the document controller sends itself the runModalOpenPanel:forTypes: message to present the Open dialog to the user. The NSDocumentController object sends the runModalForTypes: message to the NSOpenPanel object.

  3. With the resulting URL, the NSDocumentController object sends itself the openDocumentWithContentsOfURL:display:completionHandler: message.

  4. The NSDocumentController object sends itself the makeDocumentWithContentsOfURL:ofType:error: message and sends the initWithContentsOfURL:ofType:error: message to the newly created NSDocument object. This method initializes the document and reads in its contents from the file located at the specified URL. “Document Initialization Message Flow” describes document initialization in this context.

  5. When makeDocumentWithContentsOfURL:ofType:error: returns an initialized NSDocument object, the NSDocumentController object adds the document to its document list by sending the addDocument: message to itself.

  6. To display the document’s user interface, the document controller sends the makeWindowControllers message to the NSDocument object, which creates an NSWindowController instance and adds it to its list using the addWindowController: message.

  7. Finally, the document controller sends the showWindows message to the NSDocument object, which, in turn, sends the showWindow: message to the NSWindowController object, making the window main and key.

  8. If the URLsFromRunningOpenPanel method returned an array with more than one URL, steps 3 through 7 repeat for each URL returned.

Document Initialization Message Flow

Steps in the document-initialization process for document creation are shown in Figure 6-4. Document initialization in the context of document opening is noteworthy because it invokes the document's location-based or data-based reading and writing methods, and you must override one of them. Steps in the document-initialization process for document opening are shown in Figure 6-5.

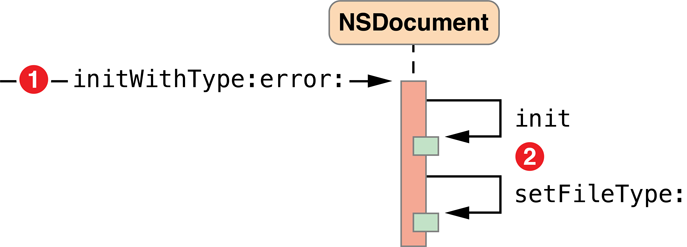

Figure 6-4  Document initialization for document creation
Document initialization for document creation

The sequence numbers in Figure 6-4 refer to the following steps in the document-initialization process:

  1. The NSDocumentController object begins document initialization by sending the initWithType:error: message to the newly created NSDocument object.

  2. The NSDocument object sends the init message to itself, invoking its designated initializer, then sets its filetype by sending itself the message setFileType:.

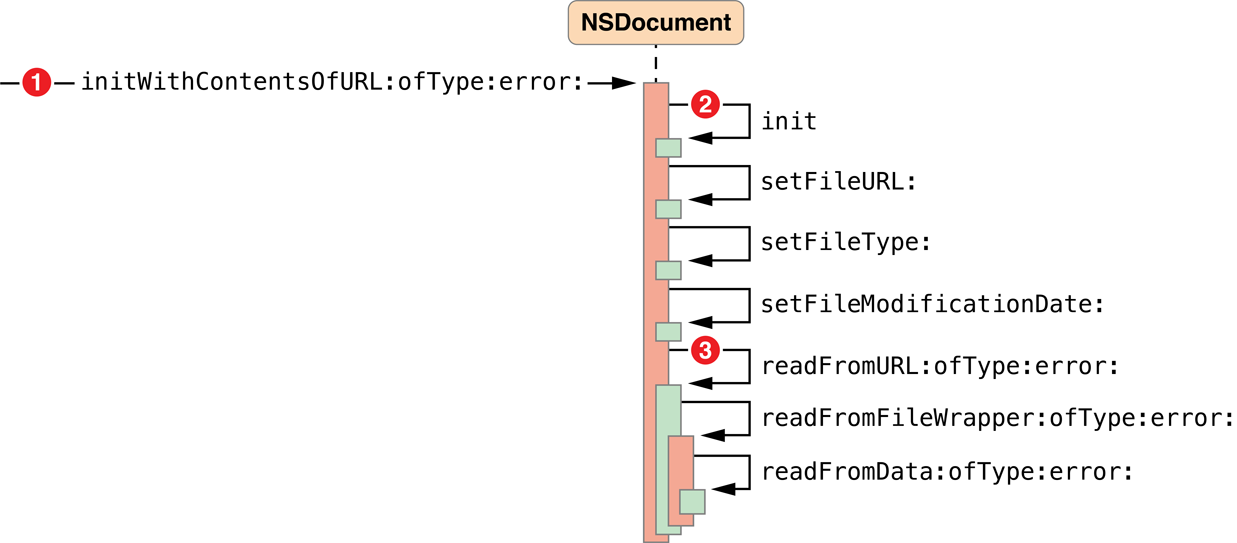

Figure 6-5  Document initialization for document opening
Document initialization for document opening

The sequence numbers in Figure 6-5 refer to the following steps in the document-opening process:

  1. The NSDocumentController object begins document initialization by sending the initWithContentsOfURL:ofType:error: message to the newly created NSDocument object.

  2. The NSDocument object sends the init message to itself, invoking its designated initializer, then sets its metadata about the file it is about to open by sending itself the messages setFileURL:, setFileType:, and setFileModificationDate:.

  3. The NSDocument object reads the contents of the file by sending the readFromURL:ofType:error: message to itself. That method gets a file wrapper from disk and reads it by sending the readFromFileWrapper:ofType:error: message to itself. Finally, the NSDocument object puts the file contents into an NSData object and sends the readFromData:ofType:error: message to itself.

    Your NSDocument subclass must override one of the three document-reading methods (readFromURL:ofType:error:, readFromData:ofType:error:, or readFromFileWrapper:ofType:error:) or every method that may invoke readFromURL:ofType:error:.

Saving a Document

The document architecture saves a document—writes its contents to a file—when the user chooses one of the Save commands or Export from the File menu. Saving is handled primarily by the document object itself. Steps in the document-saving process are shown in Figure 6-6.

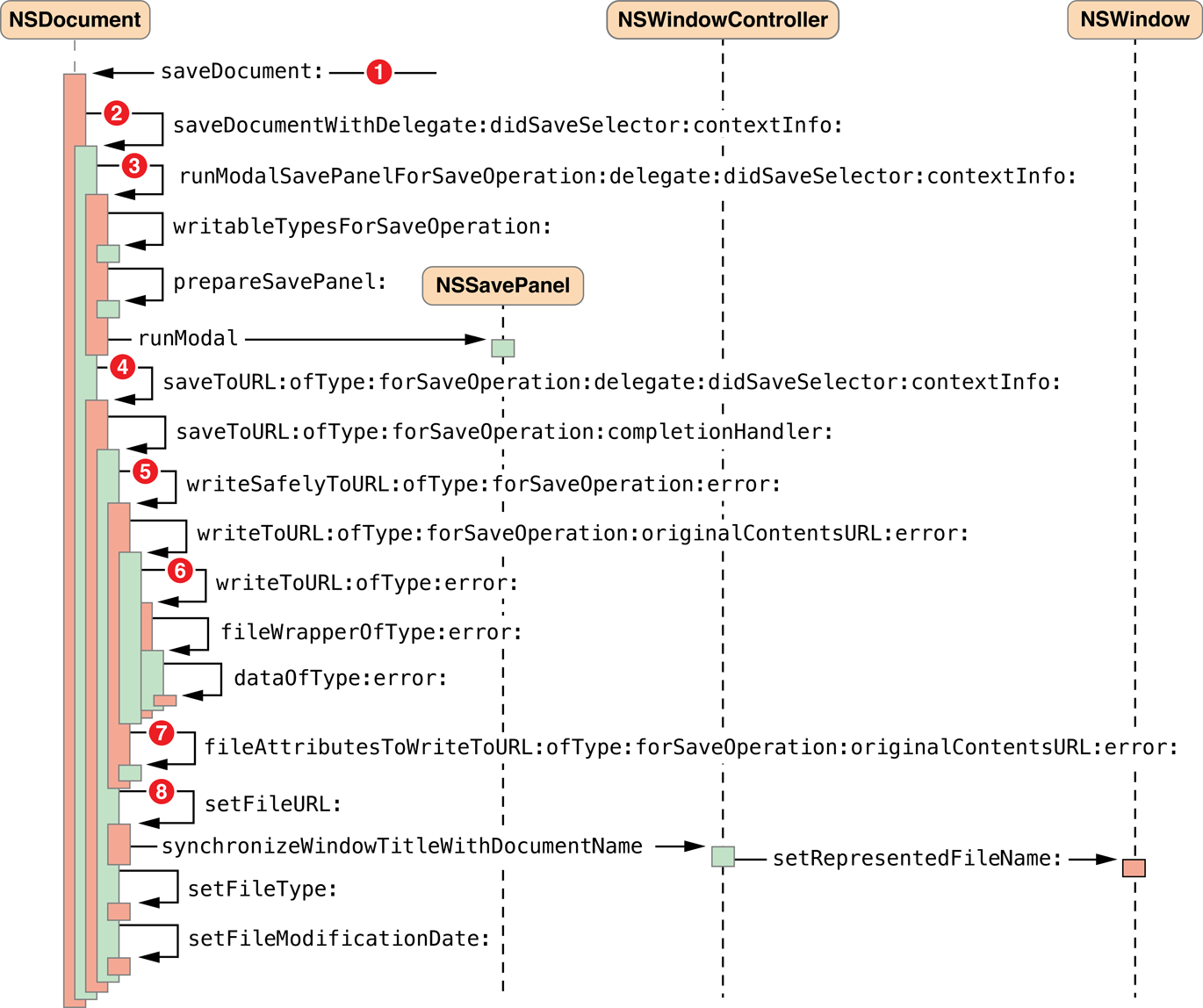

Figure 6-6  Saving a document
Saving a documentSaving a document

The sequence numbers in Figure 6-6 refer to the following steps in the document-saving process:

  1. The user chooses Save As (document has never been saved) or Save a Version (document has been saved before) from the File menu, causing the saveDocument: message to be sent to the NSDocument object.

  2. The NSDocument object sends the saveDocumentWithDelegate:didSaveSelector:contextInfo: message to itself.

    If the document has never been saved, or if the user has moved or renamed the document file, then the NSDocument object runs a modal Save dialog to get the file location under which to save the document.

  3. To run the Save dialog, the NSDocument object sends the runModalSavePanelForSaveOperation:delegate:didSaveSelector:contextInfo: message to itself. The document sends prepareSavePanel: to itself to give subclasses an opportunity to customize the Save dialog, then sends runModal to the NSSavePanel object.

  4. The NSDocument object sends the saveToURL:ofType:forSaveOperation:delegate:didSaveSelector:contextInfo: and, in turn, saveToURL:ofType:forSaveOperation:error: to itself.

  5. The NSDocument object sends the writeSafelyToURL:ofType:forSaveOperation:error: message to itself. The default implementation either creates a temporary directory in which the document writing should be done, or renames the old on-disk revision of the document, depending on what sort of save operation is being done, whether or not there’s already a copy of the document on disk, and the capabilities of the file system to which writing is being done. Then it sends the writeToURL:ofType:forSaveOperation:originalContentsURL:error: message to the document.

  6. To write the document contents to the file, the NSDocument object sends itself the writeToURL:ofType:error: message, which by default sends the document the fileWrapperOfType:error: message. That method, in turn, sends the document the dataOfType:error: message to create an NSData object containing the contents of the document. (For backward compatibility, if the deprecated dataRepresentationOfType: is overridden, the document sends itself that message instead.)

    The NSDocument subclass must override one of its document-writing methods (dataOfType:error:, writeToURL:ofType:error:, fileWrapperOfType:error:, or writeToURL:ofType:forSaveOperation:originalContentsURL:error:).

  7. The NSDocument object sends the fileAttributesToWriteToURL:ofType:forSaveOperation:originalContentsURL:error: message to itself to get the file attributes, if any, which it writes to the file. The method then moves the just-written file to its final location, or deletes the old on-disk revision of the document, and deletes any temporary directories.

  8. The NSDocument object updates its location, file type, and modification date by sending itself the messages setFileURL:, setFileType:, and setFileModificationDate: if appropriate.
