iOS Keys

The iOS frameworks provide the infrastructure you need for creating iOS apps. You use the keys associated with this framework to configure the appearance of your app at launch time and the behavior of your app once it is running.

UIKit keys use the prefix UI to distinguish them from other keys. Other frameworks also use appropriate prefixes. Several Info.plist keys for iOS, tvOS, and watchOS employ the NS prefix and are described in the Cocoa Keys chapter in this document.

For more information about configuring the information property-list file of your iOS app, see App Programming Guide for iOS.

Key Summary

Table 1 contains an alphabetical listing of iOS keys, the corresponding name for that key in the Xcode property list editor, a high-level description of each key, and the platforms on which you use it. Detailed information about each key is available in later sections.

Table 1  Summary of UIKit keys

Key

Xcode name

Summary

Availability

CoreSpotlightContinuation

(none)

Specifies whether the app supports Spotlight query continuation. See CoreSpotlightContinuation for details.

iOS 10.0 and later

INAlternativeAppNames

(none)

Specifies alternative names by which users can refer to the app in Siri. See INAlternativeAppNames for details.

iOS 11.0 and later

MKDirectionsApplicationSupportedModes

(none)

Specifies the types of directions the app can deliver. See MKDirectionsApplicationSupportedModes for details.

iOS 6.0 and later

UIAppFonts

“Fonts provided by application”

Specifies a list of app-specific fonts. See UIAppFonts for details.

iOS 3.2 and later

UIApplicationExitsOnSuspend

“Application does not run in background”

Specifies whether the app terminates instead of run in the background. See UIApplicationExitsOnSuspend for details.

iOS 4.0 and later

UIApplicationShortcutItems

(none)

Specifies the static Home screen quick actions for the app. See UIApplicationShortcutItems for details.

iOS 9.0 and later

UIApplicationShortcutWidget

(none)

Specifies the bundle ID of the widget to be available as a Home screen quick action, for apps that have more than one widget. See UIApplicationShortcutWidget for details.

iOS 10.0 and later

UIAppSupportsHDR

"Supports HDR color mode”

Specifies whether the app supports HDR mode on Apple TV 4K. See UIAppSupportsHDR for details.

tvOS 11.2 and later

UIBackgroundModes

“Required background modes”

Specifies that the app needs to continue running in the background. See UIBackgroundModes for details.

iOS 4.0 and later, watchOS 4.0 and later

UIDeviceFamily

“Targeted device family”

Inserted automatically by Xcode to define the target device of the app. See UIDeviceFamily for details.

iOS 3.2 and later

UIFileSharingEnabled

“Application supports iTunes file sharing”

Specifies whether the app shares files with the user’s computer through iTunes. See UIFileSharingEnabled for details.

iOS 3.2 and later

UIInterfaceOrientation

“Initial interface orientation”

Specifies the initial orientation of the app’s user interface. See UIInterfaceOrientation for details.

iOS

UILaunchImageFile

“Launch image”

Specifies the name of the app’s launch image. See UILaunchImageFile for details.

iOS 3.2 and later

UILaunchImages

(none)

Specifies the launch images to use for the app. See UILaunchImages for details.

iOS 7.0 and later

UILaunchStoryboardName

(none)

Specifies the storyboard from which to generate a launch image to use for the app. See UILaunchStoryboardName for details.

iOS 9.0 and later

UILaunchStoryboards

(none)

Specifies information about multiple storyboards from which to generate launch images for an app. See UILaunchStoryboards for details.

iOS 9.0 and later

UINewsstandApp

(none)

Specifies whether the app presents its content in Newsstand. See UINewsstandApp for details.

iOS 5.0 and later

UIPrerenderedIcon

“Icon already includes gloss effects”

Specifies whether the app’s icon already includes a shine effect. See UIPrerenderedIcon for details.

iOS

UIRequiredDeviceCapabilities

“Required device capabilities”

Specifies the device-related features required for the app to run. See UIRequiredDeviceCapabilities for details.

iOS 3.0 and later

UIRequiresPersistentWiFi

“Application uses Wi-Fi”

Specifies whether this app requires a Wi-Fi connection. See UIRequiresPersistentWiFi for details.

iOS

UIStatusBarHidden

“Status bar is initially hidden”

Specifies whether the status bar is initially hidden when the app launches. See UIStatusBarHidden for details.

iOS

UIStatusBarStyle

“Status bar style”

Specifies the style of the status bar as the app launches. See UIStatusBarStyle for details.

iOS

UISupportedExternalAccessoryProtocols

“Supported external accessory protocols”

Specifies the communications protocols supported for communication with attached hardware accessories. See UISupportedExternalAccessoryProtocols for details.

iOS 3.0 and later

UISupportedInterfaceOrientations

“Supported interface orientations”

Specifies the interface orientations that the app supports. See UISupportedInterfaceOrientations for details.

iOS 3.2 and later

UISupportsDocumentBrowser

“Supports Document Browser”

Specifies that the app is a document-based app. See UISupportsDocumentBrowser for details.

iOS 11.0 and later

UIUserInterfaceStyle

“User Interface Style”

Specifies the preferred user interface appearance—light or dark—for a tvOS app. See UIUserInterfaceStyle for details.

tvOS 10.0 and later

UIViewControllerBasedStatusBarAppearance

(none)

Specifies whether the view controller determines the status bar style. See UIViewControllerBasedStatusBarAppearance for details.

iOS 7.0 and later

UIViewEdgeAntialiasing

“Renders with edge antialiasing”

Specifies whether Core Animation layers use antialiasing when drawing does not align to pixel boundaries. See UIViewEdgeAntialiasing for details.

iOS 3.0 and later

UIViewGroupOpacity

“Renders with group opacity”

Specifies whether Core Animation layers inherit the opacity of their superlayer. See UIViewGroupOpacity for details.

iOS 3.0 and later

UIWhitePointAdaptivityStyle

(none)

Specifies the app’s white point adaptivity style, for use on devices with True Tone displays. See UIWhitePointAdaptivityStyle for details.

iOS 9.3 and later

CoreSpotlightContinuation

CoreSpotlightContinuation (Boolean - iOS) To declare that your app supports Spotlight query continuation, add this key to your app’s Info.plist file with a value of YES.

When continuing a query from Spotlight, the system calls the following two app delegate methods in sequence:

  1. The system first calls the application:willContinueUserActivityWithType: method, passing a CSQueryContinuationActionType constant to the userActivityType parameter.

  2. Next, the system calls the application:continueUserActivity:restorationHandler: method, passing an NSUserActivity object to the userActivity parameter.

    The userInfo dictionary (of the NSUserActivity object) has a key-value pair in which the key is a CSSearchQueryString constant and the value is the string the app should use when performing its query

This key is supported in iOS 10.0 and later.

INAlternativeAppNames

INAlternativeAppNames (Array - iOS) Specifies the alternative names by which users may refer to the app in Siri. Use this key to specify common synonyms by which users refer to your app. (To learn more about how to do this, see Specifying Synonyms for Your App Name.) The value of this key is an array of no more than three dictionaries, each of which contains contains the following keys:

Siri recognizes alternative app names only for apps that include an Intents app extension with support for one or more intents. Apps must not use this key to divert Siri requests from other apps on the system. It is a programmer error to include more than three entries (per localized version of your Info.plist file) in the array for this key.

This key is supported in iOS 11.0 and later.

MKDirectionsApplicationSupportedModes

MKDirectionsApplicationSupportedModes (Array - iOS) Specifies the modes of transportation for which the app is capable of giving directions. The array contains one or more strings, each of which indicates a supported mode. Apps may include the following strings in this array:

If this key is in your app’s Info.plist file, you must upload a GeoJSON file to App Store Connect that indicates the regions for which your app is capable of providing directions. For more information about specifying this file, see Location and Maps Programming Guide.

This key is supported in iOS 6.0 and later.

UIAppFonts

UIAppFonts (Array - iOS) Specifies any app-provided fonts that should be made available through the normal mechanisms. Each item in the array is a string containing the name of a font file (including filename extension) that is located in the app’s bundle. The system loads the specified fonts and makes them available for use by the app when that app is run.

This key is supported in iOS 3.2 and later.

UIApplicationExitsOnSuspend

UIApplicationExitsOnSuspend (Boolean - iOS) Specifies that the app should be terminated rather than moved to the background when it is quit. Apps linked against iOS SDK 4.0 or later can include this key and set its value to YES to prevent being automatically opted-in to background execution and app suspension. When the value of this key is YES, the app is terminated and purged from memory instead of moved to the background. If this key is not present, or is set to NO, the app moves to the background as usual.

This key is supported in iOS 4.0 and later.

UIApplicationShortcutItems

UIApplicationShortcutItems (Array - iOS) Specifies the static Home screen quick actions for the app. This key contains an array of dictionaries. Each dictionary contains detailed information about a single quick action and how it is used.

You can specify static quick actions for your app as an array of dictionaries. The number of quick actions shown for your app on the Home screen, when the user presses your Home screen icon on a device that supports 3D Touch, is determined by the system.

The static quick actions you define in your Info.plist file are shown on the Home screen in the same order they appear in the file. The system populates the set of Home screen quick actions first with your static quick actions, and only if there are additional slots available does it also show your defined dynamic quick actions. For more information on dynamic quick actions, see Adopting 3D Touch on iPhone.

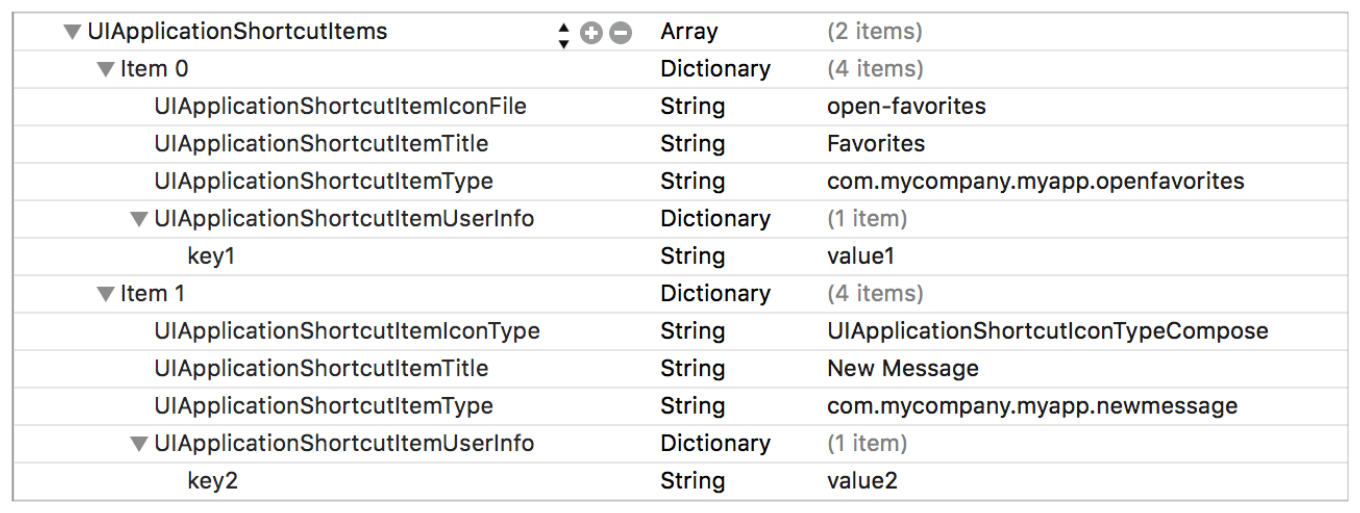

The following screenshot shows an example definition of two static quick actions in the Xcode property list editor:

../Art/UIApplicationShortcutItems_plist_editor.shot/Resources/shot_2x.png../Art/UIApplicationShortcutItems_plist_editor.shot/Resources/shot_2x.png

The following code listing shows the example definition as they appear in the corresponding property list file:

<key>UIApplicationShortcutItems</key>
    <array>
        <dict>
            <key>UIApplicationShortcutItemIconFile</key>
            <string>open-favorites</string>
            <key>UIApplicationShortcutItemTitle</key>
            <string>Favorites</string>
            <key>UIApplicationShortcutItemType</key>
            <string>com.mycompany.myapp.openfavorites</string>
            <key>UIApplicationShortcutItemUserInfo</key>
            <dict>
                <key>key1</key>
                <string>value1</string>
            </dict>
        </dict>
        <dict>
            <key>UIApplicationShortcutItemIconType</key>
            <string>UIApplicationShortcutIconTypeCompose</string>
            <key>UIApplicationShortcutItemTitle</key>
            <string>New Message</string>
            <key>UIApplicationShortcutItemType</key>
            <string>com.mycompany.myapp.newmessage</string>
            <key>UIApplicationShortcutItemUserInfo</key>
            <dict>
                <key>key2</key>
                <string>value2</string>
            </dict>
        </dict>
    </array>

When a user chooses one of your Home screen quick actions, the system launches or resumes your app and UIKit calls the application:performActionForShortcutItem:completionHandler: method in your app delegate. Be sure to read the description of that method in UIApplicationDelegate Protocol Reference for information on how to ensure the method is called only when it should be.

To retrieve the attributes of a received quick action, use the UIApplicationLaunchOptionsShortcutItemKey launch option key, described in UIApplicationDelegate Protocol Reference. The value of this key is a UIApplicationShortcutItem object. The attributes of the received quick action are available in the object properties.

Table 2 lists the keys that can be included in each dictionary of the array.

Table 2  Keys for Home screen quick actions, also known as shortcut items

Key

Description

UIApplicationShortcutItemType (required)

A required string delivered to your app when the user invokes the corresponding quick action. Your app can use this string to classify quick actions into types, and then to disambiguate among action types it receives. You don’t need to register your quick action types.

UIApplicationShortcutItemTitle (required)

A string displayed to the user on the Home screen as the name of the quick action.

If the title fits on one line, the system displays it as a single line quick action item. If the title is too long for one line and you have not specified a UIApplicationShortcutItemSubtitle string, the system displays the title on two lines.

You can, optionally, internationalize a quick action title by employing your app’s InfoPlist.strings file. For guidance on how to do this, read Localizing Property List Values.

UIApplicationShortcutItemSubtitle

An optional string that is displayed to the user on the Home screen, immediately below the corresponding title string.

If you specify a subtitle for a quick action, the system displays the quick action title on a single line (perhaps just a portion of the title, followed by ellipsis character), no matter how long the title is.

You can, optionally, internationalize a quick action subtitle by employing your app’s InfoPlist.strings file. For guidance on how to do this, read Localizing Property List Values.

UIApplicationShortcutItemIconType

An optional string specifying the type of an icon from the system-provided library; see the UIApplicationShortcutIconType enumeration in UIApplicationShortcutIcon Class Reference. The icon is displayed in the set of quick actions for your app, along with the quick action's title, on the Home screen.

UIApplicationShortcutItemIconFile

An optional string specifying an icon image to use from the app’s bundle, or the name of an image in an asset catalog. The icon is displayed before quick action title on the Home screen.

Icons should be square, single color, and 35x35 points, as shown in these template files and as described in iOS Human Interface Guidelines.

If you specify this key, the system ignores the UIApplicationShortcutItemIconType key.

UIApplicationShortcutItemUserInfo

An optional, app-defined dictionary. One use for this dictionary is to provide app version information, as described in the “App Launch and App Update Considerations for Quick Actions” section of the overview in UIApplicationShortcutItem Class Reference.

This key is supported in iOS 9.0 and later for devices that support 3D Touch.

UIApplicationShortcutWidget

UIApplicationShortcutWidget (String - iOS) Specifies the bundle ID of the widget to be available as a Home screen quick action, for apps that have more than one widget.

Home screen quick actions, in iOS 10.0 and later, include up to one quick action to provides fast user access to an app’s contained widget app extension. If you provide more than one widget with your app, employ this key to identify which widget should be available on the Home screen.

This key is supported in iOS 10.0 and later.

UIAppSupportsHDR

UIAppSupportsHDR (Boolean - tvOS) Specifies whether the app supports HDR mode on Apple TV 4K. If the key's value is NO and Apple TV 4K is in HDR mode, Apple TV switches to SDR mode before launching the app, and it switches back to HDR mode when the app resigns. If the key is not present or its value is YES, the device remains in HDR mode when the app launches.

HDR mode on Apple TV 4K uses the GPU to compose the content that appears on the screen. GPU bound apps, such as games, can access more of the GPU by opting out of HDR support, that is, setting UIAppSupportsHDR to NO. However, switching between HDR and SDR modes may cause color flashing to appear on the screen. Apps should only opt out when absolutely necessary.

This key is supported in tvOS 11.2 and later.

UIBackgroundModes

UIBackgroundModes (Array - iOS, watchOS) Specifies that the app provides specific background services and must be allowed to continue running while in the background. These keys should be used sparingly and only by apps providing the indicated services. Where alternatives for running in the background exist, those alternatives should be used instead. For example, apps can use the signifiant location change interface to receive location events instead of registering as a background location app.

Table 3 lists the possible string values that you can put into the array associated with this key. You can include any or all of these strings but your app must provide the indicated services.

Table 3  Values for the UIBackgroundModes array

Value

Description

audio

The app plays audible content in the background.

For watchOS 3, including this key allows a workout app, with an active HKWorkoutSession object, to provide audio playback while the app runs in the background.

In watchOS 4 and later, you no longer need the key to play audio in the background. Instead, your app can play audio as long as it has an active workout or location session.

Additionally, all watchOS 4 apps can record audio in the background. You must start recording in the foreground, but recording continues when the app transitions to the background.

location

The app provides location-based information to the user and requires the use of the standard location services (as opposed to the significant change location service) to implement this feature.

For watchOS, this value is supported in watchOS 4.0 and later.

voip

The app provides Voice-over-IP services. Apps with this key are automatically launched after system boot so that the app can reestablish VoIP services. Apps with this key are also allowed to play background audio.

fetch

The app requires new content from the network on a regular basis. When it is convenient to do so, the system launches or resumes the app in the background and gives it a small amount of time to download any new content.

This value is supported in iOS 7.0 and later.

remote-notification

The app uses remote notifications as a signal that there is new content available for download. When a remote notification arrives, the system launches or resumes the app in the background and gives it a small amount of time to download the new content.

This value is supported in iOS 7.0 and later.

newsstand-content

The app processes content that was recently downloaded in the background using the Newsstand Kit framework, so that the content is ready when the user wants it.

This value is supported in iOS 5.0 and later.

external-accessory

The app communicates with an accessory that delivers data at regular intervals.

This value is supported in iOS 5.0 and later.

bluetooth-central

The app uses the CoreBluetooth framework to communicate with a Bluetooth accessory while in the background.

This value is supported in iOS 5.0 and later.

bluetooth-peripheral

The app uses the CoreBluetooth framework to communicate in peripheral mode with a Bluetooth accessory. The system will alert the user to the potential privacy implications of apps with this key set. See Best Practices for Maintaining User Privacy for more information on privacy.

This value is supported in iOS 6.0 and later.

This key is supported in iOS 4.0 and later, and watchOS 4.0 and later.

UIDeviceFamily

UIDeviceFamily (Number or Array - iOS) Specifies the underlying hardware type on which this app is designed to run.

The value of this key is usually an integer but it can also be an array of integers. Table 4 lists the possible integer values you can use and the corresponding devices.

Table 4  Values for the UIDeviceFamily key

Value

Description

1

(Default) The app runs on iPhone and iPod touch devices.

2

The app runs on iPad devices.

This key is supported in iOS 3.2 and later.

UIFileSharingEnabled

UIFileSharingEnabled (Boolean - iOS) Specifies whether the app shares files through iTunes. If this key is YES, the app shares files. If it is not present or is NO, the app does not share files. Apps must put any files they want to share with the user in their <Application_Home>/Documents directory, where <Application_Home> is the path to the app’s home directory.

In iTunes, the user can access an app’s shared files from the File Sharing section of the Apps tab for the selected device. From this tab, users can add and remove files from the directory.

In iOS 11 and later, if both this key and the LSSupportsOpeningDocumentsInPlace key are YES, the local file provider grants access to all the documents in the app’s Documents directory. These documents appear in the Files app, and in a Document Browser. Users can open and edit these document in place.

This key is supported in iOS 3.2 and later.

UIInterfaceOrientation

UIInterfaceOrientation (String - iOS) Specifies the initial orientation of the app’s user interface. This key is ignored if the UISupportedInterfaceOrientations key is present.

This value is based on the UIInterfaceOrientation constants declared in the UIApplication.h header file. The default style is UIInterfaceOrientationPortrait.

UILaunchImageFile

UILaunchImageFile (String - iOS) Specifies the name of the launch image file for the app on older versions of iOS. If this key and the UILaunchImages key are both present, the app uses the UILaunchImages key. If neither key is present, the system looks for a launch image file with the name Default.png.

This key is supported in iOS 3.2 and later.

Naming Your Launch Image Files

The name of each launch image conveys its purpose and how it is used. It is recommended that you use the following format for launch image filenames:


The <basename> portion of the filename is the string that you specify using the UILaunchImageFile key. (If you do not specify the key, iOS uses the string Default for the launch image name.) To the base name, you can add several different types of modifiers:

  • High-resolution image modifier—Use the @2x modifier to identify images that are intended for Retina displays.

  • Platform-specific modifiers—Use the modifiers ~iphone or ~ipad to specify images targeting a specific size of device.

  • Orientation-specific modifiers—Use the strings -Landscape, -Portrait, -LandscapeLeft, -LandscapeRight, or -PortraitUpsideDown to specify launch images when the device is in a specific orientation. More specific orientation modifiers take precedence over less-specific orientation modifiers. For example, an image with the -LandscapeLeft modifier takes precedence over an image with the -Landscape modifier when the device is in the correct orientation.

  • iPhone 5 modifier—Use the string -568h to specify a launch image intended for devices whose screen is 568 points high. Because such devices also have Retina displays, you should also include the @2x modifier in the image name.

  • URL scheme modifiers—Include the name of your app’s custom URL scheme in launch image names if you want those launch images displayed when your app is launched to open a URL of the specified type. The format of a scheme modifier is -<url_scheme> where <url_scheme> is your custom scheme name. For example, if your app opens URLs of the form myscheme://example.com, you would include -myscheme in your launch image names.

UILaunchImages

UILaunchImages (Array - iOS) Explicitly specifies the launch images to use for the app. This key contains an array of dictionaries. Each dictionary contains detailed information about a single launch image and how it is used. Xcode fills in the value of each dictionary based on information you provide in your project settings.

Table 5 lists the keys that can be included in each dictionary of the array.

Table 5  Keys for launch image dictionaries

Key

Description

UILaunchImageName (required)

A string containing the name of the PNG image file. The image file must reside at the top level of the app bundle. The name you specify for this key should not include a filename extension, nor should it include modifiers such as @2x, -568h, ~iphone, or ~ipad.

On disk, your image filenames may still include the @2x, -568h, ~iphone, or ~ipad modifiers as appropriate, although they are not required. The system automatically considers such modifiers when choosing which file to load.

UILaunchImageMinimumOSVersion (required)

A string representing the minimum iOS version number for which the image is intended. The form of the version number is the same as for the LSMinimumSystemVersion key, which is a string of the form n.n.n where n is a number. For example, images targeting iOS 7 and later should specify a string “7.0”.

UILaunchImageSize

A string containing the width and height of the image. This string represents the size of the display for which the image is intended. You must specify the width and height with respect to the device in a portrait orientation. In other words, portrait and landscape images targeting the same device would have the same width and height.

The format of this string is {width, height} where width and height are the size of the image in points. (The format of this string is the same as that generated by the NSStringFromCGSize function.) For example, the string {320, 480} specifies an image that can be used on an iPhone 4 or iPhone 4S.

If you do not specify this key, the image size is assumed to be {320, 480}.

UILaunchImageOrientation

A string containing the orientation of the image. The value of this key is one of the following values:

  • Portrait

  • PortraitUpsideDown

  • Landscape

  • LandscapeLeft

  • LandscapeRight

If you do not specify a value for this key, the orientation is assumed to be Portrait.

If this key is present, iOS 7 uses it exclusively to obtain launch images. The system does not fall back to the older naming conventions used prior to iOS 7.

This key is supported in iOS 7.0 and later.

UILaunchStoryboardName

UILaunchStoryboardName (String - iOS) Specifies the filename of the storyboard from which to generate your app’s launch image. (If you want to use multiple storyboards to generate different launch images, use UILaunchStoryboards.)

This key is supported in iOS 9 and later.

UILaunchStoryboards

UILaunchStoryboards (Dictionary - iOS) Specifies information about the storyboards from which to generate launch images for your app. Use this key to support multiple launch storyboards—for example, to support opening your app through various URL schemes. If you don’t need more than one launch storyboard, you can continue to use UILaunchStoryboardName instead.

This key is a dictionary that takes the following keys:

Key

Description

UILaunchStoryboardDefinitions

A dictionary that identifies launch storyboards. Valid keys for this dictionary are:

  • UILaunchStoryboardIdentifier—A string that contains the name you use in your code to identify a specific launch storyboard

  • UILaunchStoryboardFile— A string that contains the filename that identifies a specific launch storyboard in your app’s bundle (the extension is not required).

UIDefaultLaunchStoryboard

A string that specifies the identifier (not the filename) of one of the storyboard files listed in the UILaunchStoryboardDefinitions dictionary to use as the default launch interface for your app.

UIURLToLaunchStoryboardAssociations

A dictionary containing keys that identify URL schemes corresponding to the values of the CFBundleURLSchemes key in the CFBundleURLTypes array. The values should be the identifiers of storyboards in the UILaunchStoryboardDefinitions dictionary.

This key is supported in iOS 9 and later.

UIMainStoryboardFile

UIMainStoryboardFile (String - iOS) Contains a string with the name of the app’s main storyboard file (minus the .storyboard extension). A storyboard file is an Interface Builder archive containing the app’s view controllers, the connections between those view controllers and their immediate views, and the segues between view controllers. When this key is present, the main storyboard file is loaded automatically at launch time and its initial view controller installed in the app’s window.

This key is mutually exclusive with the NSMainNibFile key. You should include one of the keys in your Info.plist file but not both. This key is supported in iOS 5.0 and later.

UINewsstandApp

UINewsstandApp (Boolean - iOS) Specifies the whether the app presents its content in Newsstand. Publishers of newspaper and magazine content use the Newsstand Kit framework to handle the downloading of new issues. However, instead of those apps showing up on the user’s Home screen, they are collected and presented through Newsstand. This key identifies the apps that should be presented that way.

Such apps must also provide default Newsstand icons as described in Contents of the UINewsstandIcon Dictionary.

This key is supported in iOS 5.0 and later.

UIPrerenderedIcon

UIPrerenderedIcon (Boolean - iOS) Specifies whether the app’s icon already contains a shine effect. If the icon already has this effect, you should set this key to YES to prevent the system from adding the same effect again. All icons automatically receive a rounded bezel regardless of the value of this key.

Value

Description

YES

iOS does not apply a shine effect to the app icon.

NO

(Default) iOS applies a shine effect to the app icon.

UIRequiredDeviceCapabilities

UIRequiredDeviceCapabilities (Array or Dictionary - iOS) lets iTunes and the App Store know which device-related features an app requires in order to run. iTunes and the mobile App Store use this list to prevent customers from installing apps on a device that does not support the listed capabilities.

If you use an array, the presence of a given key indicates the corresponding feature is required. If you use a dictionary, you must specify a Boolean value for each key. If the value of this key is YES, the feature is required. If the value of the key is false, the feature must not be present on the device. In both cases, omitting a key indicates that the feature is not required but that the app is able to run if the feature is present.

Table 6 lists the keys that you can include in the array or dictionary associated with the UIRequiredDeviceCapabilities key. You should include keys only for the features that your app absolutely requires. If your app can accommodate missing features by avoiding the code paths that use those features, do not include the corresponding key.

Table 6  Dictionary keys for the UIRequiredDeviceCapabilities key

Key

Description

Minimum iOS Required

accelerometer

Include this key if your app requires (or specifically prohibits) the presence of accelerometers on the device. Apps use the Core Motion framework to receive accelerometer events. You do not need to include this key if your app detects only device orientation changes.

iOS 3.0

arkit

Include this key if your app requires support for ARKit on the device (that is, an iOS device with an A9 or later processor).

iOS 11.0

armv7

Include this key if your app is compiled only for the armv7 instruction set, or if it’s a 32/64-bit universal app.

iOS 3.1

arm64

Include this key if your app or embedded bundle (i.e. extension, framework) is compiled only for the arm64 instruction set. Include this key for all 64-bit apps and embedded bundles.

iOS 9.0

auto-focus-camera

Include this key if your app requires (or specifically prohibits) autofocus capabilities in the device’s still camera. Although most developers should not need to include this key, you might include it if your app supports macro photography or requires sharper images in order to perform some sort of image processing.

iOS 3.0

bluetooth-le

Include this key if your app requires (or specifically prohibits) the presence of Bluetooth low-energy hardware on the device.

iOS 5.0

camera-flash

Include this key if your app requires (or specifically prohibits) the presence of a camera flash for taking pictures or shooting video. Apps use the UIImagePickerController interface to control the enabling of this feature.

iOS 3.0

front-facing-camera

Include this key if your app requires (or specifically prohibits) the presence of a forward-facing camera. Apps use the UIImagePickerController interface to capture video from the device’s camera.

iOS 3.0

gamekit

Include this key if your app requires (or specifically prohibits) Game Center.

iOS 4.1

gps

Include this key if your app requires (or specifically prohibits) the presence of GPS (or AGPS) hardware when tracking locations. (You should include this key only if you need the higher accuracy offered by GPS hardware.) If you include this key, you should also include the location-services key. You should require GPS only if your app needs location data more accurate than the cellular or Wi-fi radios might otherwise provide.

iOS 3.0

gyroscope

Include this key if your app requires (or specifically prohibits) the presence of a gyroscope on the device. Apps use the Core Motion framework to retrieve information from gyroscope hardware.

iOS 3.0

healthkit

Include this key if your app requires (or specifically prohibits) HealthKit.

iOS 8.0

location-services

Include this key if your app requires (or specifically prohibits) the ability to retrieve the device’s current location using the Core Location framework. (This key refers to the general location services feature. If you specifically need GPS-level accuracy, you should also include the gps key.)

iOS 3.0

magnetometer

Include this key if your app requires (or specifically prohibits) the presence of magnetometer hardware. Apps use this hardware to receive heading-related events through the Core Location framework.

iOS 3.0

metal

Include this key if your app requires (or specifically prohibits) Metal.

iOS 8.0

microphone

Include this key if your app uses the built-in microphone or supports accessories that provide a microphone.

iOS 3.0

nfc

Include this key if your app requires (or specifically prohibits) access to detect Near Field Communication (NFC) tags and reads messages that contain NFC Data Exchange Format data. Apps use the Core NFC framework to detect and read NFC tags.

iOS 11.0

opengles-1

Include this key if your app requires (or specifically prohibits) the presence of the OpenGL ES 1.1 interfaces.

iOS 3.0

opengles-2

Include this key if your app requires (or specifically prohibits) the presence of the OpenGL ES 2.0 interfaces.

iOS 3.0

opengles-3

Include this key if your app requires (or specifically prohibits) the presence of the OpenGL ES 3.0 interfaces.

iOS 7.0

peer-peer

Include this key if your app requires (or specifically prohibits) peer-to-peer connectivity over a Bluetooth network.

iOS 3.1

sms

Include this key if your app requires (or specifically prohibits) the presence of the Messages app. You might require this feature if your app opens URLs with the sms scheme.

iOS 3.0

still-camera

Include this key if your app requires (or specifically prohibits) the presence of a camera on the device. Apps use the UIImagePickerController interface to capture images from the device’s still camera.

iOS 3.0

telephony

Include this key if your app requires (or specifically prohibits) the presence of the Phone app. You might require this feature if your app opens URLs with the tel scheme.

iOS 3.0

video-camera

Include this key if your app requires (or specifically prohibits) the presence of a camera with video capabilities on the device. Apps use the UIImagePickerController interface to capture video from the device’s camera.

iOS 3.0

wifi

Include this key if your app requires (or specifically prohibits) access to the networking features of the device.

iOS 3.0

This key is supported in iOS 3.0 and later.

UIRequiresPersistentWiFi

UIRequiresPersistentWiFi (Boolean - iOS) Specifies whether the app requires a Wi-Fi connection. iOS maintains the active Wi-Fi connection open while the app is running.

Value

Description

YES

iOS opens a Wi-Fi connection when this app is launched and keeps it open while the app is running. Use with Wi-Fi–based apps.

NO

(Default) iOS closes the active Wi-Fi connection after 30 minutes.

UIStatusBarHidden

UIStatusBarHidden (Boolean - iOS) Specifies whether the status bar is initially hidden when the app launches.

Value

Description

YES

Hides the status bar.

NO

Shows the status bar.

UIStatusBarStyle

UIStatusBarStyle (String - iOS) Specifies the style of the status bar as the app launches.

This value is based on the UIStatusBarStyle constants declared in UIApplication.h header file. The default style is UIStatusBarStyleDefault.

UISupportedExternalAccessoryProtocols

UISupportedExternalAccessoryProtocols (Array - iOS) Specifies the protocols that your app supports and can use to communicate with external accessory hardware. Each item in the array is a string listing the name of a supported communications protocol. Your app can include any number of protocols in this list and the protocols can be in any order. The system does not use this list to determine which protocol your app should choose; it uses it only to determine if your app is capable of communicating with the accessory. It is up to your code to choose an appropriate communications protocol when it begins talking to the accessory.

This key is supported in iOS 3.0 and later. For more information about communicating with external accessories, see External Accessory Programming Topics.

UISupportedInterfaceOrientations

UISupportedInterfaceOrientations (Array - iOS) Specifies the interface orientations your app supports. The system uses this information (along with the current device orientation) to choose the initial orientation in which to launch your app. The value for this key is an array of strings.

When updating an app to be universal, ensure the Info.plist file contains this key as well as the iPad variant of this key, UISupportedInterfaceOrientations~ipad. To learn about Info.plist key variants, read Creating Platform- and Device-Specific Keys. To learn about how to configure this key to support iOS 9 multitasking enhancements on iPad, read Slide Over & Split View Quick Start in Adopting Multitasking Enhancements on iPad.

Table 7 lists the possible string values you can include in the array.

Table 7  Supported orientations

Value

Description

UIInterfaceOrientationPortrait

The device is in portrait mode, with the device held upright and the Home button at the bottom. If you do not specify any orientations, this orientation is assumed by default.

UIInterfaceOrientationPortraitUpsideDown

The device is in portrait mode but upside down, with the device held upright and the Home button at the top. This mode is not supported on iPhone X.

UIInterfaceOrientationLandscapeLeft

The device is in landscape mode, with the device held upright and the Home button on the left side.

UIInterfaceOrientationLandscapeRight

The device is in landscape mode, with the device held upright and the Home button on the right side.

This key is supported in iOS 3.2 and later.

UISupportsDocumentBrowser

UISupportsDocumentBrowser (Boolean - iOS) Specifies that the app is a document-based app and uses the UIDocumentBrowserViewController class.

If this key is set to YES, the user can set the document browser’s default save location in Settings. Additionally, the local file provider grants access to all the documents in the app’s Documents directory. These documents appear in the Files app, and in a Document Browser. Users can open and edit these document in place.

This key is supported in iOS 11 and later.

UIUserInterfaceStyle

UIUserInterfaceStyle (String - tvOS) Optionally specifies whether the user interface for a tvOS app respects the systemwide, user-configured light or dark appearance, or ignores the user setting and always employs one appearance or the other. If you do not specify a value for this key, your app employs the UIUserInterfaceStyleLight trait, resulting in the light appearance.

The UIUserInterfaceStyle key pertains to the running app’s user interface; tvOS app icons do not employ user interface appearance variants. Human interface considerations for this key are described in “Color” in tvOS Human Interface Guidelines.

This key is supported in tvOS 10.0 and later. Other platforms ignore this key.

Table 8 lists the possible string values you can specify for the UIUserInterfaceStyle key, and describes how these options interact with the user’s system setting for dark appearance in tvOS.

Table 8  User interface appearance settings and behavior

Value of key

User’s dark appearance setting

Trait used for app UI

Description

"Automatic"

Off

UIUserInterfaceStyleLight

Respects the systemwide setting; uses light appearance

"Automatic"

On

UIUserInterfaceStyleDark

Respects the systemwide setting; uses dark appearance

"Light"

(ignored)

UIUserInterfaceStyleLight

Always uses light appearance

"Dark"

(ignored)

UIUserInterfaceStyleDark

Always uses dark appearance

(key not present in Info.plist file, or incorrect value)

(ignored)

UIUserInterfaceStyleLight

Always uses light appearance

UIURLToLaunchStoryboardAssociations

UIViewControllerBasedStatusBarAppearance

UIViewControllerBasedStatusBarAppearance (Boolean - iOS) Specifies whether the status bar appearance is based on the style preferred by the view controller that is currently under the status bar. When this key is not present or its value is set to YES, the view controller determines the status bar style. When the key is set to NO, view controllers (or the app) must each set the status bar style explicitly using the UIApplication object.

This key is supported in iOS 7.0 and later.

UIViewEdgeAntialiasing

UIViewEdgeAntialiasing (Boolean - iOS) Specifies whether Core Animation layers use antialiasing when drawing a layer that is not aligned to pixel boundaries.

Value

Description

YES

Use antialiasing when drawing a layer that is not aligned to pixel boundaries. This option allows for more sophisticated rendering in the simulator but can have a noticeable impact on performance.

NO

(Default) Do not use antialiasing.

This key is supported in iOS 3.0 and later.

UIViewGroupOpacity

UIViewGroupOpacity (Boolean - iOS) Specifies whether Core Animation sublayers inherit the opacity of their superlayer.

Value

Description

YES

(Default on iOS 7 and later) Inherit the opacity of the superlayer. This option allows for more sophisticated rendering in the simulator but can have a noticeable impact on performance.

NO

(Default on iOS 6 and earlier) Do not inherit the opacity of the superlayer.

This key is supported in iOS 3.0 and later.

UIWhitePointAdaptivityStyle

UIWhitePointAdaptivityStyle (String - iOS) Specifies the app’s white point adaptivity style, enabled on devices with True Tone displays.

If your app’s use of the screen is at odds with the standard color shift provided by True Tone, employ this key to describe your app’s primary visual content. For example:

In Split View and in Slide Over, the entire screen employs the white point adaptivity style of the app with the weaker adaptivity style. For example, with a photo editing app (UIWhitePointAdaptivityStylePhoto) and a reading app (UIWhitePointAdaptivityStyleReading) both onscreen, the entire screen employs the UIWhitePointAdaptivityStylePhoto style.

Value

Description

UIWhitePointAdaptivityStyleStandard

Default value. Standard white-point adaptivity.

UIWhitePointAdaptivityStyleReading

For reading-focused apps (stronger adaptivity than provided with the UIWhitePointAdaptivityStyleStandard option)

UIWhitePointAdaptivityStylePhoto

For photography-focused apps (weaker adaptivity than provided with the UIWhitePointAdaptivityStyleStandard option)

UIWhitePointAdaptivityStyleVideo

For video-focused apps (weaker adaptivity than provided with the UIWhitePointAdaptivityStyleStandard option)

UIWhitePointAdaptivityStyleGame

For games (weaker adaptivity than provided with the UIWhitePointAdaptivityStyleStandard option)

This key is supported in iOS 9.3 and later.
