Tuning Performance On the GPU

GPUs and CPUs have fundamentally different architectures and so require different optimizations for OpenCL. A CPU has a relatively small number of processing elements and a large amount of memory (both a large cache and a much larger amount of RAM available on the circuit board). A GPU has a relatively large number of processing elements and usually has less memory than a CPU. Therefore, the code that runs fastest on a GPU will be designed to take up less memory and take advantage of the GPU’s superior processing power. In addition, GPU memory access is fast when the access pattern matches the memory architecture, so the code should be designed with this in mind.

It is possible to write OpenCL code that can run efficiently on both a CPU and a GPU. However, to obtain optimal performance it is usually necessary to write different code for each type of device.

This chapter focuses on how to improve performance on the GPU. It begins by describing the significant performance improvements on the GPU that can be obtained through tuning (see Why You Should Tune), lists APIs you can use to time code execution (see Measuring Performance On Devices), describes how you can estimate the optimal performance of your GPU devices (see Generating the Compute/Memory Access Peak Benchmark), describes a protocol that can be followed to tune GPU performance (see Tuning Procedure), then steps through an example in which performance improvement is obtained. (See Improving Performance On the CPU for suggestions for optimizing performance on the CPU.)See Table 14-1 at the end of the chapter for generally applicable suggestions for measuring and improving performance on most GPUs.

Why You Should Tune

Tuning your OpenCL code for the GPU can result in a two- to ten-fold improvement in performance. Figure 14-1 illustrates typical improvements in processing speed obtained when an application that executes a Gaussian blur on a 16 MP image was optimized. The process followed to optimize this code is described in Example: Tuning Performance Of a Gaussian Blur.

Figure 14-1  Improvement expected

Before Optimizing Code

Before you decide to optimize code:

  1. Decide whether the code really needs to be optimized. Optimization can take significant time and effort. Weigh the costs and benefits of optimization before starting any optimization effort.

  2. Estimate optimal performance. Run some simple kernels on your GPU device to estimate its capabilities. You can use the techniques described in Measuring Performance On Devices to measure how long kernel code takes to run. See Generating the Compute/Memory Access Peak Benchmark for examples of code you can use to test memory access speed and processing speed.

  3. Generate or collect sample data to feed through each iteration of optimization. Run the unoptimized original code through the sample code and save the results. Then run each major iteration of the optimized code against the same data and compare the results to the original results to ensure your output has not been corrupted by the changed code.

Measuring Performance On Devices

The point of optimizing an OpenCL application is to get it to run faster. At each step of the optimization process, you need to know how fast the optimized code takes to run. To determine how much time it takes a kernel to execute:

Measuring the execution time of several consecutive calls to the same kernel(s) usually improves the reliability of results. Because “warming-up” the device also improves consistency of benchmarking results, it’s recommended that you call the code that enqueues the kernel at least once before you begin timing. Listing 14-1 stores performance information about a kernel that it enqueues. Notice how the loop index starts at -2 but the timer is started when the index has been incremented to 0. :

Listing 14-1  Sample benchmarking loop on the kernel

const int iter = 10; // number of iterations to benchmark
cl_timer blockTimer;
for (int it = -2; it < iter; it++) { // Negative values not timed: warm-up
  if (it == 0) {                     // start timing
    blockTimer = gcl_start_timer(void);
  }
  <code to benchmark>
}
clFinish(queue);
gcl_stop_timer(blockTimer);

// t = execution time for one iteration (s)
double t = blockTimer / (double)iter;

Generating the Compute/Memory Access Peak Benchmark

Before you optimize your code, you need to estimate how fast your particular GPU device is when accessing memory and when executing floating point operations. You can use two simple kernels to benchmark these capabilities:

The MAD benchmark shows the compute/memory ratio in the case of a single sequence of dependent operations. Compute kernels can reach much higher compute/memory ratios when they execute several independent dependence chains. For example, a matrix * matrix multiply kernel can process nearly 2 Tflop/s on the same GPU.

As shown in Figure 14-3, when we added three floating point operations to the copy kernel code (the top (red) line), we were still able to process 11.9 GP/s. This indicates that with only three flops, processing remains memory-bound.

Figure 14-3  MAD/copy kernel performance with 3 flops

Figure 14-4 shows that when we added six floating point operations to the copy kernel code (the top (red) line), we are still able to process 11.8 GP/s. This indicates that with six flops, processing is still memory-bound.

Figure 14-4  MAD/copy kernel performance with 6 flops

Figure 14-5 shows that after we added 24 floating point operations to the copy kernel code (the red line), processing slowed to 10.1 GP/s. Because the reduction of processing speed is large enough to be considered significant, this result indicates that this kernel is a good benchmark for computational processing for this GPU.

Figure 14-5  MAD/copy kernel performance with 24 flops

Tuning Procedure

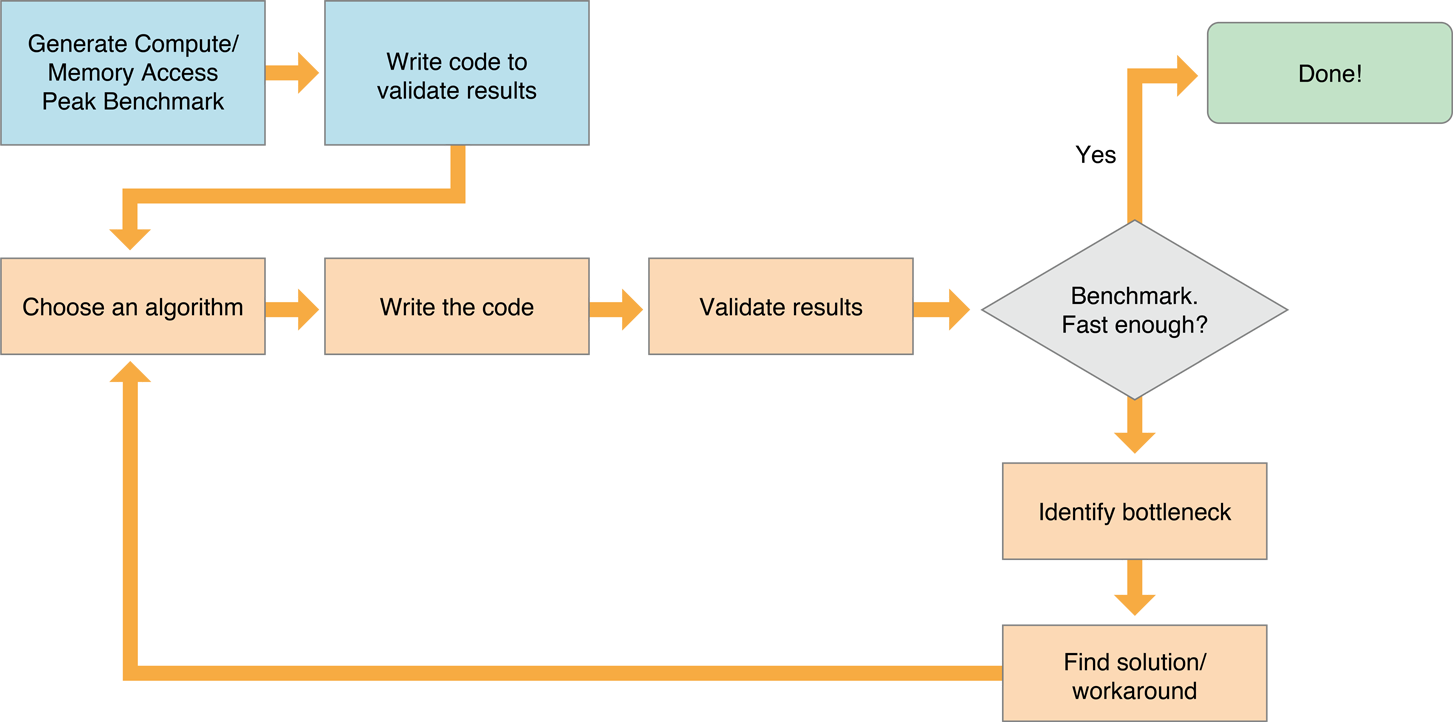

Figure 14-6 shows a typical process for optimizing a kernel that runs efficiently on the GPU:

Figure 14-6  Tuning procedure

  1. Choose an efficient algorithm. OpenCL runs most efficiently if the algorithm is optimized to take advantage of the capabilities of all devices it runs on. See Choosing An Efficient Algorithm for suggestions about how to evaluate potential algorithms.

  2. Write code that runs efficiently on all target device(s). Each family of GPUs has a unique architecture. To get optimal performance from a GPU, you need to understand that GPU’s architecture. For example, some GPU families perform best when memory access blocks are set to certain sizes, other GPU families work best when the number of items in a workgroup is a multiple of a particular number, and so on. Consult the manufacturer’s literature for any GPU you wish to support to get details about that GPU’s architecture. This document provides only general principles that should apply to most GPUs.

    See Table 14-1 for suggestions.

    It’s usually best to write scalar code first. In the second iteration, parallelize it. Next, create a version that minimizes memory usage.

  3. Make sure to validate the results generated by each code version.

  4. Benchmark. You can use the techniques described in Measuring Performance On Devices to measure the speed of the benchmark code and your application code. If the performance is good enough, you are done.

  5. Identify bottlenecks.

  6. Find a solution or workaround.

  7. Repeat this process until your performance approaches the optimization target.

Choosing An Efficient Algorithm

Consider the following when choosing an algorithm for your OpenCL application:

Example: Tuning Performance Of a Gaussian Blur

The following example steps through the process of optimizing an application that performs a Gaussian blur on an image on a GPU. You can follow a similar protocol when tuning your GPU code.

  1. Estimate optimal performance.

  2. Generate test code. It’s probably easiest to write a reference version of the code on the host, save the result, then write code to compare the verified output to the output generated by your optimized code.

  3. Choose an algorithm to implement our Gaussian blur:

    There are three possibilities:

    • Classic Two-Dimensional Convolution

      Figure 14-7 depicts the creation of a two-dimensional convolution using a 31 x 31 kernel for sigma=5. This translates to 31 times 31, or 961 input pixels for each pixel output. One addition and one multiplication is used for each input for a total of 961+1 I/O or 2 times 961 flops per pixel. These results are shown in the second row of Table 14-1.

      Figure 14-7  Classic two-dimensional convolution
    • Separable Two-Dimensional Convolution

      In this case, the algorithm is separable. It can be divided into two one-dimensional filters-one horizontal and one vertical, as shown in Figure 14-8. By separating the dimensions, you reduce the cost in memory and processing goes down to 64 read/write operations and 124 flops per pixel. These results are shown in the third row of Table 14-1.

      The 1D convolution with a kernel of size 31 that requires reading 31 input values for each output pixel, then performing 1 addition and 1 multiplication for each input. That’s 31 + 1 I/O and 2 times 31 = 62 flops. Double this to get the numbers for the two passes. (This is specific to sigma=5.)

      Figure 14-8  Separable two-dimensional convolution
    • Recursive Gaussian Filter

      This algorithm does not compute the exact Gaussian blur, only a good approximation of it. As shown in Figure 14-9, it requires four passes (two horizontal, two vertical), but reduces processing to 10 read/write operations and 64 flops per pixel. These results are shown in the fourth row of Table 14-1.

      Figure 14-9  Recursive Gaussian filter passes

      ../Art/recursiveGaussianFilterPass2_2x.png

      Figure 14-10  Recursive Gaussian filter

      Table 14-1 compares the compute-to-memory ratio results of the 2D Convolution, Separable Convolution, and Recursive Gaussian iterations. (The top row shows the results of a simple copy.) It looks like Recursive Gaussian algorithm performs best:

      Table 14-1  Comparing algorithms

      Algorithm

      Memory

      (float R+W)

      Compute

      (flops)

      C/M

      Ratio

      Estimate

      (MP/s)

      Copy

      2

      0

      0

      14,200

      2D Convolution

      962

      1,922

      2

      30

      Separable Convolution

      64

      124

      2

      443

      Recursive Gaussian

      10

      64

      6

      2,840

      The first column depicts the number of memory accesses per pixel. The second column depicts the number of flops per pixel. The third column depicts the compute:memory ratio. The last column shows the number of megapixels each algorithm can be expected to process per second; numbers were obtained by taking the ratio of I/O with respect to the copy kernel. The copy kernel processes 14,200 MP/s with 2 I/O per pixel. A kernel with 64 I/O per pixel will be 32 times slower, so it will process 14200/32 = 443 MP/s.

  4. The first version of code that performs the Gaussian blur using the recursive Gaussian algorithm looks like Listing 14-4.



    Listing 14-4  Recursive Gaussian implementation, version 1

    // This is the horizontal pass.
    // One work item per output row
    // Run one of these functions for each row of the image
    // (identified by variable y).
    kernel void rgH(global const float * in,global float * out,int w,int h)
    {
      int y = get_global_id(0); // Row to process
      // Forward pass
      float i1,i2,i3,o1,o2,o3,o4;
      i1 = i2 = i3 = o1 = o2 = o3 = o4 = 0.0f;

      // In each iteration of the loop, read one input value and
      // store one output value.
      for (int x=0;x<w;x++)
      {
        float i0 = in[x+y*w]; // Load
        float o0 = a0*i0 + a1*i1 + a2*i2 + a3*i3
                   - c1*o1 - c2*o2 - c3*o3 - c4*o4; // Compute new output
        out[x+y*w] = o0; // Store
        // Rotate values for next pixel.
        i3 = i2; i2 = i1; i1 = i0;
        o4 = o3; o3 = o2; o2 = o1; o1 = o0;
      }
      // Backward pass
      ...
    }

    // This is the vertical pass.
    // One work item per output column
    // Run one of these functions for each column of the image
    //   (identified by variable x).
    kernel void rgV(global const float * in,global float * out,int w,int h)
    {
      int x = get_global_id(0); // Column to process
      // Forward pass
      float i1,i2,i3,o1,o2,o3,o4;
      i1 = i2 = i3 = o1 = o2 = o3 = o4 = 0.0f;
      for (int y=0;y<h;y++)
      {
        float i0 = in[x+y*w]; // Load
        float o0 = a0*i0 + a1*i1 + a2*i2 + a3*i3
            - c1*o1 - c2*o2 - c3*o3 - c4*o4;
        out[x+y*w] = o0; // Store
        // Rotate values for next pixel
        i3 = i2; i2 = i1; i1 = i0;
        o4 = o3; o3 = o2; o2 = o1; o1 = o0;
      }
      // Backward pass
      ...
    }

    This iteration produces results like those shown in Figure 14-11.

    Figure 14-11  Benchmark of Recursive Gaussian implementation, version 1

    The vertical pass is fast, but the horizontal pass is not:

    ../Art/verticalIsFastEnough_2x.png

    The problem is that inside the GPU we have scheduled about 16 million functions to be called in groups of about 300 work items at the same time, each simultaneously requesting a memory access with a different address. This is an example of a memory access pattern. The GPU hardware is optimized for certain kinds of memory accesses. Other kinds of accesses are conflicting. These will be serialized and will run much slower.

    Specifically, in image processing, when consecutive work items access consecutive pixels in the same row, as in Figure 14-12, processing is very fast:

    Figure 14-12  Consecutive work items accessing consecutive addresses

    However, in cases where memory accesses end up in the same bank, as in Figure 14-13 (in image processing this is where consecutive work items access consecutive pixels in the same column) processing is slow:

    Figure 14-13  Where memory accesses end up in the same bank, processing is slow

    The solution is to transpose the array so that what was horizontal becomes vertical. We can process the transposed image, then transpose the result back into the proper orientation:

    rgV + transpose + rgV + transpose = rgV + rgH

    To transpose, we copy the pixels being transposed:

    Figure 14-14  A transpose is really a copy

    The transpose should be almost as fast as the copy kernel. However, although access to the input buffer is fast, access to the output buffer is slower:

    ../Art/transposeCode_2x.png

    We estimate the performance of the transpose kernel by adding two I/O operations for the transpose for each pass. That comes to 10 + 2 * 2 = 14.

    Table 14-2  Estimated results of transpose kernel

    Algorithm

    Memory

    (float R+W)

    Compute

    (flops)

    C/M

    Ratio

    Estimate

    (MP/s)

    V+T+V+T

    14

    64

    4.6

    2,030

    When we run the code, we see that as the image height gets larger, processing gets slower:

    Figure 14-15  Results of benchmarking the transpose kernel

    To speed this up, we can move the processing to faster memory. Inside the GPU are processing cores (the top boxes in Figure 14-16). Each GPU processing core has Arithmetic Logic Units (ALUs), registers, and local memory. The processing core is connected to the global memory. The global memory is connected to the host. Each layer of memory is about ten times faster than the one below it.

    Figure 14-16  GPU memory hierarchy

    In this iteration, we will move processing to the local memory. We’ll have a work group—a block of work items—loading a small block of the image, storing it in local memory, then when all the work items in the group are finished performing the Gaussian recursion on the pixels in local memory, we move all of them out to the output buffer.

    Figure 14-17  Moving blocks of the image to local memory

    The code to do this looks like Listing 14-5:



    Listing 14-5  Move the work items to local memory then transpose

    kernel void transposeL(global const float * in,
                                   global float * out,
                                   int w,int h)
    {
      local float aux[256];            // Block size is 16x16

      // bx and by are the workgroup coordinates.
      // They are mapped to bx and by blocks in the image.
      int bx = get_group_id(0),        // (bx,by) = input block
          by = get_group_id(1);

      // ix and iy are the pixel coordinates inside the block.
      int ix = get_local_id(0),        // (ix,iy) = pixel in block
          iy = get_local_id(1);
      in += (bx*16)+(by*16)*w;         // Move to origin of in,out blocks
      out += (by*16)+(bx*16)*h;

      // Each work item loads one value to the temporary local memory,
      aux[iy+ix*16] = in[ix+w*iy];     // Read block

      // Wait for all work items.
      // This barrier is needed to make sure all work items in the workgroup
      // have executed the aux[…] = in[…] instruction, and that all values
      // in aux are correct. Then we can proceed with the out[…] = aux[…].
      // This is needed because each work item will set one value of aux
      // and then read another one, which was set by another item.
      // If we don’t synchronize at this point, we may read an aux value that
      // has not yet been set.
      barrier(CLK_LOCAL_MEM_FENCE);     // Synchronize

      // Move the value from the local memory back out to global memory.
      // Because copying to consecutive memory, the writes are fast.
      out[ix+h*iy] = aux[ix+iy*16];    // Write block
    }

    Unfortunately, this change did not make the code run faster.

    Figure 14-18  Results of moving the work to local memory and then transposing.

    The problem is that now we have created another memory access pattern when we copy the results from rows in local memory to columns in output (global) memory.

    Figure 14-19  Memory Access Pattern now occurs on the output side

    To solve this, change the work groups to map pixels to copy diagonally:

    Figure 14-20  Skew block mapping

    To convert the code to skew the input and output copy, just change one line:



    Listing 14-6  Change the code to move diagonally through the image

    kernel void transposeLS(global const float * in,
                                 global float * out,
                                 int w,int h)
    {
      local float aux[256];           // Block size is 16x16
      int bx = get_group_id(0),       // (bx,by) = input block
      by = get_group_id(1);
      int ix = get_local_id(0),       // (ix,iy) = pixel in block
      iy = get_local_id(1);
      // This is the line we changed:
      by = (by+bx)%get_num_groups(1); // Skew mapping

      in += (bx*16)+(by*16)*w; // Move to origin of in,out blocks
      out += (by*16)+(bx*16)*h;
      aux[iy+ix*16] = in[ix+w*iy];    // Read block
      barrier(CLK_LOCAL_MEM_FENCE);   // Synchronize
      out[ix+h*iy] = aux[ix+iy*16];   // Write block
    }

    Benchmarking proves that this version is faster:

    Figure 14-21  Benchmark of the skewed code

    Running the transposed code in local memory does make the Gaussian blur significantly faster:

    Figure 14-22  Benchmark of the transposed, skewed code

    Still, processing is not occuring as quickly as our original speed estimate would indicate. The problem is that because of the sequential nature of the recursive Gaussian loop, we don’t have enough work groups to saturate the GPU. We would need to change the algorithm to increase the parallelism level in order to increase performance to meet our original estimate.

Guidelines For Reducing Overhead On the GPU

Some general principles for improving the efficiency of your OpenCL code running on a GPU:
