Class Cluster

A class cluster is an architecture that groups a number of private concrete subclasses under a public abstract superclass. The abstract superclass declares methods for creating instances of its private subclasses. The superclass dispenses an object of the proper concrete subclass based on the creation method invoked. Each object returned may belong to a different private concrete subclass.

Class clusters in Cocoa can generate only objects whose storage of data can vary depending on circumstances. The Foundation framework has class clusters for NSString, NSData, NSDictionary, NSSet, and NSArray objects. The public superclasses include these immutable classes as well as the complementary mutable classes NSMutableString, NSMutableData, NSMutableDictionary, NSMutableSet, and NSMutableArray.

Protocols

A protocol is a language-level (Objective-C) feature that makes it possible to define interfaces that are instances of the Adapter pattern. A protocol is essentially a series of method declarations unassociated with a class. (In Java, interface is synonymous with protocol.) If you want a client object to communicate with another object, but the objects’ incompatible interfaces make that difficult, you can define a protocol. The class of the other object then formally adopts the protocol and “conforms” to it by implementing one or more of the methods of the protocol. The protocol may require the conforming class to implement some of its methods and may leave the implementation of others optional. The client object can then send messages to the other object through the protocol interface.

Protocols make a set of method declarations independent of the class hierarchy. They make it possible to group objects on the basis of conformance to a protocol as well as class inheritance. The NSObject method conformsToProtocol: permits you to verify an object’s protocol affiliation.

Cocoa has informal protocols as well as formal protocols. An informal protocol is a category on the NSObject class, thus making any object a potential implementer of any method in the category (see Categories). The methods in an informal protocol can be selectively implemented. Informal protocols are part of the implementation of the delegation mechanism in OS X (see Delegation).

Note that the design of protocols does not perfectly match the description of the Adapter pattern. But it achieves the goal of the pattern: allowing classes with otherwise incompatible interfaces to work together.

Responder Chain

The application frameworks include an architecture known as the responder chain. This chain consists of a series of responder objects (that is, objects inheriting from NSResponder or, in UIKit, UIResponder) along which an event (for example, a mouse click) or action message is passed and (usually) eventually handled. If a given responder object doesn’t handle a particular message, it passes the message to the next responder in the chain. The order of responder objects in the chain is generally determined by the view hierarchy, with the progression from lower-level to higher-level responders in the hierarchy, culminating in the window object that manages the view hierarchy, the delegate of the window object, or the global application object. The paths of events and action messages up the responder chain is different. An application can have as many responder chains as it has windows (or even local hierarchies of views); but only one responder chain can be active at a time—the one associated with the currently active window.

The AppKit framework also implements a similar chain of responders for error handling.

The design of the view hierarchy, which is closely related to the responder chain, adapts the Composite pattern (Composite). Action messages—messages originating from control objects—are based on the target-action mechanism, which is an instance of the Command pattern (Command).

Invocation Objects

An instance of the NSInvocation class encapsulates an Objective-C message. An invocation object contains a target object, method selector, and method parameters. You can dynamically change the target of the message dispatched by the invocation object as well as its parameters; once the invocation is executed, you can also obtain the return value from the object. With a single invocation object, you can repeatedly invoke a message with multiple variations in target and parameters.

The creation of an NSInvocation object requires an NSMethodSignature object, which is an object that encapsulates type information related to the parameters and return value of a method. An NSMethodSignature object, in turn, is created from a method selector. The implementation of NSInvocation also makes use of functions of the Objective-C runtime.

The Target-Action Mechanism

The target-action mechanism enables a control object—that is, an object such as a button, slider, or text field—to send a message to another object that can interpret the message and handle it as an application-specific instruction. The receiving object, or the target, is usually a custom controller object. The message—named an action message—is determined by a selector, a unique runtime identifier of a method.

In the AppKit framework, the cell object that a control owns typically encapsulates the target and action. When the user clicks or otherwise activates the control, the control extracts the information from its cell and sends the message. (A menu item also encapsulates target and action, and sends an action message when the user chooses it.) The target-action mechanism can work on the basis of a selector (and not a method signature) because the signature of an action method in AppKit by convention is always the same.

In UIKit, the target-action mechanism does not rely on cells. Instead, a control maps a target and action to one or more multitouch events that can occur on the control.

View Hierarchy

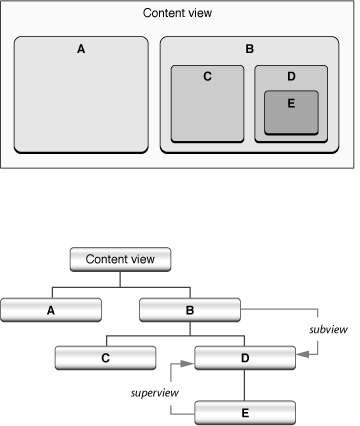

The views (NSView or UIView objects) in a window are internally structured into a view hierarchy. At the root of the hierarchy is a window (NSWindow or UIWindow object) and its content view, a transparent view that fills the window’s content rectangle. Views that are added to the content view become subviews of it, and they become the superviews of any views added to them. Except for the content view, a view has one (and only one) superview and zero or any number of subviews. You perceive this structure as containment: a superview contains its subviews. Figure 4-2 shows the visual and structural aspects of the view hierarchy.

The view hierarchy is a structural architecture that plays a part in both drawing and event handling. A view has two bounding rectangles, its frame and its bounds, that affect how graphics operations with the view take place. The frame is the exterior boundary; it locates the view in its superview’s coordinate system, defines its size, and clips drawing to the view’s edges. The bounds, the interior bounding rectangle, defines the internal coordinate system of the surface where the view draws itself.

When a window is asked by the windowing system to prepare itself for display, superviews are asked to render themselves before their subviews. When you send some messages to a view—for example, a message that requests a view to redraw itself—the message is propagated to subviews. You can thus treat a branch of the view hierarchy as a unified view.

The view hierarchy is also used by the responder chain for handling events and action messages. See the summary of the responder chain in Chain of Responsibility.

General Comments

Decorator is a pattern for object composition, which is something that you are encouraged to do in your own code (see When to Make a Subclass). Cocoa, however, provides some classes and mechanisms of its own (discussed in the following sections) that are based on the pattern. In these implementations, the extending object does not completely duplicate the interface of the object that it wraps, and the implementations use different techniques for interface sharing.

Cocoa uses the Decorator pattern in the implementation of several of its classes, including NSAttributedString, NSScrollView, and UIDatePicker. The latter two classes are examples of compound views, which group together simple objects of other view classes and coordinate their interaction.

Delegation

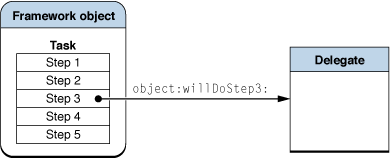

Delegation is a mechanism by which a host object embeds a weak reference (weak in the sense that it’s a simple pointer reference, unretained) to another object—its delegate—and periodically sends messages to the delegate when it requires its input for a task. The host object is generally an “off-the-shelf” framework object (such as an NSWindow or NSXMLParser object) that is seeking to accomplish something, but can only do so in a generic fashion. The delegate, which is almost always an instance of a custom class, acts in coordination with the host object, supplying program-specific behavior at certain points in the task (see Figure 4-3). Thus delegation makes it possible to modify or extend the behavior of another object without the need for subclassing.

Delegation, in the simple sense of one object delegating a task to another object, is a common technique in object-oriented programming. However, Cocoa implements delegation in a unique way. A host class uses a formal protocol or an informal protocol to define an interface that the delegate object may choose to implement. All the methods in the informal protocol are optional, and the formal protocol may declare optional methods, allowing the delegate to implement only some of the methods in the protocol. Before it attempts to send a message to its delegate, the host object determines whether it implements the method (via a respondsToSelector: message) to avoid runtime exceptions. For more on formal and informal protocols, see Protocols.

Some classes in the Cocoa frameworks also send messages to their data sources. A data source is identical in all respects to a delegate, except that the intent is to provide the host object with data to populate a browser, a table view, or similar user-interface view. A data source, unlike a delegate, may also be required to implement some methods of the protocol.

Delegation is not a strict implementation of the Decorator pattern. The host (delegating) object does not wrap an instance of the class it wants to extend; indeed, it’s the other way around, in that the delegate is specializing the behavior of the delegating framework class. There is no sharing of interface either, other than the delegation methods declared by the framework class.

Delegation in Cocoa is also part of the Template Method pattern (Template Method).

Categories

A category is a feature of the Objective-C language that enables you to add methods (interface and implementation) to a class without having to make a subclass. There is no runtime difference—within the scope of your program—between the original methods of the class and the methods added by the category. The methods in the category become part of the class type and are inherited by all the class’s subclasses.

As with delegation, categories are not a strict adaptation of the Decorator pattern, fulfilling the intent but taking a different path to implementing that intent. The behavior added by categories is a compile-time artifact, and is not something dynamically acquired. Moreover, categories do not encapsulate an instance of the class being extended.

NSImage

The NSImage class of the AppKit framework provides a unified interface for loading and using images that can be bitmap-based (such as those in JPEG, PNG, or TIFF format) or vector-based (such as those in EPS or PDF format). NSImage can keep more than one representation of the same image; each representation is a kind of NSImageRep object. NSImage automates the choice of the representation that is appropriate for a particular type of data and for a given display device. It also hides the details of image manipulation and selection so that the client can use many different underlying representations interchangeably.

Enumerators

The NSEnumerator class in the Foundation framework implements the Iterator pattern. The private, concrete subclass of the abstract NSEnumerator class returns enumerator objects that sequentially traverse collections of various types—arrays, sets, dictionaries (values and keys)—returning objects in the collection to clients.

NSDirectoryEnumerator is a distantly related class. Instances of this class recursively enumerate the contents of a directory in the file system.

Controller Classes in the AppKit Framework

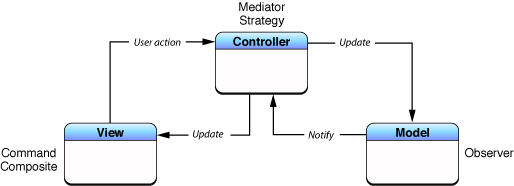

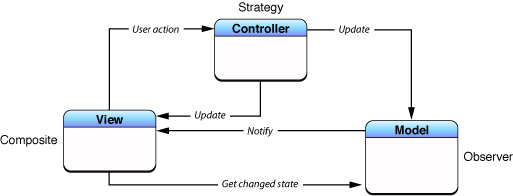

The Model-View-Controller design pattern assigns roles to the objects in an object-oriented system such as an application. They can be model objects, which contain the data of the application and manipulate that data; they can be view objects, which present the data and respond to user actions; or they can be controller objects, which mediate between the model and view objects. Controller objects fit the Mediator pattern.

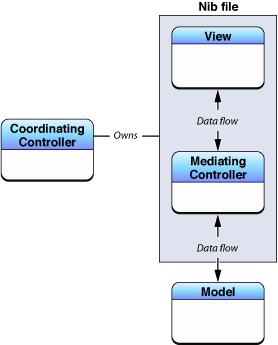

In Cocoa, controller objects can be of two general types: mediating controllers or coordinating controllers. Mediating controllers mediate the flow of data between view objects and model objects in an application. Mediating controllers are typically NSController objects. Coordinating controllers implement the centralized communication and control logic for an application, acting as delegates for framework objects and as targets for action messages. They are typically NSWindowController objects or instances of custom NSObject subclasses. Because they are so highly specialized for a particular program, coordinating controllers tend not to be reusable.

The abstract class NSController and its concrete subclasses in the AppKit framework are part of the Cocoa technology of bindings, which automatically synchronizes the data contained in model objects and displayed and edited in view objects. For example, if a user edits a string in a text field, the bindings technology communicates that change—through a mediating controller—to the appropriate property of the bound model object. All programmers need to do is properly design their model objects and, using Interface Builder, establish bindings between the view, controller, and model objects of a program.

Instances of the concrete public controller classes are available from the Interface Builder library and hence are highly reusable. They provide services such as the management of selections and placeholder values. These objects perform the following specific functions:

• NSObjectController manages a single model object.

• NSArrayController manages an array of model objects and maintains a selection; it also allows you to add objects to and remove objects from the array.

• NSTreeController enables you to add, remove, and manage model objects in a hierarchical tree structure.

• NSUserDefaultsController provides a convenient interface to the preferences (user defaults) system.

View Controllers in UIKit

Applications running in iOS frequently use a modal and navigational user-interface design for presenting screen-size chunks of the application’s data model. An application may have a navigation bar and a toolbar, and between these objects is the current view of application data. Users can tap buttons on the toolbar to select a mode, tap buttons on the navigation bar, and tap controls in the current view to traverse a hierarchy of model (data) objects; at each level the central view presents more detail. At the end of this hierarchy is often an item that the user can inspect or edit. (An application, of course, is free to use just a navigation bar or just a toolbar.)

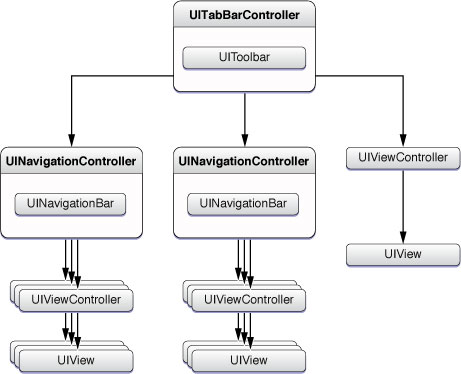

View controllers—that inherit from UIViewController—are central to this design. UIViewController is an abstract class that you can subclass to manage a particular view. The UIKit framework also provides UIViewController subclasses for managing navigation bar and toolbar objects: UINavigationController and UITabBarController. As depicted in Figure 4-4, a tab-bar controller can manage a number of navigation controllers, which in turn can manage one or more view controllers, each with its associated view object. In addition to managing views (including overlay views), a view controller specifies the buttons and titles that are displayed in the navigation bar.

To learn more about view controllers, see View Controller Programming Guide for iOS.

Archiving

Archiving converts the objects in a program, along with those objects’ properties (attributes and relationships) into an archive that can be stored in the file system or transmitted between processes or across a network. The archive captures the object graph of a program as an architecture-independent stream of bytes that preserves the identity of the objects and the relationships among them. Because an object’s type is stored along with its data, an object decoded from a stream of bytes is normally instantiated using the same class of the object that was originally encoded.

Property List Serialization

A property list is a simple, structured serialization of an object graph that uses only objects of the following classes: NSDictionary, NSArray, NSString, NSData, NSDate, and NSNumber. These objects are commonly referred to as property list objects. Several Cocoa framework classes offer methods to serialize these property list objects and define special formats for the data stream recording the contents of the objects and their hierarchical relationship. The NSPropertyListSerialization class provides class methods that serialize property list objects to and from an XML format or an optimized binary format.

Core Data

Core Data is a Cocoa framework that defines an architecture for managing object graphs and making them persistent. It is this second capability—object persistence—that makes Core Data an adaptation of the Memento pattern.

In the Core Data architecture, a central object called the managed object context manages the various model objects in an application's object graph. Below the managed object context is the persistence stack for that object graph—a collection of framework objects that mediate between the model objects and external data stores, such as XML files or relational databases. The persistence-stack objects map between data in the store and corresponding objects in the managed data context and, when there are multiple data stores, present them to the managed object context as a single aggregate store.

The design of Core Data is also heavily influenced by the Model-View-Controller and object modeling patterns.

Notifications

The notification mechanism of Cocoa implements one-to-many broadcast of messages based on the Observer pattern. Objects in a program add themselves or other objects to a list of observers of one or more notifications, each of which is identified by a global string (the notification name). The object that wants to notify other objects—the observed object—creates a notification object and posts it to a notification center. The notification center determines the observers of a particular notification and sends the notification to them via a message. The methods invoked by the notification message must conform to a certain single-parameter signature. The parameter of the method is the notification object, which contains the notification name, the observed object, and a dictionary containing any supplemental information.

Posting a notification is a synchronous procedure. The posting object doesn't regain control until the notification center has broadcast the notification to all observers. For asynchronous behavior, you can put the notification in a notification queue; control returns immediately to the posting object and the notification center broadcasts the notification when it reaches the top of the queue.

Regular notifications—that is, those broadcast by the notification center—are intraprocess only. If you want to broadcast notifications to other processes, you can use the distributed notification center and its related API.

Key-Value Observing

Key-value observing is a mechanism that allows objects to be notified of changes to specific properties of other objects. It is based on the NSKeyValueObserving informal protocol. Observed properties can be simple attributes, to-one relationships, or to-many relationships. In the context of the Model-View-Controller pattern, key-value observing is especially important because it enables view objects to observe—via the controller layer—changes in model objects. It is thus an essential component of the Cocoa bindings technology (see Controller Classes in the AppKit Framework).

Cocoa provides a default “automatic” implementation of many NSKeyValueObserving methods that gives all complying objects a property-observing capability.

NSProxy

The NSProxy class defines the interface for objects that act as surrogates for other objects, even for objects that don’t yet exist. A proxy object typically forwards a message sent to it to the object that it represents, but it can also respond to the message by loading the represented object or transforming itself into it. Although NSProxy is an abstract class, it implements the NSObject protocol and other fundamental methods expected of a root object; it is, in fact, the root class of a hierarchy just as the NSObject class is.

Concrete subclasses of NSProxy can accomplish the stated goals of the Proxy pattern, such as lazy instantiation of expensive objects or acting as sentry objects for security. NSDistantObject, a concrete subclass of NSProxy in the Foundation framework, implements a remote proxy for transparent distributed messaging. NSDistantObject objects are part of the architecture for distributed objects. By acting as proxies for objects in other processes or threads, they help to enable communication between objects in those threads or processes.

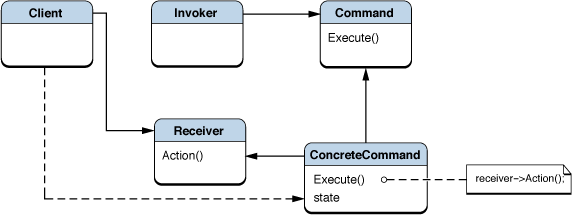

NSInvocation objects, which are an adaptation of the Command pattern, are also part of the distributed objects architecture (see Invocation Objects).

The Receptionist Design Pattern in Practice

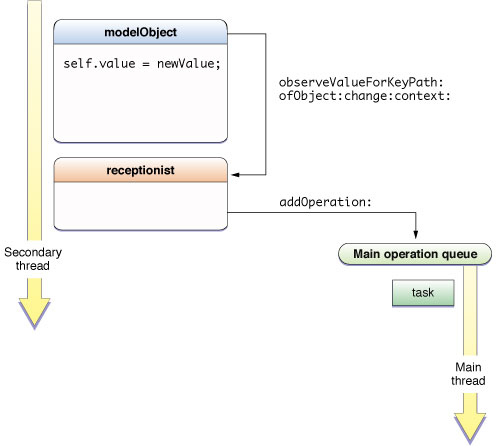

A KVO notification invokes the observeValueForKeyPath:ofObject:change:context: method implemented by an observer. If the change to the property occurs on a secondary thread, the observeValueForKeyPath:ofObject:change:context: code executes on that same thread. There the central object in this pattern, the receptionist, acts as a thread intermediary. As Figure 4-5 illustrates, a receptionist object is assigned as the observer of a model object’s property. The receptionist implements observeValueForKeyPath:ofObject:change:context: to redirect the notification received on a secondary thread to another execution context—the main operation queue, in this case. When the property changes, the receptionist receives a KVO notification. The receptionist immediately adds a block operation to the main operation queue; the block contains code—specified by the client—that updates the user interface appropriately.

You define a receptionist class so that it has the elements it needs to add itself as an observer of a property and then convert a KVO notification into an update task. Thus it must know what object it’s observing, the property of the object that it’s observing, what update task to execute, and what queue to execute it on. Listing 4-1 shows the initial declaration of the RCReceptionist class and its instance variables.

Listing 4-1  Declaring the receptionist class

@interface RCReceptionist : NSObject {

    id observedObject;

    NSString *observedKeyPath;

    RCTaskBlock task;

    NSOperationQueue *queue;

}

The RCTaskBlock instance variable is a block object of the following declared type:

typedef void (^RCTaskBlock)(NSString *keyPath, id object, NSDictionary *change);

These parameters are similar to those of the observeValueForKeyPath:ofObject:change:context: method. Next, the parameter class declares a single class factory method in which an RCTaskBlock object is a parameter:

+ (id)receptionistForKeyPath:(NSString *)path

        object:(id)obj

         queue:(NSOperationQueue *)queue

          task:(RCTaskBlock)task;

It implements this method to assign the passed-in value to instance variables of the created receptionist object and to add that object as an observer of the model object’s property, as shown in Listing 4-2.

Listing 4-2  The class factory method for creating a receptionist object

+ (id)receptionistForKeyPath:(NSString *)path object:(id)obj queue:(NSOperationQueue *)queue task:(RCTaskBlock)task {

    RCReceptionist *receptionist = [RCReceptionist new];

    receptionist->task = [task copy];

    receptionist->observedKeyPath = [path copy];

    receptionist->observedObject = [obj retain];

    receptionist->queue = [queue retain];

    [obj addObserver:receptionist forKeyPath:path

             options:NSKeyValueObservingOptionNew | NSKeyValueObservingOptionOld context:0];

    return [receptionist autorelease];

}

Note that the code copies the block object instead of retaining it. Because the block was probably created on the stack, it must be copied to the heap so it exists in memory when the KVO notification is delivered.

Finally, the parameter class implements the observeValueForKeyPath:ofObject:change:context: method. The implementation (see Listing 4-3) is simple.

Listing 4-3  Handling the KVO notification

- (void)observeValueForKeyPath:(NSString *)keyPath ofObject:(id)object

        change:(NSDictionary *)change context:(void *)context {

    [queue addOperationWithBlock:^{

        task(keyPath, object, change);

    }];

}

This code simply enqueues the task onto the given operation queue, passing the task block the observed object, the key path for the changed property, and the dictionary containing the new value. The task is encapsulated in an NSBlockOperation object that executes the task on the queue.

The client object supplies the block code that updates the user interface when it creates a receptionist object, as shown in Listing 4-4. Note that when it creates the receptionist object, the client passes in the operation queue on which the block is to be executed, in this case the main operation queue.

Listing 4-4  Creating a receptionist object

        RCReceptionist *receptionist = [RCReceptionist receptionistForKeyPath:@"value" object:model queue:mainQueue task:^(NSString *keyPath, id object, NSDictionary *change) {

            NSView *viewForModel = [modelToViewMap objectForKey:model];

            NSColor *newColor = [change objectForKey:NSKeyValueChangeNewKey];

            [[[viewForModel subviews] objectAtIndex:0] setFillColor:newColor];

        }];

Framework Classes

Several Cocoa framework classes are singletons. They include NSFileManager, NSWorkspace, NSApplication, and, in UIKit, UIApplication. A process is limited to one instance of these classes. When a client asks the class for an instance, it gets a shared instance, which is lazily created upon the first request.

Overridden Framework Methods

The Template Method pattern is a fundamental design of Cocoa, and indeed of object-oriented frameworks in general. The pattern in Cocoa lets custom components of a program hook themselves into an algorithm, but the framework components determine when and how they are needed. The programmatic interfaces of Cocoa classes often include methods that are meant to be overridden by subclasses. At runtime, the framework invokes these so-called generic methods at certain points in the task it is carrying out. The generic methods provide a structure for custom code to contribute program-specific behavior and data to the task being executed and coordinated by framework classes.

The Document Architecture in OS X

The document architecture defined by the AppKit framework is a particular—and important—instance of the general design of overridden framework methods as an adaptation of the Template Method pattern. Cocoa applications that can create and manage multiple documents, each in its own window, are almost always based on the document architecture. In this architecture there are cooperating objects of three framework classes: NSDocument, NSWindowController, and NSDocumentController. NSDocument objects manage the model objects that represent the data of a document; upon user requests, they write that data to files and reload the data, recreating the model objects with it. NSWindowController objects manage the user interface of particular documents. The NSDocumentController object of a document-based application tracks and manages all open documents and otherwise coordinates the activities of the application. At runtime, each of these objects receives messages from AppKit requesting it to perform specific operations. The application developer must override many of the methods invoked by these messages to add application-specific behavior.

The design of the document architecture of Cocoa is also heavily influenced by the Model-View-Controller pattern.

Model Objects Encapsulate Data and Basic Behaviors

Model objects represent special knowledge and expertise. They hold an application’s data and define the logic that manipulates that data. A well-designed MVC application has all its important data encapsulated in model objects. Any data that is part of the persistent state of the application (whether that persistent state is stored in files or databases) should reside in the model objects once the data is loaded into the application. Because they represent knowledge and expertise related to a specific problem domain, they tend to be reusable.

Ideally, a model object has no explicit connection to the user interface used to present and edit it. For example, if you have a model object that represents a person (say you are writing an address book), you might want to store a birthdate. That’s a good thing to store in your Person model object. However, storing a date format string or other information on how that date is to be presented is probably better off somewhere else.

In practice, this separation is not always the best thing, and there is some room for flexibility here, but in general a model object should not be concerned with interface and presentation issues. One example where a bit of an exception is reasonable is a drawing application that has model objects that represent the graphics displayed. It makes sense for the graphic objects to know how to draw themselves because the main reason for their existence is to define a visual thing. But even in this case, the graphic objects should not rely on living in a particular view or any view at all, and they should not be in charge of knowing when to draw themselves. They should be asked to draw themselves by the view object that wants to present them.

View Objects Present Information to the User

A view object knows how to display, and might allow users to edit, the data from the application’s model. The view should not be responsible for storing the data it is displaying. (This does not mean the view never actually stores data it’s displaying, of course. A view can cache data or do similar tricks for performance reasons). A view object can be in charge of displaying just one part of a model object, or a whole model object, or even many different model objects. Views come in many different varieties.

View objects tend to be reusable and configurable, and they provide consistency between applications. In Cocoa, the AppKit framework defines a large number of view objects and provides many of them in the Interface Builder library. By reusing the AppKit’s view objects, such as NSButton objects, you guarantee that buttons in your application behave just like buttons in any other Cocoa application, assuring a high level of consistency in appearance and behavior across applications.

A view should ensure it is displaying the model correctly. Consequently, it usually needs to know about changes to the model. Because model objects should not be tied to specific view objects, they need a generic way of indicating that they have changed.

Controller Objects Tie the Model to the View

A controller object acts as the intermediary between the application's view objects and its model objects. Controllers are often in charge of making sure the views have access to the model objects they need to display and act as the conduit through which views learn about changes to the model. Controller objects can also perform set-up and coordinating tasks for an application and manage the life cycles of other objects.

In a typical Cocoa MVC design, when users enter a value or indicate a choice through a view object, that value or choice is communicated to a controller object. The controller object might interpret the user input in some application-specific way and then either may tell a model object what to do with this input—for example, "add a new value" or "delete the current record"—or it may have the model object reflect a changed value in one of its properties. Based on this same user input, some controller objects might also tell a view object to change an aspect of its appearance or behavior, such as telling a button to disable itself. Conversely, when a model object changes—say, a new data source is accessed—the model object usually communicates that change to a controller object, which then requests one or more view objects to update themselves accordingly.

Controller objects can be either reusable or nonreusable, depending on their general type. Types of Cocoa Controller Objects describes the different types of controller objects in Cocoa.

Combining Roles

One can merge the MVC roles played by an object, making an object, for example, fulfill both the controller and view roles—in which case, it would be called a view controller. In the same way, you can also have model-controller objects. For some applications, combining roles like this is an acceptable design.

A model controller is a controller that concerns itself mostly with the model layer. It “owns” the model; its primary responsibilities are to manage the model and communicate with view objects. Action methods that apply to the model as a whole are typically implemented in a model controller. The document architecture provides a number of these methods for you; for example, an NSDocument object (which is a central part of the document architecture) automatically handles action methods related to saving files.

A view controller is a controller that concerns itself mostly with the view layer. It “owns” the interface (the views); its primary responsibilities are to manage the interface and communicate with the model. Action methods concerned with data displayed in a view are typically implemented in a view controller. An NSWindowController object (also part of the document architecture) is an example of a view controller.

Design Guidelines for MVC Applications offers some design advice concerning objects with merged MVC roles.

Relationship Cardinality and Ownership

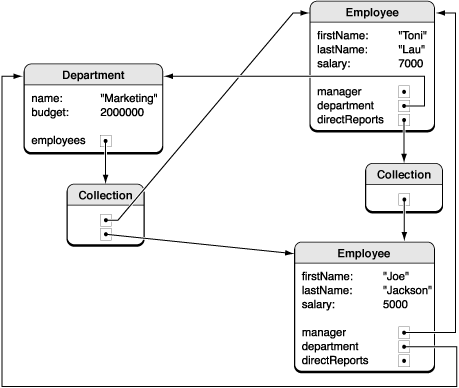

Every relationship has a cardinality; the cardinality tells you how many destination objects can (potentially) resolve the relationship. If the destination object is a single object, then the relationship is called a to-one relationship. If there may be more than one object in the destination, then the relationship is called a to-many relationship.

Relationships can be mandatory or optional. A mandatory relationship is one where the destination is required—for example, every employee must be associated with a department. An optional relationship is, as the name suggests, optional—for example, not every employee has direct reports. So the directReports relationship depicted in Figure 4-12 is optional.

It is also possible to specify a range for the cardinality. An optional to-one relationship has a range 0-1. An employee may have any number of direct reports, or a range that specifies a minimum and a maximum, for example, 0-15, which also illustrates an optional to-many relationship.

Figure 4-12 illustrates the cardinalities in the employee management application. The relationship between an Employee object and a Department object is a mandatory to-one relationship—an employee must belong to one, and only one, department. The relationship between a Department and its Employee objects is an optional to-many relationship (represented by a “*”). The relationship between an employee and a manager is an optional to-one relationship (denoted by the range 0-1)—top-ranking employees do not have managers.

Note also that destination objects of relationships are sometimes owned and sometimes shared.

Keys

You specify properties of a model using a simple key, often a string. The corresponding view or controller uses the key to look up the corresponding attribute value. This design enforces the notion that the attribute itself doesn’t necessarily contain the data—the value can be indirectly obtained or derived.

Key-value coding is used to perform this lookup; it is a mechanism for accessing an object’s properties indirectly and, in certain contexts, automatically. Key-value coding works by using the names of the object’s properties—typically its instance variables or accessor methods—as keys to access the values of those properties.

For example, you might obtain the name of a Department object using a name key. If the Department object either has an instance variable or a method called name then a value for the key can be returned (if it doesn’t have either, an error is returned). Similarly, you might obtain Employee attributes using the firstName, lastName, and salary keys.

Values

All values for a particular attribute of a given entity are of the same data type. The data type of an attribute is specified in the declaration of its corresponding instance variable or in the return value of its accessor method. For example, the data type of the Department object name attribute may be an NSString object in Objective-C.

Note that key-value coding returns only object values. If the return type or the data type for the specific accessor method or instance variable used to supply the value for a specified key is not an object, then an NSNumber or NSValue object is created for that value and returned in its place. If the name attribute of Department is of type NSString, then, using key-value coding, the value returned for the name key of a Department object is an NSString object. If the budget attribute of Department is of type float, then, using key-value coding, the value returned for the budget key of a Department object is an NSNumber object.

Similarly, when you set a value using key-value coding, if the data type required by the appropriate accessor or instance variable for the specified key is not an object, then the value is extracted from the passed object using the appropriate -typeValue method.

The value of a to-one relationship is simply the destination object of that relationship. For example, the value of the department property of an Employee object is a Department object. The value of a to-many relationship is the collection object. The collection can be a set or an array. If you use Core Data it is a set; otherwise, it is typically an array) that contains the destination objects of that relationship. For example, the value of the employees property of an Department object is a collection containing Employee objects. Figure 4-13 shows an example object graph for the employee management application.

Key Paths

A key path is a string of dot-separated keys that specify a sequence of object properties to traverse. The property of the first key is determined by, and each subsequent key is evaluated relative to, the previous property. Key paths allow you to specify the properties of related objects in a way that is independent of the model implementation. Using key paths you can specify the path through an object graph, of whatever depth, to a specific attribute of a related object.

The key-value coding mechanism implements the lookup of a value given a key path similar to key-value pairs. For example, in the employee-management application you might access the name of a Department via an Employee object using the department.name key path where department is a relationship of Employee and name is an attribute of Department. Key paths are useful if you want to display an attribute of a destination entity. For example, the employee table view in Figure 4-14 is configured to display the name of the employee’s department object, not the department object itself. Using Cocoa bindings, the value of the Department column is bound to department.name of the Employee objects in the displayed array.

Not every relationship in a key path necessarily has a value. For example, the manager relationship can be nil if the employee is the CEO. In this case, the key-value coding mechanism does not break—it simply stops traversing the path and returns an appropriate value, such as nil.
