Custom floating bottom right button

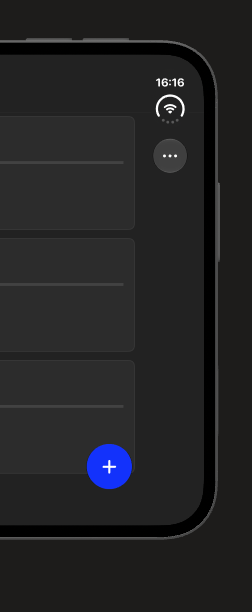

I have a floating bottom right button in my app (similar to twitter/x's blue compose button). I have no tab bar. When moving to the duo, this floating button now appears to the left of an empty tabbar/toolbar area on the right of the device. Ideally I want it to be inside the new tabbar/toolbar area when on the duo, as otherwise its wasted space.

Is there anything new/inbuilt that I can leverage to manage this? Can I put my button into some container somewhere so that its the bottom right of the screen on an iPhone and automatically move to the toolbar area on duo?

Something like a single item, right aligned, tabbar would be a great option. But the new liquid glass tabbar comes with too many restrictions on colors/styling

I'm trying to find a way to avoid having logic like this in the app, as device specific logic becomes a maintenance issue int he future:

if device == duo {
    // create toolbar button
} else {
    // create button button and appen
}

d to window

Answered by Technology Evangelist in 906682022

Hi @simonmcl,

This can be achieved with a toolbar item with a .borderedProminent buttonStyle in a bottom toolbar.

This would also work on all other iPhone devices, not just iPhone Duo.

Hi @simonmcl,

This can be achieved with a toolbar item with a .borderedProminent buttonStyle in a bottom toolbar.

This would also work on all other iPhone devices, not just iPhone Duo.

@Technology Evangelist apologies for the long delay, the forum doesn't auto watch your own questions so I didn't get alerted to the answer.

This partially works, but doesn't deliver what i'm looking for when using a UISplitViewController. On an iPhone I want it to hover over the master, and the detail. I can live with it swiping in/out if duplicate it and attach it to each viewController, but then I have to listen for events for when the SplitView is showing both at the same time and hide one of them

There seems to be no way to add it to the SplitViewController itself is that correct?

Hello @simonmcl,

That is correct. The Split View likes to be as close to the root as possible.

Your approach to use the delegate to add and remove the bar button would be the best approach.

Thank you for the update!
