The AccessoryAnchor transform does not match any of the Accessory.LocationName options.

Question

Created 19h

Replies 1

Boosts 0

Participants 2

I am using AccessoryTrackingProvider from ARKit to get the transform of the PSVR2 controller via originFromAnchorTransform of the AccessoryAnchor. I also am trying to use AnchorEntity on the controller using RealityKit

However, none of the three options for Accessory.LocationName, which should be used to define the AnchorEntity target, seem to match the position on the controller which is being sent from ARKit.

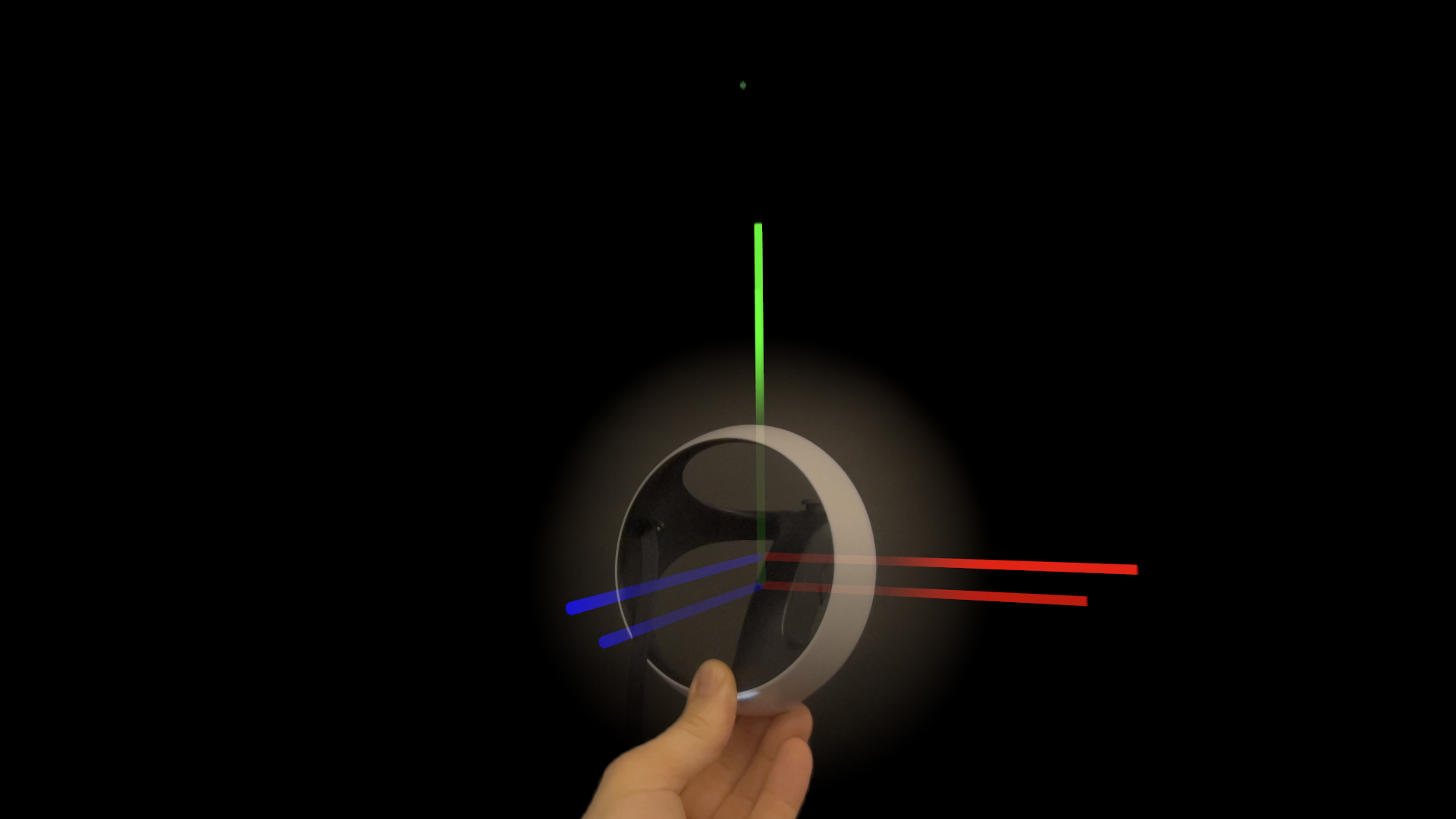

The picture attached is showing two transforms:

RealityKit - using .gripSurface to define the AnchoringComponent.Target.accesssory location.
ARKit - using originFromAnchorTransform for AccessoryTrackingProvider.

They are not aligned at the same point.

As for the other options of Accessory.LocationName, using .aim is located at the tip of the controller and .grip is the same position as .gripSurface but with a different orientation.

I am wondering why there is not an option for Accessory.LocationName that actually matches the transform captured by ARKit?

Boost

Answer 1

Vision Pro Engineer OP

Apple

7h

I am wondering why there is not an option for Accessory.LocationName that actually matches the transform captured by ARKit?

The location of an accessory anchor’s origin is somewhat arbitrary / might not correspond to any particular noteworthy location on the physical controller. That is why predefined locations like "aim" and "gripSurface" on accessories were added to the API.

Do you have a use case where, using RE's AnchorEntity, you need to attach virtual content to the accessory anchor's origin?

0
