Xcode - Trying to add Self Signed Certificate (Not Verified)

Question

Alexandre_NT OP

Created Jul ’22

Replies 7

Boosts 0

Views 2.6k

Participants 2

Hello everyone,

I'm new as iOS developper, and I'm facing a WebSocket error due to my certificate...

Error Name : errSSLXCertChainInvalid Error Code : -9807

I have a server on a device, on which I want to start a secure WebSocket communication (wss://10.0.1.1:8080/). The server has my certificate .pem and works very well with my android App. When I choose Debug in Xcode buildConfiguration, there is no problem for the WebSocket communication (I think Debug doesn't check certificate during the Handshake process). But when I choose Release, I have the error because I didn't add the certificate on the iOS App. I don't really know how to add it properly...

But, I also tried to disable HTTPS checks (ATS) :

<key>NSAppTransportSecurity</key>
<dict>
    <key>NSAllowsArbitraryLoads</key>
    <true/>
</dict>

but that din't work either.

If anyone can help me?

Thank you

Boost

Answer 1

DTS Engineer OP

Apple

Jul ’22

What API are you using for WebSocket? NSURLSession? Network framework? Or perhaps you’re doing this from within Safari? Or a web view?

Share and Enjoy
—
Quinn “The Eskimo!” @ Developer Technical Support @ Apple
let myEmail = "eskimo" + "1" + "@" + "apple.com"

0

Answer 2

Alexandre_NT OP

Jul ’22

Hi,

I'm using the WebSocket from react native framework => https://reactnative.dev/docs/network#websocket-support I don't really know if that call NSURLSession or Network framework ...

0

Answer 3

Alexandre_NT OP

Jul ’22

To better understand, why when I choose "Debug" build configuration, ssl cert verification seems to be disabled => The connection works

But when I choose "Release" build configuration, ssl cert verification seems to be enabled => The connection doesn't work

Can you tell me how to disable ssl cert verification when I choose "Release" to do my first test?

Thank you

0

Answer 4

DTS Engineer OP

Apple

Jul ’22

Can you tell me how to disable ssl cert verification when I choose "Release" to do my first test?

Apple’s WebSocket APIs [1] do not change behaviour based on the build configuration. If that’s what you’re seeing, that’s coming from the third-party library you’re using. That’s not something I can help you with. You have a couple of choices here:

Dig into this WebSocket library to the point where you get to an Apple API, and we can discuss its behaviour.
Escalate this with the support challenge for the third-party library you’re using.

Share and Enjoy
—
Quinn “The Eskimo!” @ Developer Technical Support @ Apple
let myEmail = "eskimo" + "1" + "@" + "apple.com"

[1] It’s not just WebSockets here. None of our TLS infrastructure behaviour based on the build configuration.

0

Answer 5

Alexandre_NT OP

Jul ’22

I understand thank you for your reply :)

And is there a way to programmatically implement (in objective-c) this below behavior ?

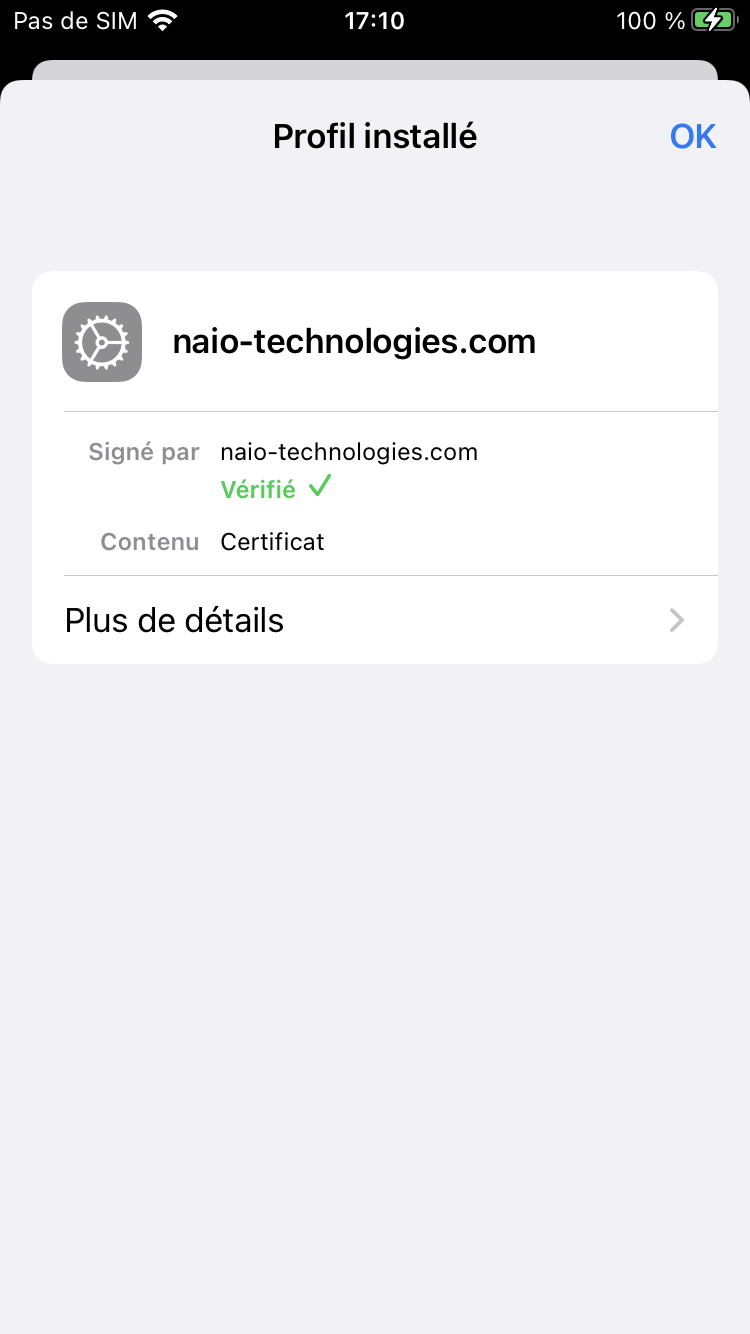

Because when the certificate is trusted in the settings every things works well.

I can write some objective-c code here :

Capture d’écran 2022-07-22 à 17.07.25.png

Thanks

0

Answer 6

DTS Engineer OP

Apple

Jul ’22

And is there a way to programmatically implement (in objective-c) this below behavior ?

You mean installing a trusted root? No. Apple specifically makes this hard because it’s a massive extension of trust.

Earlier you wrote:

I have a server on a device, on which I want to start a secure WebSocket communication

It sounds like you’re creating a network-enabled accessory of some form. If so, check out my TLS For Accessory Developers post.

The techniques described there assume that you can override TLS server trust evaluation. Most Apple APIs let you do this. This includes the APIs that typically back WebSocket implementations: NSURLSession, Network framework, and CFSocketStream. How you do that, however, depends on the specific API you’re using, which brings us back to the suggestions in my previous response.

Share and Enjoy
—
Quinn “The Eskimo!” @ Developer Technical Support @ Apple
let myEmail = "eskimo" + "1" + "@" + "apple.com"

0

Answer 7

Alexandre_NT OP

Jul ’22

Hello,

First of all, thank you so much for helping me :)

So, I finally found where the WebSocket was implemented :

https://github.com/facebook/react-native/blob/main/Libraries/WebSocket/RCTSRWebSocket.m

I found line 513 how this lib Allows connection to any root cert and why only in debug mode.

Now I don't really understand if I have to create my own function to override and add my certificateCA.cer or if there is an easier way to allow my certificate to be added ?

Thanks

0
