ValueError: Shape of the RGB/BGR image output, 'colorOutput', must be of kind (1, 3, H, W), i.e., first two dimensions must be (1, 3), instead they are: (1, 2)

I specifically give the model the shape of (1, 3, 1024, 1024), but for some reason, CoreML thinks it's 2 channels instead of 3. The pytorch model is based on this - LINK

The "local.pth" model to be specific. My CoreML conversion code is attached below.

#from networks.drn_seg import DRNSeg
import coremltools as ct
import coremltools.proto.FeatureTypes_pb2 as ft
import io
from PIL import Image
from torchvision import transforms
import math
import torch
import torch.nn as nn
from networks.drn import drn_c_26
import torchvision
from torchvision.io import read_image

def fill_up_weights(up):
    w = up.weight.data
    f = math.ceil(w.size(2) / 2)
    c = (2 * f - 1 - f % 2) / (2. * f)
    for i in range(w.size(2)):
        for j in range(w.size(3)):
            w[0, 0, i, j] = \
                (1 - math.fabs(i / f - c)) * (1 - math.fabs(j / f - c))
    for c in range(1, w.size(0)):
        w[c, 0, :, :] = w[0, 0, :, :]


class DRNSeg(nn.Module):
    def __init__(self):
        super(DRNSeg, self).__init__()
        classes=2
        pretrained_drn=None

        pretrained_model=None
        use_torch_up=False

        model = drn_c_26(pretrained=pretrained_drn)
        self.base = nn.Sequential(*list(model.children())[:-2])
        if pretrained_model:
            self.load_pretrained(pretrained_model)

        self.seg = nn.Conv2d(model.out_dim, classes,
                             kernel_size=1, bias=True)

        m = self.seg
        n = m.kernel_size[0] * m.kernel_size[1] * m.out_channels
        m.weight.data.normal_(0, math.sqrt(2. / n))
        m.bias.data.zero_()

        if use_torch_up:
            self.up = nn.UpsamplingBilinear2d(scale_factor=8)
        else:
            up = nn.ConvTranspose2d(classes, classes, 16, stride=8, padding=4,
                                    output_padding=0, groups=classes,
                                    bias=False)
            fill_up_weights(up)
            up.weight.requires_grad = False
            self.up = up

    def forward(self, x):
        x = self.base(x)
        x = self.seg(x)
        y = self.up(x)
        return y

    def optim_parameters(self, memo=None):
        for param in self.base.parameters():
            yield param
        for param in self.seg.parameters():
            yield param

    def load_pretrained(self, pretrained_model):
        print("loading the pretrained drn model from %s" % pretrained_model)
        state_dict = torch.load(pretrained_model, map_location='cpu')
        if hasattr(state_dict, '_metadata'):
            del state_dict._metadata

        # filter out unnecessary keys
        pretrained_dict = state_dict['model']
        pretrained_dict = {k[5:]: v for k, v in pretrained_dict.items() if k.split('.')[0] == 'base'}

        # load the pretrained state dict
        self.base.load_state_dict(pretrained_dict)


#img = read_image('test.jpg')


model_path = ("modelphotoshop.pth")

device = 'cpu'

model_flow = DRNSeg()
model_flow.load_state_dict(torch.load(model_path, map_location=device))
model_flow.to(device)
model_flow.eval()


example_input = torch.randn([1,3,1024,1024])
traced_model = torch.jit.trace(model_flow, example_input)
traced_model.save("modelphotoshop.pt")

shape = (1,3, 1024, 1024)



mlmodel = ct.convert(traced_model,
                          convert_to="mlprogram",
                          inputs=[ct.ImageType(name="colorImage",
                                               shape=shape,
                                               color_layout=ct.colorlayout.RGB,)],
                          outputs=[ct.ImageType(name="colorOutput",
                                                color_layout=ct.colorlayout.RGB,)],
                          )


mlmodel.save("Model.mlmodel")

Replies

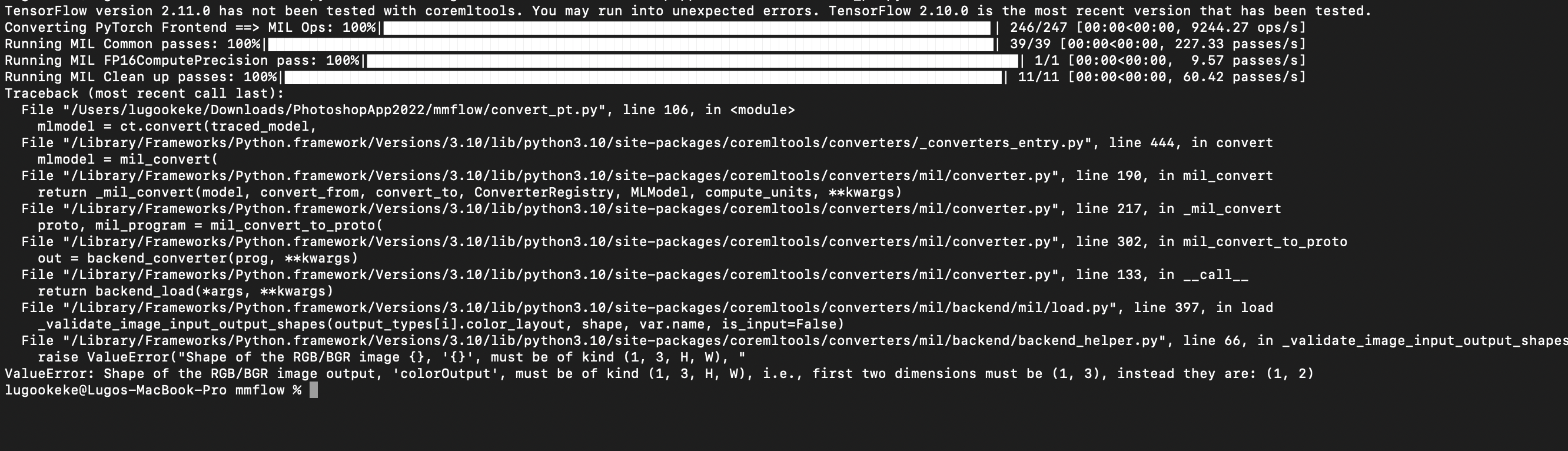

forgot to attach an image of the error in the original post.

Here is a Google-Collab of the project, produces the exact same error - https://colab.research.google.com/drive/1htafitlxUcChgQD2Xw950bPcduFtL-bQ?usp=sharing
