How to enable code coverage data in xCode cloud?

Hello,

I'm trying to visualize code coverage data in our project but I've faced issues getting the coverage data from the .xcresult bundle produced by xCode Cloud.

On my local machine, I'm using xccov view to preview coverage data and everything looks fine:

/Users/d.kuznetsov/Git/***/***.swift:
    1: *
    2: *
    3: *
    4: *
    5: *
    6: *
    7: *
    8: *
    9: *
   10: *
   11: *
   12: *
   13: *
   14: *
   15: *
   16: 4
   17: *
   18: *
   19: *
   20: *
   21: *
   22: *
   23: *
   24: *
   25: *
   26: *
   27: *
   28: *
   29: *
   30: *
   31: 3
   32: 3
   33: 3
   34: 3
   35: *
   36: 3
   37: 3 [
(56, 0, 0)
]
   38: 0
   39: 0
   40: 3 [
(1, 9, 0)
]
   41: 3
   42: 3
   43: 3
   44: 3
   45: *
   46: 3
   47: 3
   48: 3
   49: 3
   50: *

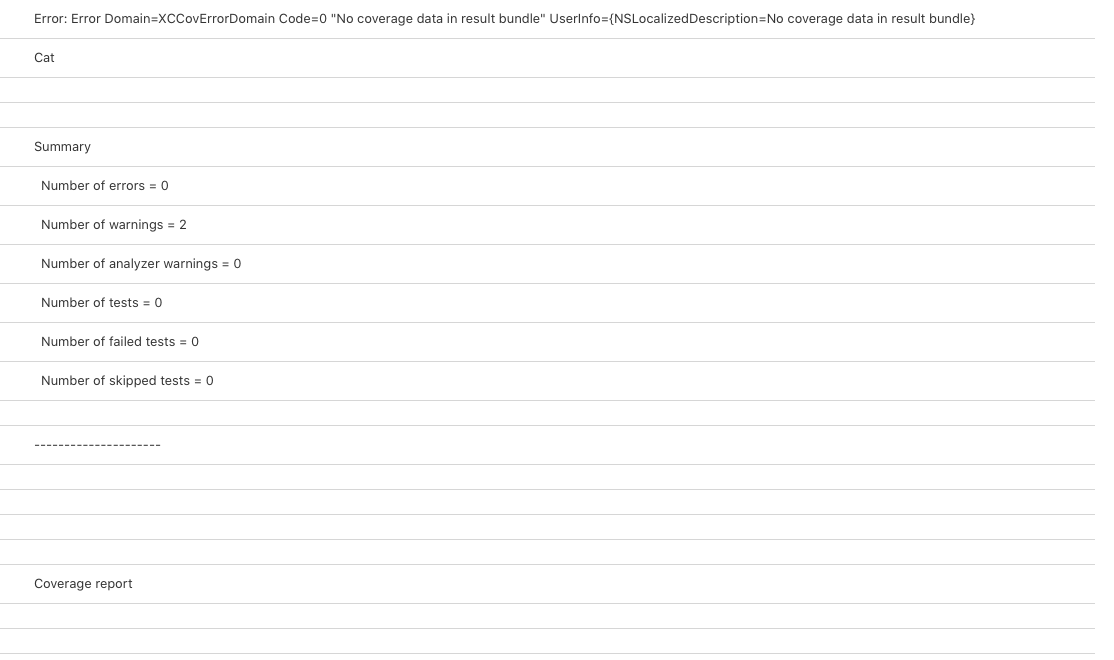

But when I tried to use the same approach in ci_post_xcodebuild.sh I couldn't see the coverage data:

#!/bin/sh

xcrun xccov view --archive $CI_RESULT_BUNDLE_PATH

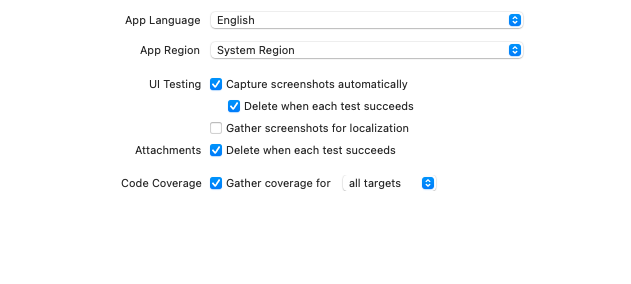

Am I missing something? The schema settings are the same for both Cloud and local machine and code coverage gathering setting is enabled.

Replies

Hi did you ever figure this out, I just stumbled upon the same problem?

This might help https://developer.apple.com/forums/thread/733624
